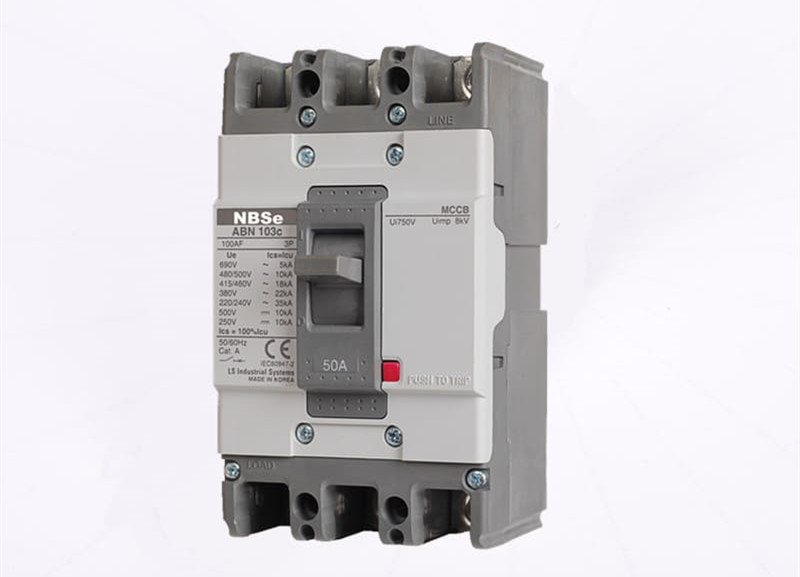

IEC60947-2 Molded Case Circuit Breaker

Basic Information
Place of Origin: CHINA
Brand Name: NBSe
Certification: CE,ISO9000
Model Number: ABN103c
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Export Carton
Delivery Time: 10-20day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000pcs per month
Detail Information
Material: ABS, COPPER Poles Number: 3 Pole
Rated Frequency: 50/60Hz Standard: IEC60947-2
Rated Current: 15,20,30,40,50A Type: Moulded Case,Magnetic
Product Name: Mccb Moulded Case Circuit Breaker Breaking Capacity: 25-50kA
Installation: Fixed And Plug-in Quality: GOOD
High Light:

IEC60947-2 miniature circuit breaker

,

ABN53c circuit breaker molded case


Product Description

ABN53c MCCB Magnetic Type IEC60947-2 Standard

Description:

ABN series MCCB is NEWST TYPE circuit breaker. It is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A. Its a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor. It can also be attached to install the accessories which have protection function for avoiding loss-voltage, undervoltage. The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.

Applications:

AF 50AF 100AF 250AF
Type N-type N-type N-type
Type and Pole 3-Pole ABN53C ABN103C ABN203C
Rated current,In A 15.20.30.40.50 15.20.30.40.50.60.75.100 100.125.150.175.200.225.250
Rated operational voltage,Ue AC(V) 690 690 690
DC(V) 500 500 500
Rated insulation voltage,Ui V 750 750 750
Rated impulse withstand voltage,Uimp kV 8 8 8
Rated short-circuit breaking capacity(Icu) kA (Sym),KSC8321,IEC 60947-2
AC 690V 2.5 5 8
480/500V 7.5 10 18
415/460V 14 18 26
380V 18 22 30
220/250V 30 35 65
DC 500V(3P) 5 10 10
250V(2P) 5 10 10
Ics=%xIcu 100 100 100
Dimensions(mm) WxHxD 75x130x60mm 75x130x60mm 105x165x60mm

IEC60947-2 Molded Case Circuit Breaker 0

a 75 75 105
b 130 130 165
c1 60 60 60
c2 64 64 64
d 82 82 87
Weight,kg Standard 0.7 0.7 1.2





IEC60947-2 Molded Case Circuit Breaker 1
IEC60947-2 Molded Case Circuit Breaker 2
IEC60947-2 Molded Case Circuit Breaker 3
IEC60947-2 Molded Case Circuit Breaker 4
