| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NBSe/OEM |
| Certification: | CE,CCC |
| Model Number: | DZ47-63 |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | 240pcs/ctn |
| Delivery Time: | 10-20days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 400,000pcs per month |
| Type: | Lighting "C"or Motor"D" | Poles Number: | 1P,2P,3P,4P |
|---|---|---|---|
| Material: | PA66 Fire-Proof, Copper, Silver | Rated Voltage: | 220V/440V |
| Breaking Capacity: | 3kA, 4.5kA | Circuit Breaker Stock: | Available |
| Standard: | IEC/EN60898 | Circuit Breaker Amps: | 6A Up To 63A |
| Mechanical Life: | More Than 16000 Operations | Color: | White Or OEM |
| High Light: | Mini Miniature Circuit Breaker,4.5kA Miniature Circuit Breaker,Copper Fire Proof Micro Circuit Breaker |
||

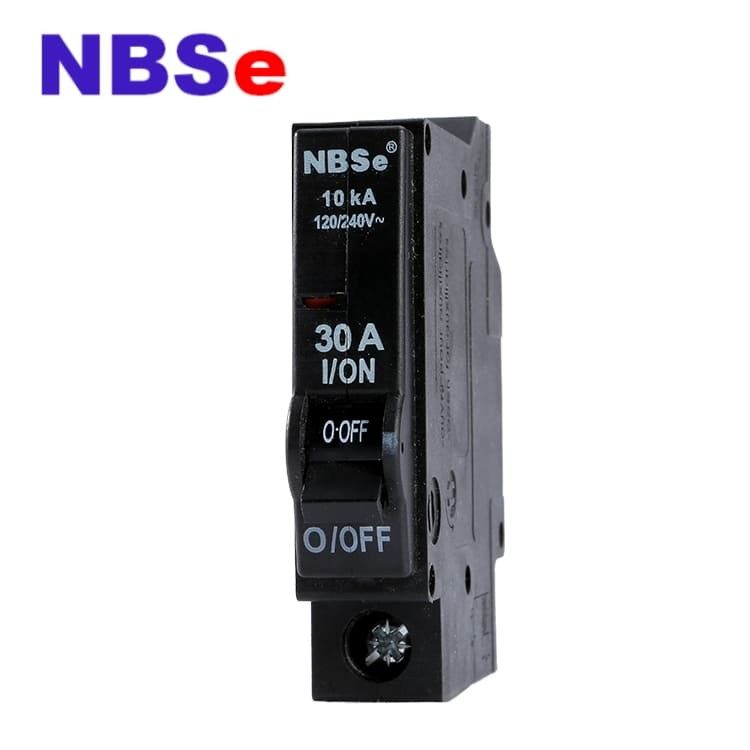

1P 2P 3P 4P L7 MCB 10KA Electrical Micro Mini Miniature Circuit Breaker With CE ISO CCC
Mcb is applicable to electric circuits with rated voltage 230/400V AC, frequency 50/60Hz and rated current up to 125Amp.
The product provides protection against overload and short circuits to electric circuits and equipment in household and commercial installation. MCB is also used as a non-frequent changeover of electric circuits.
Features
1. Protection against both overload and short circuit
2. High short-circuit capacity
3. Contact position indication
4. Applicable to terminal and pin/fork type busbar connection
5. Easy mounting onto 35mm DIN rail
Circuit Breaker Stock available. Circuit Breaker amps
2. Features
3. Usage: Circuit Breaker Types
4. Main technical data
|
Pole No:
|
1,2,3,4
|
|
Rated voltage:
|
AC 230/400V
|
|
Rated current(A):
|
1,2,3,4,6,10,13,16,20,25,32,40,50,63
|
|
Tripping curve:
|
B,C,D
|
|
Rated short-circuit capacity(lcn):
|
6KA,10KA
|
|
Rated frequency:
|
50/60Hz
|
|
Energy limiting class:
|
3
|
|
Rated impulse withstand voltage:
|
6.2kV
|
|
Electro-mechanical endurance:
|
≥ 6000
|
|
Contact position indication
|
|
|
Connection terminal:
|
Screw terminal / Pillar terminal with calmp
|
|
Connection capacity:
|
Rigid conductor up to 25mm²
|
|
Fastening torque:
|
2.0Nm
|
|
Installation:
|
On symmetrical DIN rail 35mm / Panel mounting
|
4. Product show
Material: unti-fire Nylon PA66, Copper and silver point.
5. The over-current protection property
| Ambient Temperature | Initial Status | Test Current | Expected Result | Expected Result | Note |
| 30±2oC | Cold position | 1.13In | t≥1h | Non-release | - |
| Carried out immediatelyafter previous test | 1.45In | t < 1h | Release | - | |
| Cold position | 2.55In | 1s < t< 60s(In≥32A) | Release | Current smoothly rises tospecified value within 5s | |
| Cold position | 2.55In | 1s < t < 120s(In>32A) | Release | ||
| -5~+40oC | Cold position | 3In | t≥0.1s | Non-release | Type B |
| Cold position | 5In | t < 0.1s | Release | Type B | |
| Cold position | 5In | t≥0.1s | Non-release | Type C | |
| Cold position | 10In | t < 0.1s | Release | Type C | |
| Cold position | 10In | t≥0.1s | Non-release | Type D | |
| Cold position | 20In | t < 0.1s | Release | Type D |
