RCCB Automatic Micro Circuit Breaker Low Voltage 10KA Electronic Types

Basic Information
Place of Origin: CHINA
Brand Name: NBSe/OEM
Certification: CE,CCC
Model Number: DZ47-63
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: 240pcs/ctn
Delivery Time: 10-20days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 400,000pcs per month
Detail Information
Product Name: Residual Current Circuit Breaker RCCB Rated Frequency: 50/60 Hz
Standard: IEC/EN60898 Rated Voltage: 230/400V
Mechanical Life: >8000times Breaking Capacity: 6kA
Connection: From Top To Bottom Terminal: Cable / Pin-type Busbar
High Light:

RCCB Micro Circuit Breaker

,

10KA Micro Electronic Circuit Breakers

,

Automatic Micro Circuit Breaker


Product Description

RCCB Automatic Low Voltage 10KA Micro Electronic Circuit Breakers Types

  • Our products have the guarantee period of 36 calendar months,that is a high quality and reliability;
  • Our products have an excellent ratio between price and quality ,you can possess them by competitive price and high quality
  • The fast and flexible production form aim at the customer require;
  • The deliveries exactly in accordance with customer orders
  • The fast transportation.
  • Adopt electromagnetic style release , can play a leak electricity and electric shock protecting role while breaking in zero Line.

Construction Features:

  • Measuring component and buckling component of products is located between entering line end and entrance line end ;
  • Movement characteristics of products can not be changed with an outside mechanical tool ;
  • The operating organization has the free function to take off and buckle;
  • Operate part can not be taken down from the shell outer of products, the shell can not influence the operating organization to work , and the accessory group which replaces the feelers pressure, should guarantee the feelers pressure does not change while running.


Normal operation and mounting requirement

  • Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.
  • Altitude above sea level less than 2000 m.
  • Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
  • Installation class II or III.
  • Pollution class 2.
  • Installation method DIN Rail mounting type.
  • The external magnetism shall not be more than 5 times of terrestrial one.
  • Product shall be installed at the place where there shall be no severe impact and vibration.
  • Product shall be vertically mounted onto standard Din rail 35mm.



Poles 1,2,3,4
Electrical Life (t) 6000
Rated Voltage Ue (V) 230/400
Insulation Voltage Ui (V) 500
Rated frequency (Hz) 50/60
Rated breaking capacity (A) 4500,6000
Terminal connection type Cable / Pin-type busbar
Connection From top and bottom
Rated Current In (A) 1,2,4,6,10,16,20,25,32,40,50,63
Product Keywords 1 amp mcb circuit breaker,1 amp dc mcb,1 amp circuit breaker

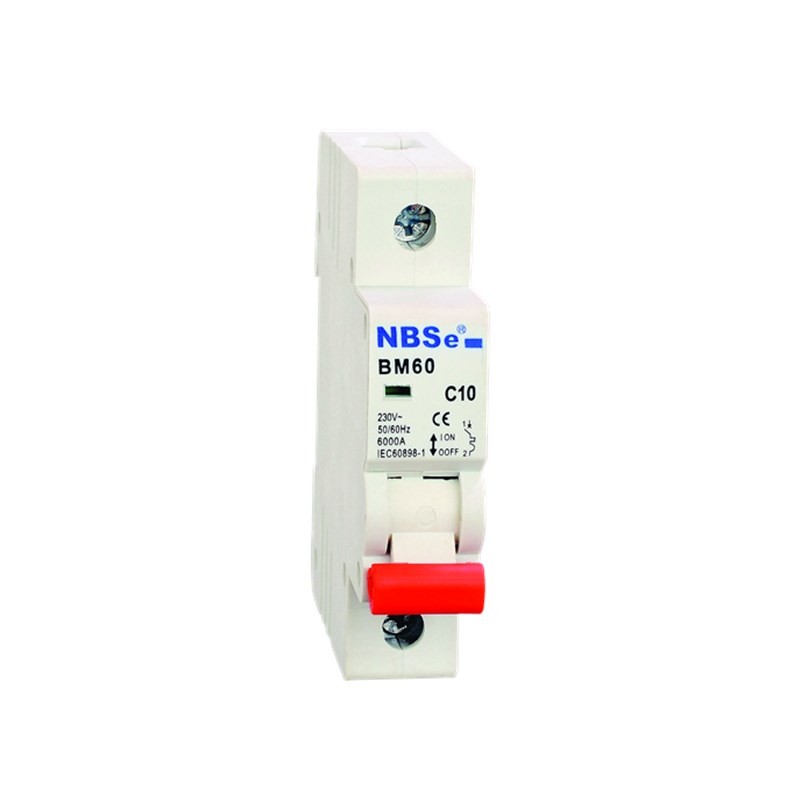

CE Approved 1pole C10 6kA Safety Mcb Sp Dp Miniature Circuit Breaker ​



Type Rated Current(A) Pole No. Voltage(V) Breaking Capacity(A)
B 1,2,3,4,6,10,16,20,25,32,40A 1 230/415 6000
2,3,4 400
50,63A 1 230/415 4500
2,3,4 400
C 1,2,3,4,6,10,16,20,25,32,40A 1 230/415 6000
2,3,4 400
50,63A 1 230/415 4500
2,3,4 400
D1,2 1,2,3,4,6,10,16,20,25,32,40A 1 230/415 4500
2,3,4 400
Parts Material
Base, cover, coil frame, lock, handle, handle, cover,connecting rod, jump buckle, arc chamber wall(up and down sheets) Reinforced polyamide PA66
Arc chamber 9 pieces of 0.8 cold rolled steel sheet Q235-A made arc chute; 0.8 No.1 Hard steel sheet made Arc chamber
Arc chamber plate: 0.8 No.1 Hard sheel sheet
Concentrating flux plate(up to 40A) 0.6 cold rolled steel sheet Q235-A
Insulating sleeve glass fiber silicone tube
Adjustment screw cold rolled steel sheet Q235-A
Coil Polyester enameled round copper wire QZ-2/255/II
Iron core Electric pure iron stickDT3
Spridng steelless spring wire 1Cr18Ni9
Ejector pin rivet Aluminium wire LF2
Moving contact, fixed contact point, Lug terminal block, Connector Pure copper plate T2Y2
Rivet brass pipe H62Y2
Arc angle 0.8 cold rolled steel sheet Q235-A



CE Approved 1pole C10 6kA Safety Mcb Sp Dp Miniature Circuit Breaker ​



Packing Detail

1. Product Net weight: 100g/pole

2. Packing quantity& Weight: 12 pole /box, 20 box/carton, 240 pole/carton .

3. N.W: 23KG/carton

4. G.W:24KG/carton

5. Packing Measurement: inner box 22.5×9×8 cm, Carton 45×23.5×33.5 cm ( ie 0.036 cbm)

6. 20 foot container (26 cbm): 19,2000 pole ,800 cartons

7. 40 foot container (54 cbm): 38,4000 pole, 1600 cartons



FAQ

1. Could I have prices of your products?

Welcome. Pls feel free to send us an email here. You will get our reply in 24 hours

2. Can we print our logo/website/company name on products?

Yes, please advise the size and Pantone Code of the logo.

3. What's the lead time for regular order?

7-15 days for order quantity lower than 5000pc; For more quantity, usually 20 days.

4. Can I get a sample before the bulk order?

Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.

5. Do you inspect the finished products?

Yes, each step of production and finished products will be came out inspection by QC department before shipping.
