MCB 9mm 1 Pole Wifi Micro Circuit Breaker Overload Miniature High Fire Resistance

Basic Information
Place of Origin: CHINA
Brand Name: NBSe/OEM
Certification: CE,CCC
Model Number: NBSB1-63
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: 240pcs/ctn
Delivery Time: 10-20days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 400,000pcs per month
Detail Information
Mount Type: Din-rail Mount DZ47-63 Material: PA66
Standard: IECEN60947-2 Pole: 1.1P+N. 2. 3. 3P+N, 4.
Rated Voltage: 230V Rated Frequency: 50/6CHz
Certificate: CE,CB,CCC,TUV,ROHS Rated Current(A): 6, 10, 16. 20, 25.32, 40
Circumstance Temperature: -5~+40 Rated Breaking Capacity: 3KA,4.5KA,6KA
High Light:

micro High Fire Resistance Circuit Breaker


1 Pole Wifi Micro Circuit Breaker


Micro Circuit Breaker Overload

Product Description

MCB 9mm 1 Pole Wifi Micro Circuit Breaker Smallest Mcb Miniature Circuit Breakers



Half module(9mm) is ideal to save valuable switchboard space. Required by more and moreelectrical compliance, the household also need more and more circuit breaker to protect. It is small, but work as reliably as normal mini circuit breaker.

  1. Pole No.: 1,1P+N,2.3,3P+N,4
  2. Rated voltage: AC 230/400V
  3. Rated current(A); 6,10,16,20,25,32,40
  4. Tripping curve: B,C
  5. Rated short-circuit capacity(lcn): 6000A
  6. Rated service short-circuit breaking capaciyl(lcs): 6000A
  7. Rated frequency: 50/60Hz
  8. Energy limiting class: 3
  9. Electro-mechanical endurance: 8000
  10. Connection terminal: Screw terminal Pillar terminal with clamp
  11. Connection capacity: Rigid conductor up to16mm?
  12. Fastening torque: 2.0N.m
Standard   IEC60898
Number of poles   1P,2P,3P,4P
Rated current(In)   6,10,16,20,25,32,40,50,63
Rated voltage(Un)   AC240/415V
Rated frequency   50/60Hz
Tripping curve   B,C,D
Release action characteristics Time delay 1.13In>1h Non-trip
1.45In<1h trip
2.55In 1s~60S trip
Instantaneous(Curve C) 5In >0.1s Non-trip
10In<0.1s trip
Magnetic releases operate   B curve:between 3 and 5In
C curve :between 5 and 10In
D curve: between 10 and 15In
Ratedbreaking capacit(Lcn)   6000A
Endurance   >2500
Circumstance temperature   -5~+40
Electrical life   >6000times
Mechanical life   20000 times
Tropical ration   Treatmen 2(RH95%,at 55°C)
Protection degree   IP20


  • Air temperature: use temperature -30℃~+60℃, storage temperature -40℃~+70℃.
  • Altitude: The altitude of the installation site does not exceed 2000 meters, and the altitude of more than 2000 meters should be derated for use.
  • Atmospheric conditions: The relative humidity of the air at the installation site does not exceed 50% at +40°C, and the average humidity of the wettest month does not exceed 90% at +20°C.
  • Installation category: The installation category is Ⅲ and Ⅲ. Pollution degree: Level 2. Installation method: Use TH35-7.5 standard rail installation.
  • Installation conditions: The inclination between the installation surface and the vertical surface should not exceed 5°, and the installation site should be free of significant impact and vibration.
  • Wiring method: Use screw compression connection to ensure fast and safe connection of conductors.


Packing Detail

1. Product Net weight: 100g/pole

2. Packing quantity& Weight: 12 pole /box, 20 box/carton, 240 pole/carton .

3. N.W: 23KG/carton

4. G.W:24KG/carton

5. Packing Measurement: inner box 22.5×9×8 cm, Carton 45×23.5×33.5 cm ( ie 0.036 cbm)

6. 20 foot container (26 cbm): 19,2000 pole ,800 cartons

7. 40 foot container (54 cbm): 38,4000 pole, 1600 cartons


The Over-Current Protection Property

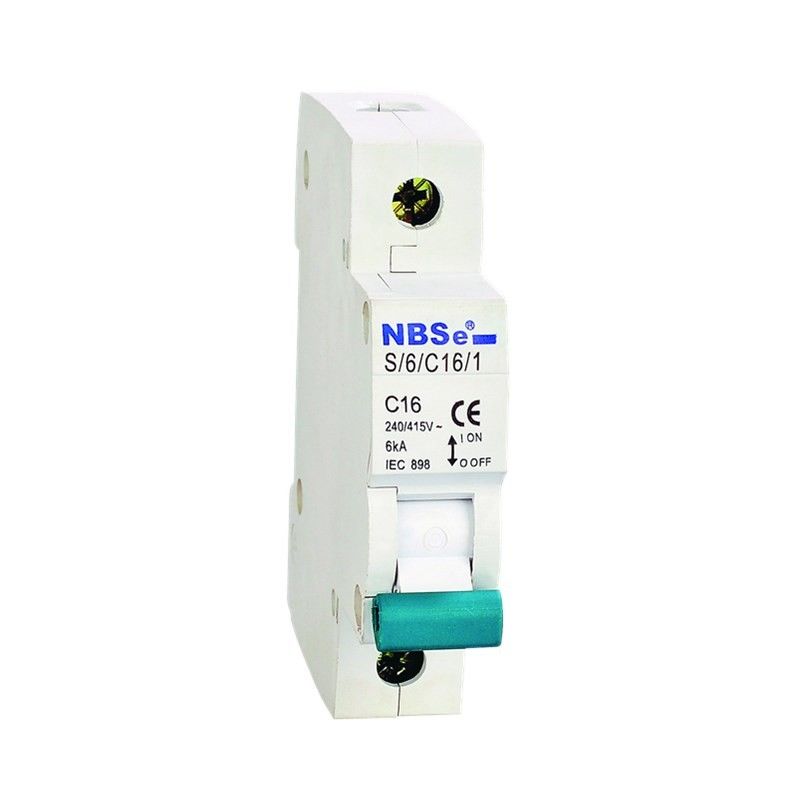

MCB 9mm 1 Pole Wifi Micro Circuit Breaker Overload Miniature High Fire Resistance 0

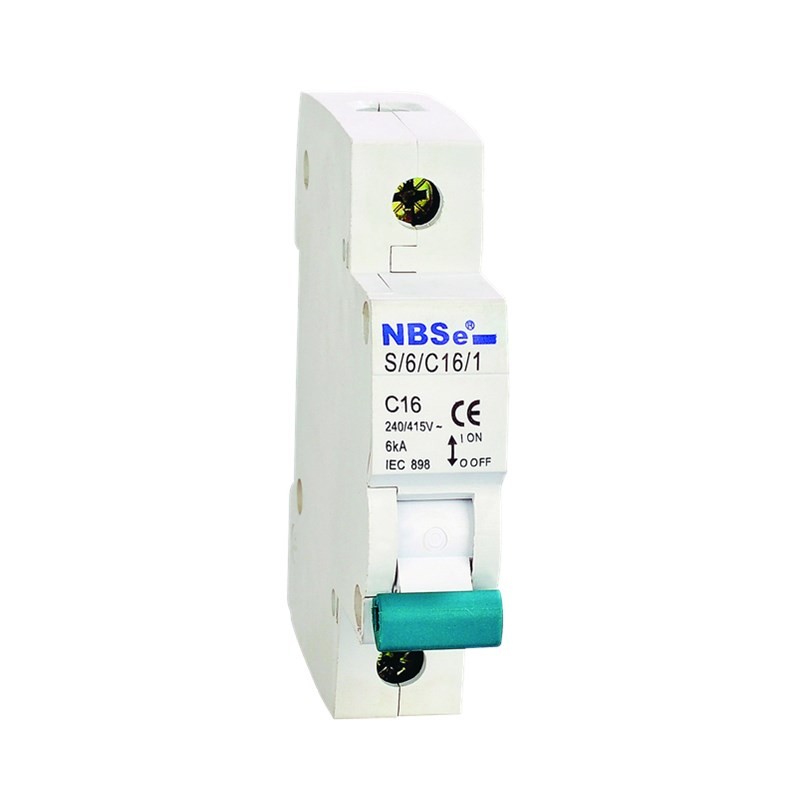

MCB 9mm 1 Pole Wifi Micro Circuit Breaker Overload Miniature High Fire Resistance 1


MCB Selection

 The first characteristic is the overload which is intended to prevent the accidental overloading of the cable in a no fault situation. The speed of the MCB tripping will vary with the degree of the overload. This is usually achieved by the use of a thermal device in the MCB.

 The second characteristic is the magnetic fault protection, which is intended to operate when the fault reaches a predetermined level and to trip the MCB within one tenth of a second. The level of this magnetic trip gives the MCB its type characteristic as follows:

Type Tripping Current Operating Time
Type B 3 To 5 time full load current 0.04 To 13 Sec
Type C 5 To 10 times full load current 0.04 To 5 Sec
Type D 10 To 20 times full load current 0.04 To 3 Sec


· The third characteristic is the short circuit protection, which is intended to protect against heavy faults maybe in thousands of amps caused by short circuit faults.

· The capability of the MCB to operate under these conditions gives its short circuit rating in Kilo amps (KA). In general for consumer units a 6KA fault level is adequate whereas for industrial boards 10KA fault capabilities or above may be required.
