Material: | ABS, COPPER | Poles Number: | 2 Pole, 3 Pole, 4 Pole |
---|---|---|---|
Rated Frequency: | 50/60Hz | Standard: | IEC60947-2 |
Type: | Moulded Case,Magnetic | Rated Voltage: | AC230/440/660 |
Product Name: | Mccb Moulded Case Circuit Breaker | Breaking Capacity: | 25~100KA |
Installation: | Fixed And Plug-in,Easy To Install | ||
High Light: | adjustable circuit breaker,high voltage circuit breaker |

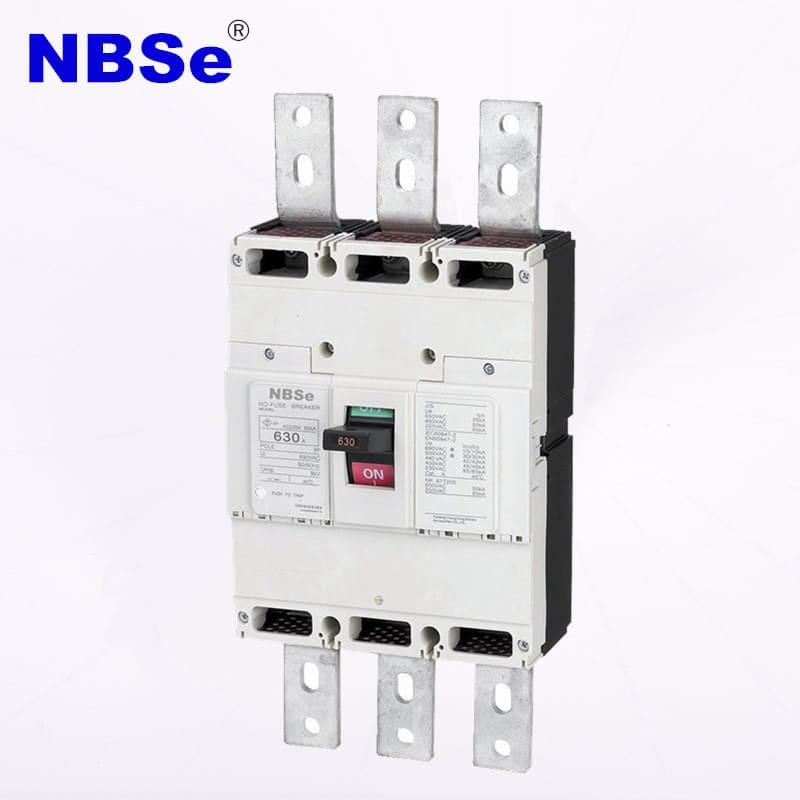

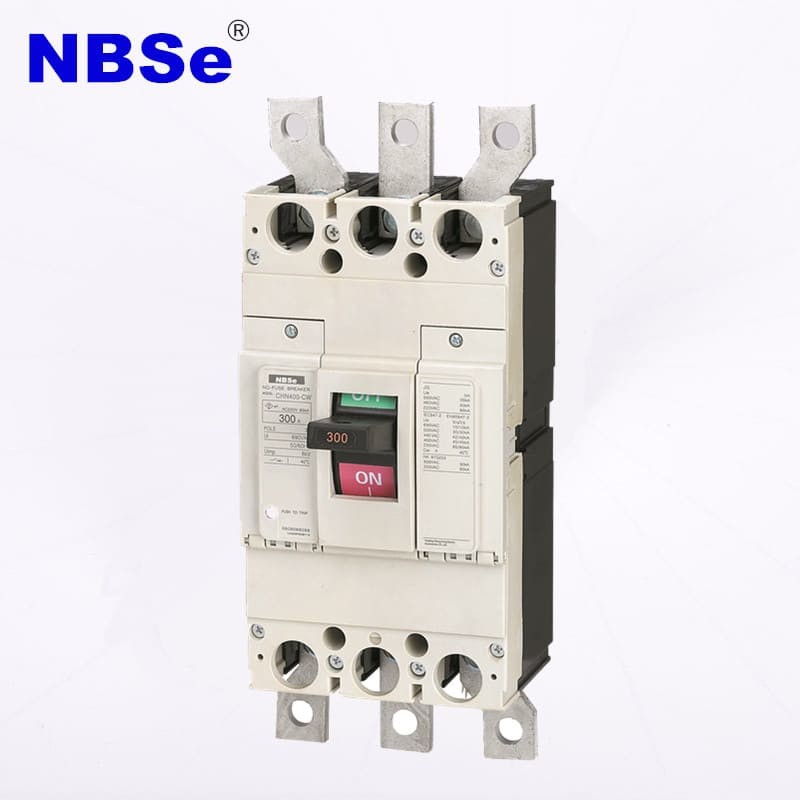

NBSe NF400 CW MCCB mold case circuit breaker, mccb breaker
The circuit breaker can protect people against indirect contact with dangerous electric current and prevent fire disaster caused by insulation fault and single-phase ground fault.It can be used to distribute electric power and protect power equipment against overload and short circuit.The circuit breaker can change the circuit and start motor infrequently.
1) The products conforms to GB14048.2,IEC60497-2 standards.
2) Equipment with the protection devices.
1. Application and range of application
NF-CW moulded case circuit breaker is available in three ranges, standard, hi-break. The performance of the YNF-CW MCCB range is the result of extensive design & development-utilizing AAD accredited test station. The current limiting action of YNF-CW MCCBs provides low values of let-through energy. Full information for this and time/current characteristic curves are both available on request to provide more information.
2. Technical parameter of MCCB
Type | Number of poles | Rated current in(A) | Testing voltage (V) | (p1/p2)Ica/Ics breaking capacity (KA) | |||
230V | 400V | 440V | 500V | ||||
NF-50CW | 3 | 5,10,15,20,30,40,50 | 600 | 5/2 | 5/2 | 2.5/1 | 2.5/1 |
NF-60CW | 60 | 5/2 | 5/2 | 2.5/1 | 2.5/1 | ||
NF-100CW | 60,75,100 | 25/13 | 5/2 | 5/2 | 7/4 | ||
NF-250CW | 125,150,175,200,225,000 | 25/13 | 10/5 | 10/5 | 7/4 | ||
NF-400CW | 250,300,350,400 | 30/15 | 18/9 | 15/8 | 10/5 |
