| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NBSe/OEM |
| Certification: | CE,CCC |
| Model Number: | N30 |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | 240pcs/ctn |
| Delivery Time: | 10-20days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 40,000pcs per month |
| Type: | Lighting "C"or Motor"D" | Poles Number: | 1p+n Mcb |
|---|---|---|---|
| Material: | PA66,copper,silver | Rated Voltage: | 230V |
| Breaking Capacity: | 3KA,4.5KA | Rated Frequency: | 50/60Hz |
| Application: | Circuit-breaking,Homes,buildings,industrial | Standard: | IEC/EN60898 |
| OEM&ODM: | Mcb Stock Available | ||
| High Light: | MCB switchgear circuit breaker,PA66 switchgear circuit breaker,PA66 MCB breaker |
||

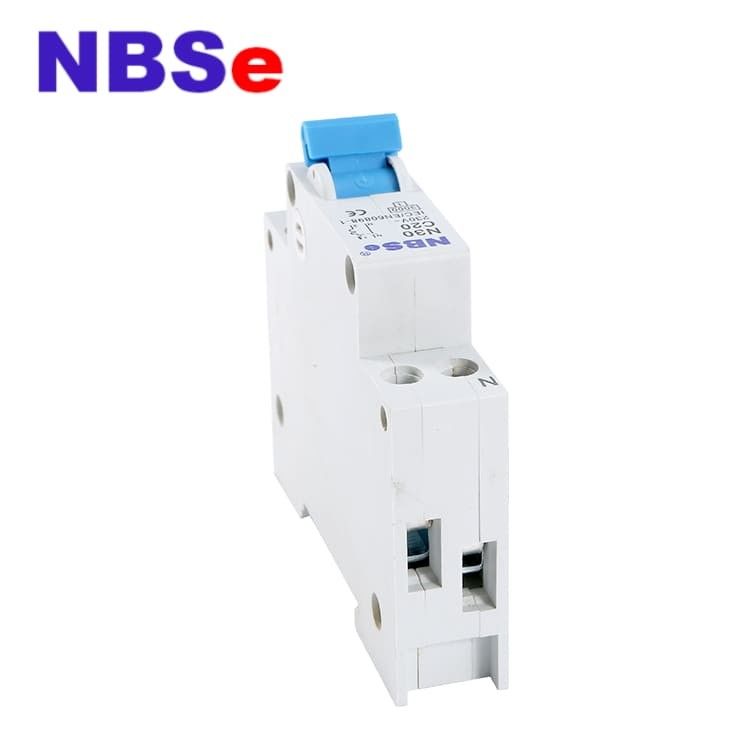

1P+N MCB,N30-32 MCB Stock Manufacturer,Switchgear Circuit Breaker
1. Application
N30-32 is used in the single phase circuit of AC 50Hz/60Hz, rated voltage 230V or below for protecting circuit from overload and short circuit. This product has advantages of high breaking capacity, small volume, width is only 18mm. It conforms with the standards of IEC60898.
2. Main Technical Parameter
| Type | N30-32 |
| Pole | 1P+N |
| Rated current (A) | 6,10,16,20,25,32 |
| Rated voltage(V) | 230 |
| Type of instantaneous release | C |
| Rated making/breaking capacity Im(A) | 3000 |
3. Applicable conducting wire
| Rated current(A) | Norminal cross section of wire mm2 |
| In ≤ 6 | 1 |
| 6 < In ≤ 13 | 1.5 |
| 13 < In ≤ 20 | 2.5 |
| 20 < In ≤ 25 | 4 |
| 25 < In ≤ 32 | 6 |

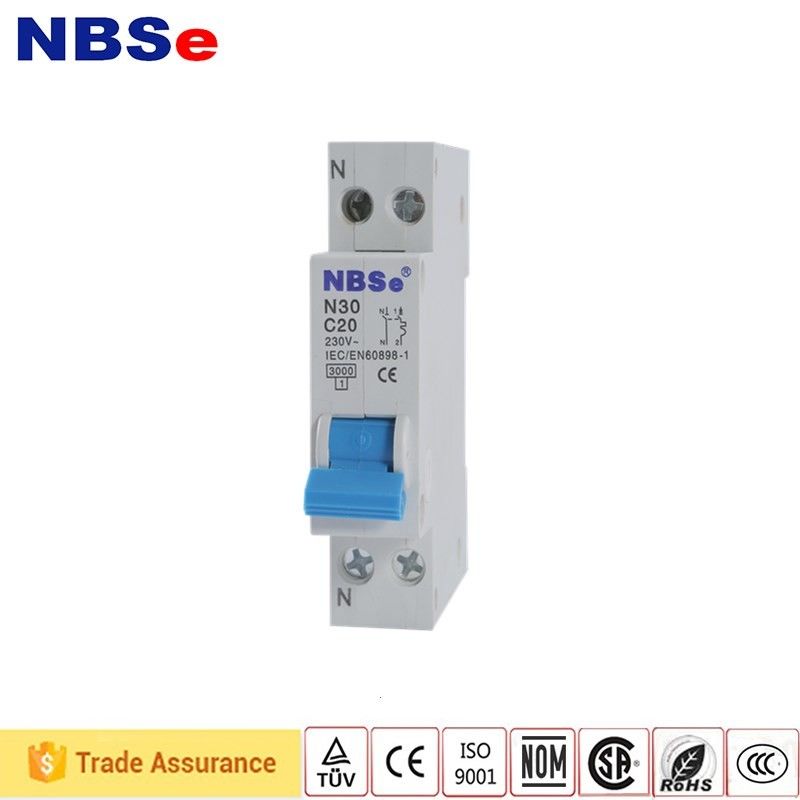

1P+N MCB,N30-32 MCB Stock Manufacturer,Switchgear Circuit Breaker
4. The over-current protection property
| Ambient Temperature | Initial Status | Test Current | Expected Result | Expected Result | Note |
| Cold position | 1.13In | t ≥ 1h | Non-release | - | |
| 30 ± 2oC | Carried out immediately after previous test | 1.45In | t<1h | Release | - |
| Cold position | 2.55In | 1s < t < 60s | Release | Current smoothly rises to specified value within 5s | |
| -5~+40oC | Cold position | 5In | t ≥ 0.1s | Non-release | Type C |
| Cold position | 10In | t < 0.1s | Release | Type C |
Company and Service

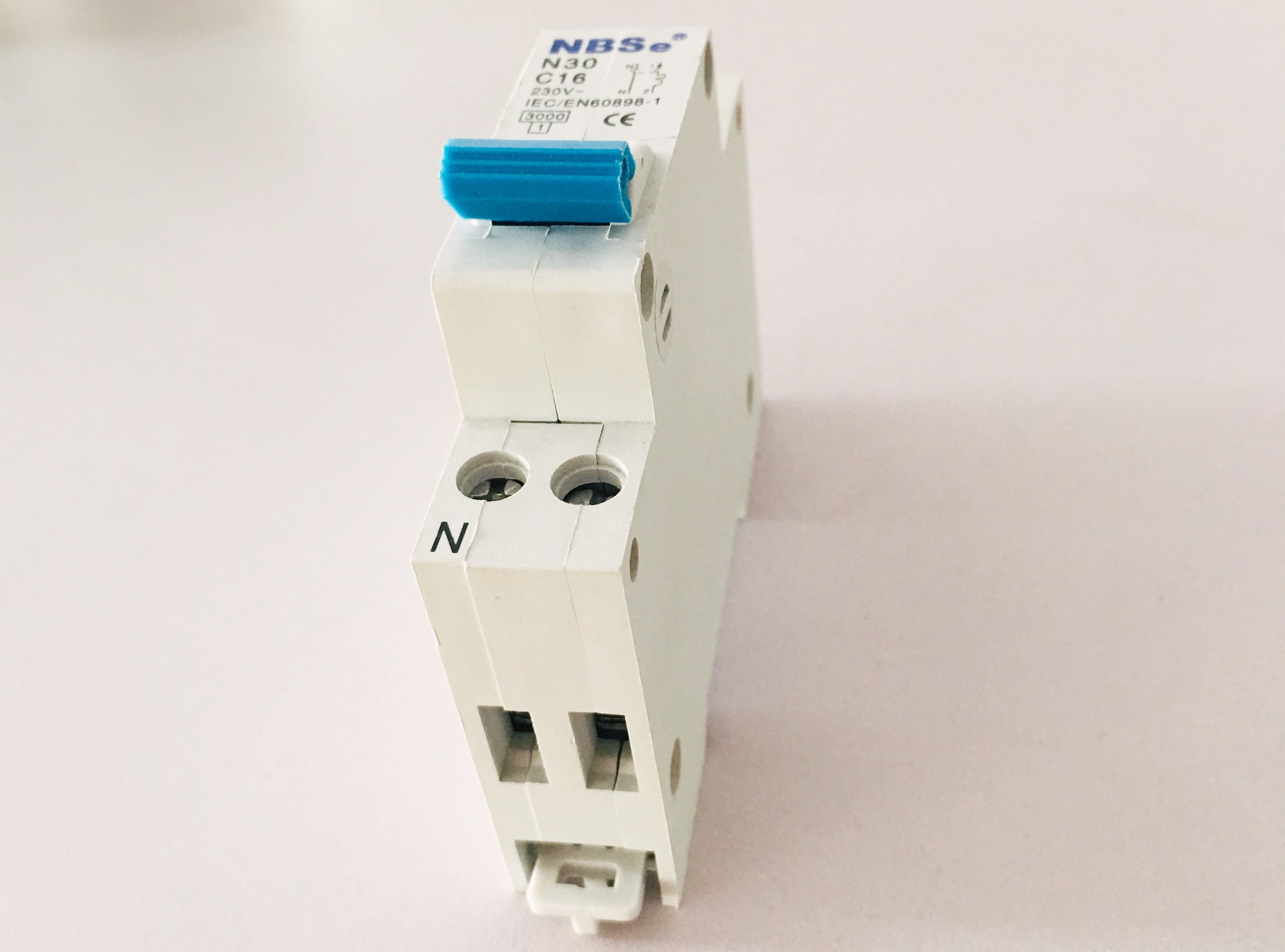

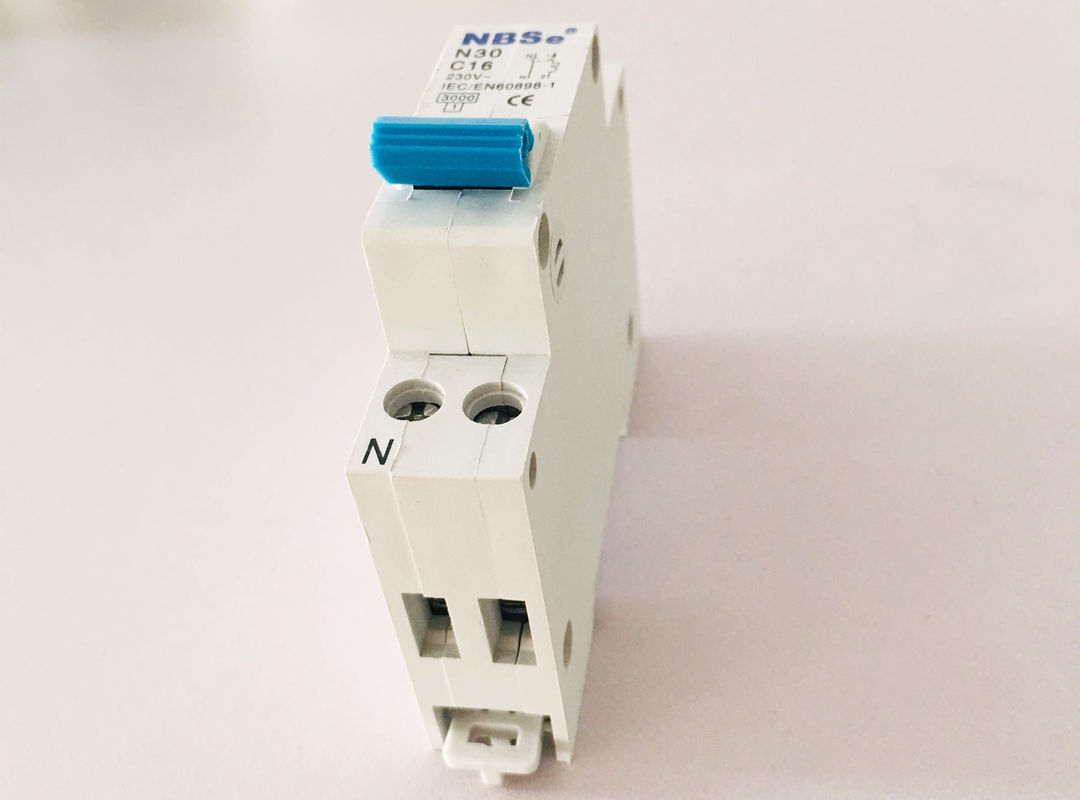

1P+N MCB,N30-32 MCB Stock Manufacturer,Switchgear Circuit Breaker
located in Wenzhou,Zhejiang is an important economic center in South Gulf Coast, Registered trade mark is “NBSe”.
As one of the top supplier of electrical appliances, We focus on the field of low voltage appliances power distribution,electrical equipment and Industrial automation equipment.
Main products: circuit breaker, moulded case circuit breaker, Isolator switch,contactor,Thermal relay, electrical meter, distribution box, etc.
Quality &Standards:Products are producted per ISO9001:2008, IEC60947, IEC60898,CB, SAA, TUV,CE,NOM,ROHS,PCT, CCC etc.
Business strategies &Characristic: Quality,Honesty and technological innovation are the corner stones of our company's business strategy.
We are trying to develop NBSe into a world-class Electrical manufacturer.
5. Our Services
(1) Warranty ( 24 months warranty )
1. The warranty starts from the delivery date from our factory;
2. During the warranty, any defective product will get repaired or replaced for free ;
3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.
(2) Lead Time
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Bulk orders will be delivered from our factory within 25 working days at most
(3) Shippment
1. By EMS, DHL, FedEx, TNT, UPS or other express.
2. By our forwarding agent (by air or by sea).
3. By your own forwarding agent.
4. By domestic forwarding agents to any city in China
