| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NBSe/OEM |
| Certification: | CE,CCC |
| Model Number: | DZ47-63 |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | 240pcs/ctn |
| Delivery Time: | 10-20days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 400,000pcs per month |
| Poles: | 3P | Rated Voltage: | AC220V/410V |
|---|---|---|---|
| Ampere: | 1A-63A | Application: | Circuit-breaking,Homes,buildings,industrial |
| Characristatics: | D Curve Circuit Breaker,type D Circuit Breaker | Breaking Capacity: | 6KA |
| Rated Frequency: | 50/60Hz | Mechanical Life: | >8000times |
| Standard: | IEC/EN60898 | Usage: | High Power Industrial Applications |
| High Light: | IEC60898 type d circuit breaker,3P type d circuit breaker,3P type d mcb |
||

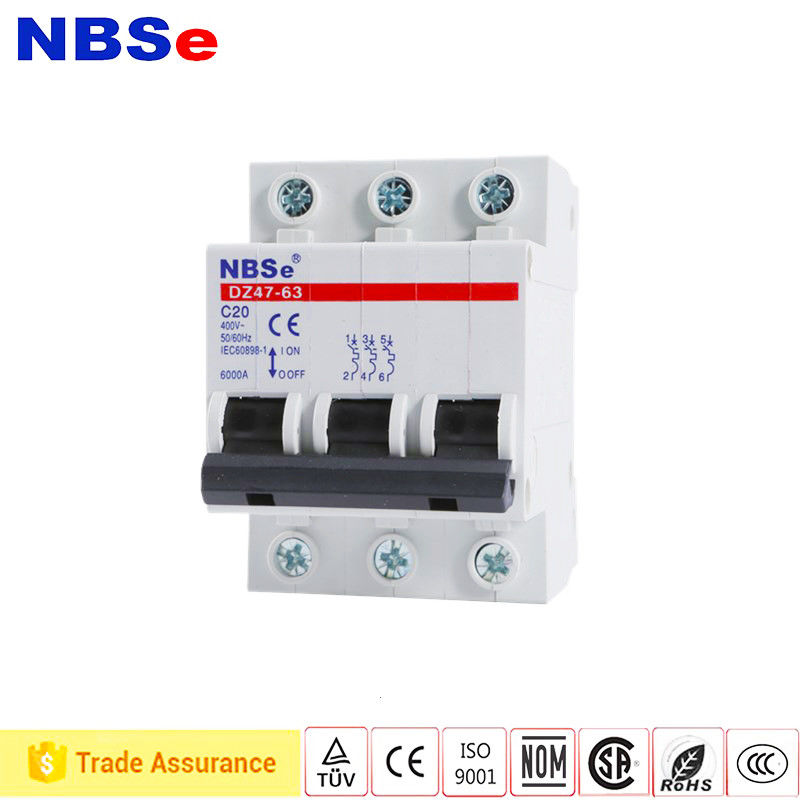

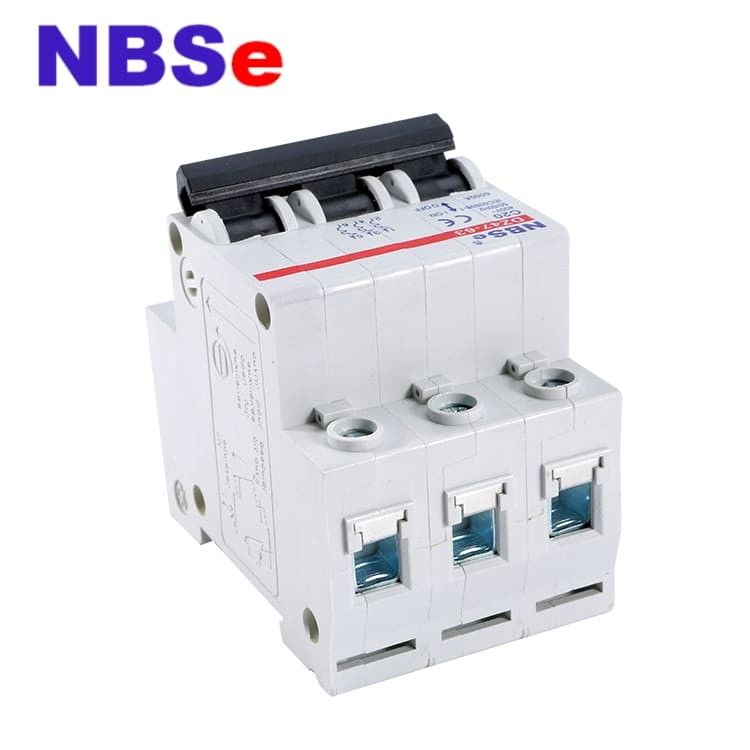

Type D Circuit Breaker,Motor Breaker,IEC60898 Standard Products,High Quality DZ47-63
Application
Miniature circuit breaker(MCB) is mainly used for lighting for building, protection against overload, short circuit
under AC230V/415V, rated current from 1A to 63A. It also can be used for non-frequent on and off switch operation
under normal circumstance.
Type D has a trip current of 10 to 20 times than the rated current with an operating time of 0.04 to 3 Seconds. It is used
for very high inductive loads.
Mainly used in high power industrial applications for types of equipment like heavy motors, transformers,
x-rays, welding, etc.
DZ47 series circuit breaker is used in lighting distribution system or motor distribution system for producting overload
and short-circuit in the system. The product is novel in structure, light in weight, reliable and excellent in performance.
It has high breaking capacity, can trip quickly and its installation uses with guide, its case and items are adopted with
high fire-resistant and shockproof plastics.
The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 230V or two, three, four pole 400V circuit for
overload and short-circuit protection as well as for unfrequent on-and off swit ching electric equipment and lighting circuit
in normal case. The product complies with GB10963, IEC898, BS3871.
| Type | Rated Current(A) | Pole No. | Voltage(V) | Breaking Capacity(A) |
| B | 1,2,3,4,6,10,16,20,25,32,40A | 1 | 230/415 | 6000 |
| 2,3,4 | 400 | |||
| 50,63A | 1 | 230/415 | 4500 | |
| 2,3,4 | 400 | |||
| C | 1,2,3,4,6,10,16,20,25,32,40A | 1 | 230/415 | 6000 |
| 2,3,4 | 400 | |||
| 50,63A | 1 | 230/415 | 4500 | |
| 2,3,4 | 400 | |||
| D1,2 | 1,2,3,4,6,10,16,20,25,32,40A | 1 | 230/415 | 4500 |
| 2,3,4 | 400 |
| Parts Material | |
| Base, cover, coil frame, lock, handle, handle, cover,connecting rod, jump buckle, arc chamber wall(up and down sheets) | Reinforced polyamide PA66 |
| Arc chamber | 9 pieces of 0.8 cold rolled steel sheet Q235-A made arc chute; 0.8 No.1 Hard steel sheet made Arc chamber |
| Arc chamber plate: | 0.8 No.1 Hard sheel sheet |
| Concentrating flux plate(up to 40A) | 0.6 cold rolled steel sheet Q235-A |
| Insulating sleeve | glass fiber silicone tube |
| Adjustment screw | cold rolled steel sheet Q235-A |
| Coil | Polyester enameled round copper wire QZ-2/255/II |
| Iron core | Electric pure iron stickDT3 |
| Spridng | steelless spring wire 1Cr18Ni9 |
| Ejector pin | rivet Aluminium wire LF2 |
| Moving contact, fixed contact point, Lug terminal block, Connector | Pure copper plate T2Y2 |
| Rivet | brass pipe H62Y2 |
| Arc angle | 0.8 cold rolled steel sheet Q235-A |
| Standard | IEC60898 | |
| Number of poles | 1P,2P,3P,4P | |
| Rated current(In) | 6,10,16,20,25,32,40,50,63 | |
| Rated voltage(Un) | AC240/415V | |
| Rated frequency | 50/60Hz | |
| Tripping curve | B,C,D | |
| Release action characteristics | Time delay | 1.13In>1h Non-trip |
| 1.45In<1h trip | ||
| 2.55In 1s~60S trip | ||
| Instantaneous(Curve C) | 5In >0.1s Non-trip | |
| 10In<0.1s trip | ||
| Magnetic releases operate | B curve:between 3 and 5In | |
| C curve :between 5 and 10In | ||
| D curve: between 10 and 15In | ||
| Ratedbreaking capacit(Lcn) | 6000A | |
| Endurance | >2500 | |
| Circumstance temperature | -5~+40 | |
| Electrical life | >6000times | |
| Mechanical life | 20000 times | |
| Tropical ration | Treatmen 2(RH95%,at 55°C) | |
| Protection degree | IP20 |
Type D Circuit Breaker,Motor Breaker,IEC60898 Standard Products,High Quality DZ47-63
Packing Detail
1. Product Net weight: 100g/pole
2. Packing quantity& Weight: 12 pole /box, 20 box/carton, 240 pole/carton .
3. N.W: 23KG/carton
4. G.W:24KG/carton
5. Packing Measurement: inner box 22.5×9×8 cm, Carton 45×23.5×33.5 cm ( ie 0.036 cbm)
6. 20 foot container (26 cbm): 19,2000 pole ,800 cartons
7. 40 foot container (54 cbm): 38,4000 pole, 1600 cartons
