| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NBSe/OEM |
| Certification: | CE,CCC |
| Model Number: | BM60 |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | 240pcs/ctn |
| Delivery Time: | 10-20days |
| Payment Terms: | Western Union, L/C, T/T |
| Supply Ability: | 400,000pcs per month |
| Type: | Mini | Poles Number: | 1-4P |
|---|---|---|---|
| Material: | PA66 | Rated Voltage: | 220V/440V |
| Breaking Capacity: | 4.5KA/6KA | Rated Frequency: | 50/60Hz |
| Standard: | IEC/EN60898 | Mechanical Life: | No Less Than 20000 |
| Port: | Ningbo/Shanghai | Lead Time: | 10-20days |
| High Light: | PA66 automatic circuit breaker,440V 6KA automatic circuit breaker,PA66 power circuit breaker |
||
BM60 220V/440V PA66 Micro Circuit Breaker 4.5KA/6KA 50/60Hz For House Use
Main Feature
1. Conforming of latest standard of CE,CCC
2. Accurate current tripping and setting
3. High breaking capacity
4. High current limitation capability to realize the high selection
5. Dual-terminal at two sides is suitable for the busway and single-core conductor
6. Multiple-function accessories series
7. Wiring screw of combined channel with large torque and solid wiring and rapid wiring
8. Free incoming-line direction of power supply
9. DC product could be used at the fields such as communic ation or electric vehicle and so on.
1. Application
BM60 is mainly used in AC50/60Hz single pole230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl
the product is suitable for industry,business,building,ressidence,etc.
It's conformity with CE GB10963,IEC60898 EN898 standards.
2. Main technical data
| Rated temperature 40C | ||||
| Rated voltage 230V/400V AC | ||||
| Rated current: 6,10,15,16,20,25,32,40,50,60,63A (D):1,3,5,6,10,15,16,20,25,32,40A,50A,63A | ||||
| Electric endurance not lower than 6000 times | ||||
| Mechanical endurance lower than 20000 times | ||||
| Tropical test:2 kinds | ||||
| Weight(g) | 1P | 2P | 3P | 4P |
| 100 | 202 | 304 | 406 | |
| Standard | Rated current (A) | Pole | Voltage (V) | Breaking capacity(A) |
| EN898 IEC898 | 1 to 40 | 1 | 240 | 6000 |
| 2,3,4 | 415 | 6000 | ||
| IEC157-1 | 1 to 40 | 1 | 220/240 | 6000 |
| 2,3,4 | 220/240 | 12000 | ||
| 2,3,4 | 380/415 | 6000 |

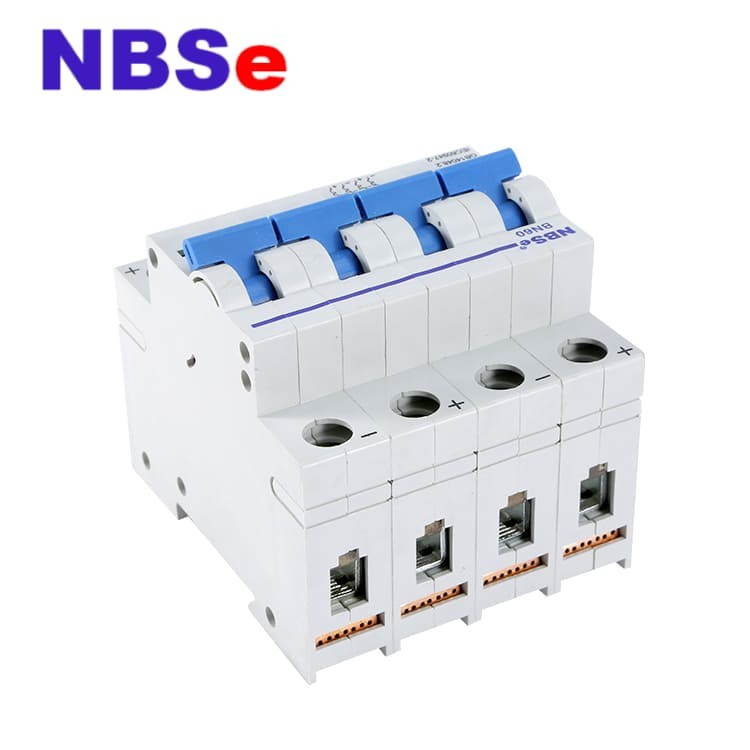

3. Product show
Material: unti-fire Nylon PA66, Copper and silver point.
4. The over-current protection property
| Ambient Temperature | Initial Status | Test Current | Expected Result | Expected Result | Note |
| 30±2oC | Cold position | 1.13In | t≥1h | Non-release | - |
| Carried out immediatelyafter previous test | 1.45In | t < 1h | Release | - | |
| Cold position | 2.55In | 1s < t< 60s(In≥32A) | Release | Current smoothly rises tospecified value within 5s | |
| Cold position | 2.55In | 1s < t < 120s(In>32A) | Release | ||
| -5~+40oC | Cold position | 3In | t≥0.1s | Non-release | Type B |
| Cold position | 5In | t < 0.1s | Release | Type B | |
| Cold position | 5In | t≥0.1s | Non-release | Type C | |
| Cold position | 10In | t < 0.1s | Release | Type C | |
| Cold position | 10In | t≥0.1s | Non-release | Type D | |
| Cold position | 20In | t < 0.1s | Release | Type D |
