|Type:||Lighting "C"or Motor"D"||Poles Number:||1-4P|
|Breaking Capacity:||3KA||Rated Frequency:||50/60Hz|
Miniature residual current circuit breaker,
4P residual current circuit breaker,
Miniature rcd power breaker

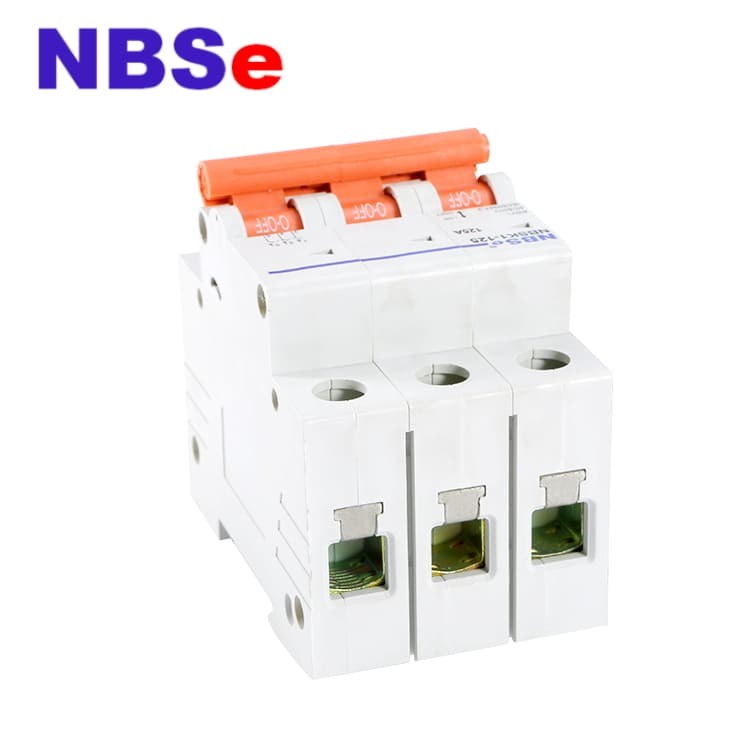

NBSe DZ47 Series Miniature Circuit Breaker,fuses and circuit breakers
DZ47 Economic type mcb is mainly used in AC50/60Hz single pole230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl
the product is suitable for industry,business,building,ressidence,etc.
It's conformity with CE GB10963,IEC60898 EN898 standards.
Breaker provide the function of isolation switching, overload and short circuit
High short-circuit capacity, Contact position indication
Breaker provide the indirect protection of the operator's body against the dangerous effects of electric current
Breaker provide the protection of the fire caused by the electrical circuit fault.
General Model, widely use, used in Household ,building factory,etc.
Special ABS plastic high in fire-resistance and strength, green earth meterial
Mode of connection: Outer lead wire connecting terminal
Easy mounting onto 35mm DIN rail
Protection for sub-main circuits
Light and power
Motor starting applications
Electrical office equipment
Electrical hand tools
4. Main technical data
|Rated temperature 40C|
|Rated voltage 230V/400V AC|
|Rated current: 6,10,15,16,20,25,32,40,50,60,63A (D):1,3,5,6,10,15,16,20,25,32,40A,50A,63A|
|Electric endurance not lower than 6000 times|
|Mechanical endurance lower than 10000 times|
|Tropical test:2 kinds|
|Standard||Rated current (A)||Pole||Voltage (V)||Breaking capacity(A)|
|EN898 IEC898||1 to 40||1||240||3000|
|IEC157-1||1 to 40||1||220/240||3000|
4. Product show
Material: unti-fire Nylon PA66, Copper and silver point.
5. The over-current protection property
|Ambient Temperature||Initial Status||Test Current||Expected Result||Expected Result||Note|
|Carried out immediatelyafter previous test||1.45In||t < 1h||Release||-|
|Cold position||2.55In||1s < t< 60s(In≥32A)||Release||Current smoothly rises tospecified value within 5s|
|Cold position||2.55In||1s < t < 120s(In>32A)||Release|
|-5~+40oC||Cold position||3In||t≥0.1s||Non-release||Type B|
|Cold position||5In||t < 0.1s||Release||Type B|
|Cold position||5In||t≥0.1s||Non-release||Type C|
|Cold position||10In||t < 0.1s||Release||Type C|
|Cold position||10In||t≥0.1s||Non-release||Type D|
|Cold position||20In||t < 0.1s||Release||Type D|
