Conventional 4.5KA 6KA 4P Micro Circuit Breaker

Basic Information
Place of Origin: CHINA
Brand Name: NBSe/OEM
Certification: CE,CCC
Model Number: NBSX1-63
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: 240pcs/ctn
Delivery Time: 10-20days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 400,000pcs per month
Detail Information
Poles Number: 4P Material: Fire-proof Shell, Copper,silver Point
Rated Voltage: 220V Breaking Capacity: 6KA
Rated Frequency: 50/60Hz Standard: IEC/EN60898
Type: Mini,Conventional,thermal/electrical Circuit Breaker Product Name: Mini Circuit Breaker
Application: Circuit-breaking,Homes,buildings,industrial Ampere: 6A-80A
High Light:

4P Micro Circuit Breaker

,

4.5KA Micro Circuit Breaker

,

4.5KA 4p mcb


Product Description

NBSX1 Micro Circuit Breaker High Breaking Capacity,4 Pole Mcb



1. Application

The product is mainly used in AC50/60Hz single pole230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl

the product is suitable for industry,business,building,ressidence,etc.

It's conformity with GB10963,IEC60898 standards.



2. Main technical data

1. Rated current:1,2,3,4,6,10,16,20,25,32,40,50,63A;

2.Tripping characteristics:B(3-5)In,C(5-10)In,D(10-15)In;

3. No. of pole:1P,2P,3P,4P

4. Breaking capacity:4.5KA,6KA;



Standard   IEC60898
Number of poles   1P,2P,3P,4P
Rated current(In)   6,10,16,20,25,32,40,50,63
Rated voltage(Un)   AC240/415V
Rated frequency   50/60Hz
Tripping curve   B,C,D
Release action characteristics Time delay 1.13In>1h Non-trip
1.45In<1h trip
2.55In 1s~60S trip
Instantaneous(Curve C) 5In >0.1s Non-trip
10In<0.1s trip
Magnetic releases operate   B curve:between 3 and 5In
C curve :between 5 and 10In
D curve: between 10 and 15In
Ratedbreaking capacit(Lcn)   6000A
Endurance   >2500
Circumstance temperature   -5~+40
Electrical life   >6000times
Mechanical life   20000 times
Tropical ration   Treatmen 2(RH95%,at 55°C)
Protection degree   IP20

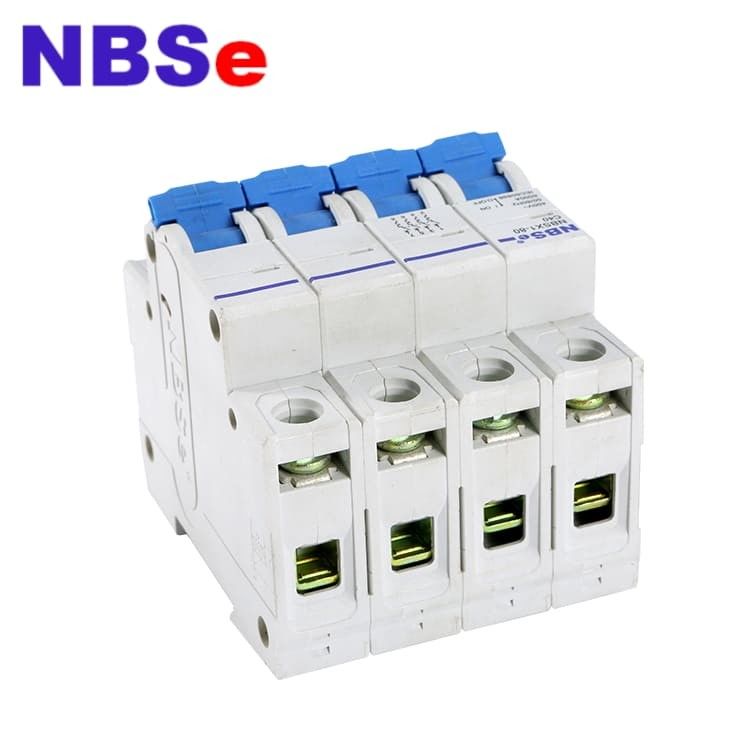

Conventional 4.5KA 6KA 4P Micro Circuit Breaker 0



3. Packing Detail

1. Product Net weight: 100g/pole

2. Packing quantity& Weight: 12 pole /box, 20 box/carton, 240 pole/carton .

3. N.W: 23KG/carton

4. G.W:24KG/carton

5. Packing Measurement: inner box 22.5×9×8 cm, Carton 45×23.5×33.5 cm ( ie 0.036 cbm)

6. 20 foot container (26 cbm): 19,2000 pole ,800 cartons

7. 40 foot container (54 cbm): 38,4000 pole, 1600 cartons



4. The Over-Current Protection Property

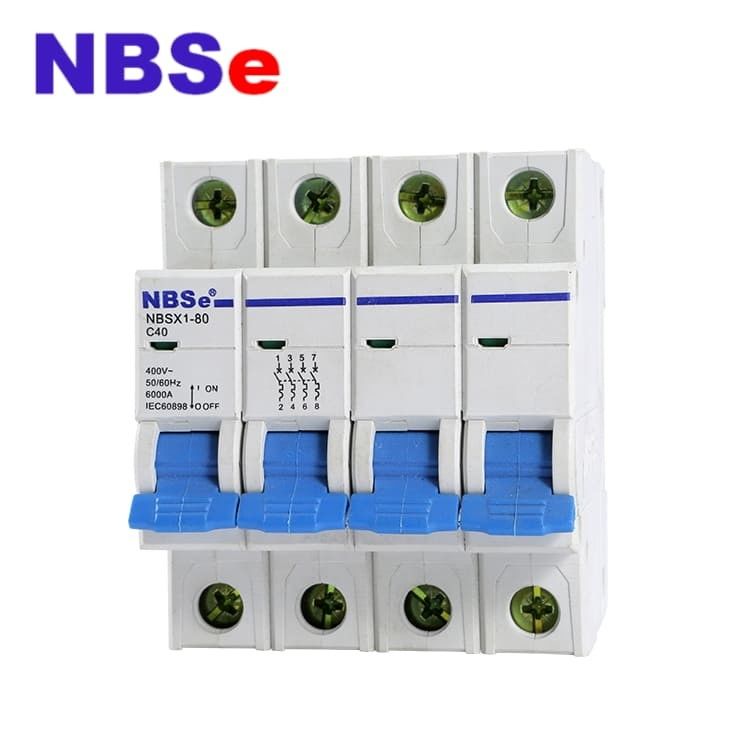

Conventional 4.5KA 6KA 4P Micro Circuit Breaker 1





Our Services

(1) Warranty ( 24 months warranty )

1. The warranty starts from the delivery date from our factory;

2. During the warranty, any defective product will get repaired or replaced for free ;

3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.



(2) Lead Time

1. Sample orders will be delivered from our factory within 7 working days.

2. General orders will be delivered from our factory within 7-15 working days.

3. Bulk orders will be delivered from our factory within 25 working days at most



(3) Shippment

1. By EMS, DHL, FedEx, TNT, UPS or other express.

2. By our forwarding agent (by air or by sea).

3. By your own forwarding agent.

4. By domestic forwarding agents to any city in China
