|Rated Voltage:||230V||Rated Frequency:||50/60Hz|
|Rated Current:||1A-63A||Mount:||Din-rail Mount DZ47-63|
|Application:||Circuit Breaking,home,building,industrial||Rated Breaking Capacity:||3KA,4.5KA,6KA|
4.5KA Double Pole MCB,
3KA Double Pole MCB,
3KA dual pole mcb

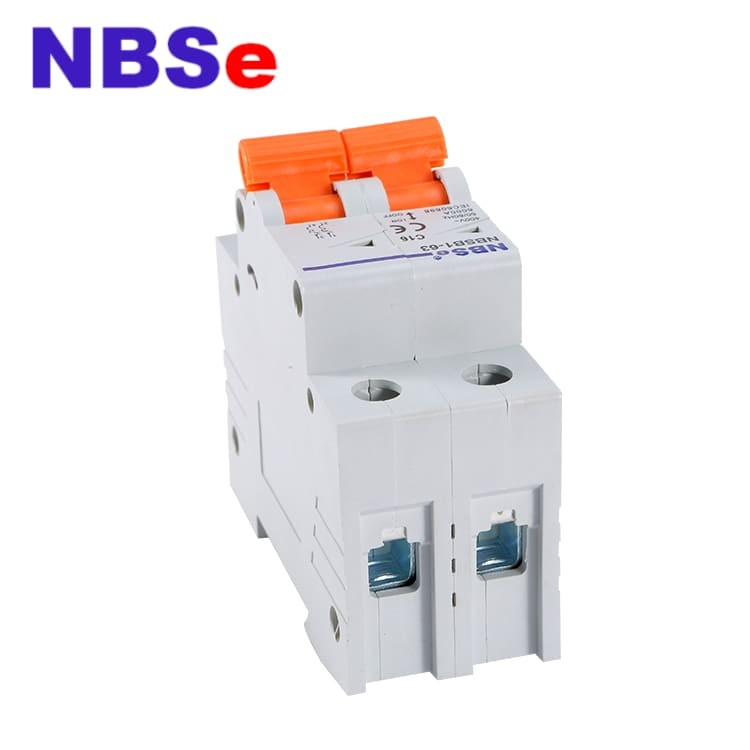

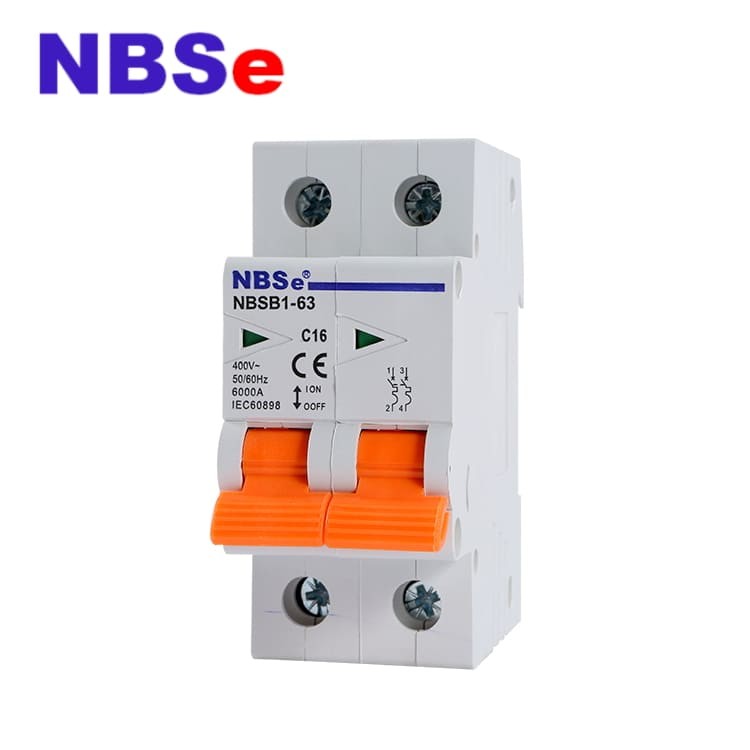

NBSB1-63 Mini Circuit Breaker,Double Pole Mcb
NBSB1-63 Mini Circuit Breaker Mcb,6KA, Double Pole Mcb,Dule Pole Mcb
The product is mainly used in AC50/60Hz single pole230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl
the product is suitable for industry,business,building,ressidence,etc.
It's conformity with GB10963,IEC60898 standards.
Main technical data
1. Rated current:1,2,3,4,6,10,16,20,25,32,40,50,63A;
2. Tripping characteristics:B(3-5)In,C(5-10)In,D(10-15)In;
3. No. of pole:1P,2P,3P,4P
4. Breaking capacity:4.5KA,6KA;
|Number of poles||1P,2P,3P,4P|
|Release action characteristics||Time delay||1.13In>1h Non-trip|
|2.55In 1s~60S trip|
|Instantaneous(Curve C)||5In >0.1s Non-trip|
|Magnetic releases operate||B curve:between 3 and 5In|
|C curve :between 5 and 10In|
|D curve: between 10 and 15In|
|Mechanical life||20000 times|
|Tropical ration||Treatmen 2(RH95%,at 55°C)|
3. Packing Detail
1. Product Net weight: 100g/pole
2. Packing quantity& Weight: 12 pole /box, 20 box/carton, 240 pole/carton .
3. N.W: 23KG/carton
5. Packing Measurement: inner box 22.5×9×8 cm, Carton 45×23.5×33.5 cm ( ie 0.036 cbm)
6. 20 foot container (26 cbm): 19,2000 pole ,800 cartons
7. 40 foot container (54 cbm): 38,4000 pole, 1600 cartons
4. The Over-Current Protection Property
breaker mcb NBSe
circuit breaker mcb NBSe
mini circuit breaker mcb NBSe
|Type||Tripping Current||Operating Time|
|Type B||3 To 5 time full load current||0.04 To 13 Sec|
|Type C||5 To 10 times full load current||0.04 To 5 Sec|
|Type D||10 To 20 times full load current||0.04 To 3 Sec|
· The third characteristic is the short circuit protection, which is intended to protect against heavy faults maybe in thousands of amps caused by short circuit faults.
· The capability of the MCB to operate under these conditions gives its short circuit rating in Kilo amps (KA). In general for consumer units a 6KA fault level is adequate whereas for industrial boards 10KA fault capabilities or above may be required.
