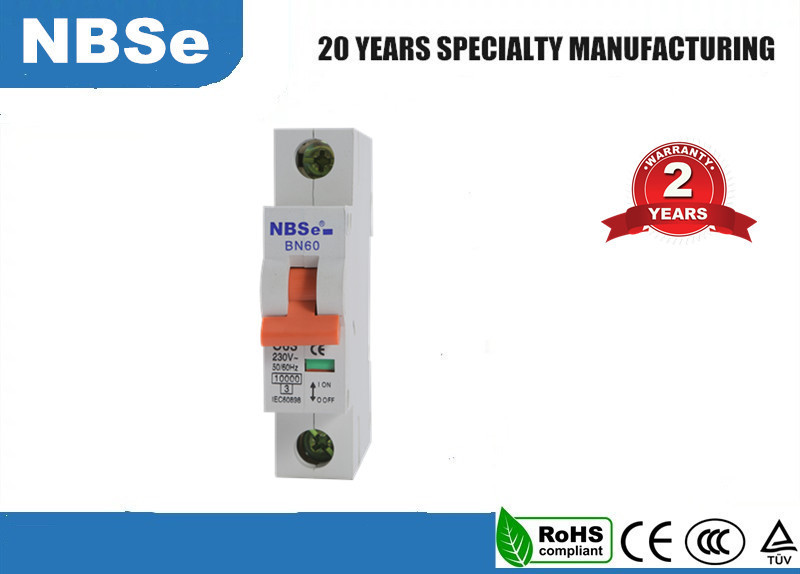

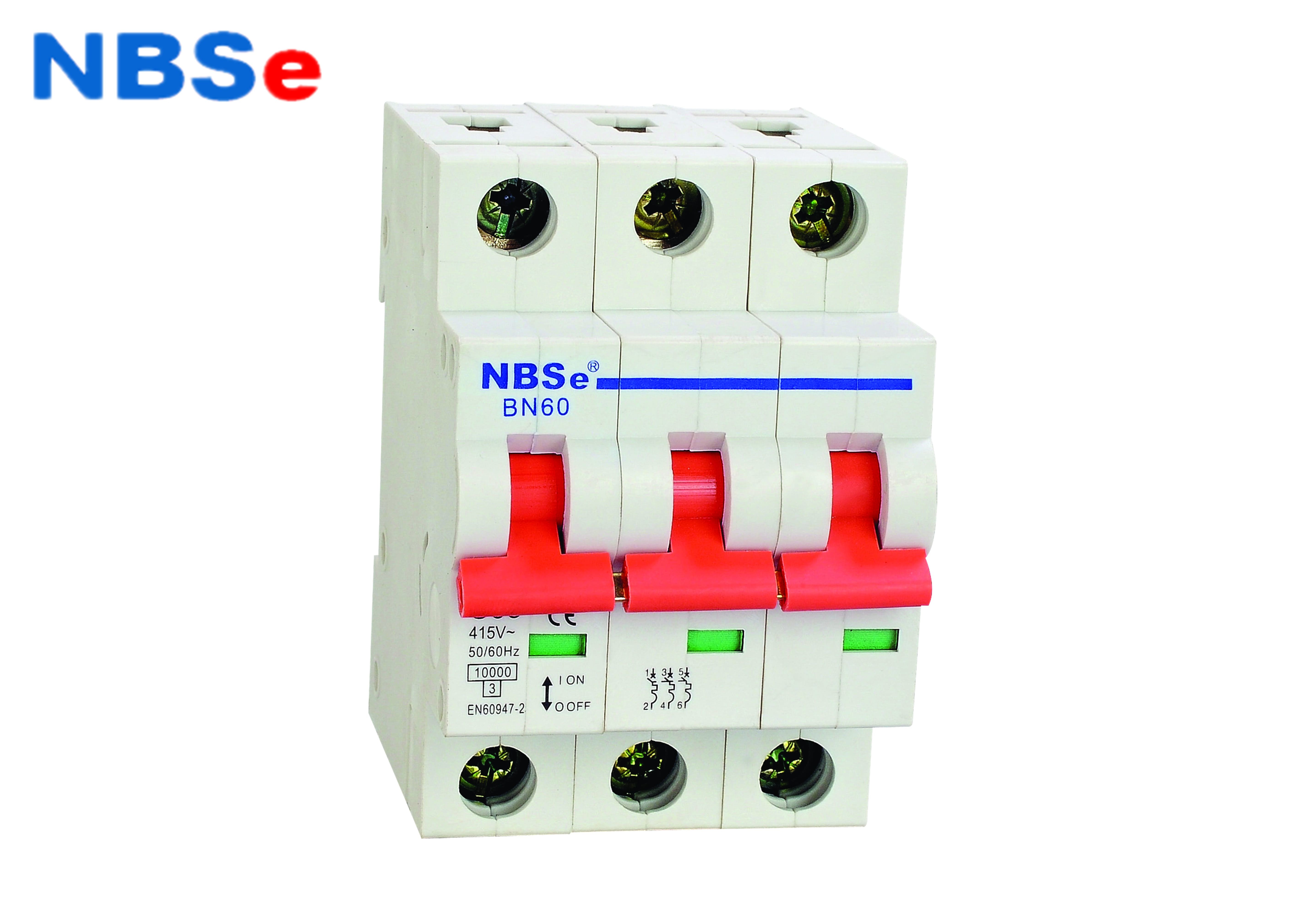

NBSe BN60 Miniature circuit breakers up to 63 A (10 kA),Industrial breaker
1. Application
The product is mainly used in AC50/60Hz single pole230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl
the product is suitable for industry,business,building,ressidence,etc.
It's conformity with GB10963,IEC60898 standards.
2. Main technical data
1. Rated current:1,2,3,4,6,10,16,20,25,32,40,50,63A;
2. Tripping characteristics:B(3-5)In,C(5-10)In,D(10-15)In;
3. No. of pole:1P,2P,3P,4P
4. Breaking capacity: 10KA;
Standard | IEC60898 | |
Number of poles | 1P,2P,3P,4P | |
Rated current(In) | 6,10,16,20,25,32,40,50,63 | |
Rated voltage(Un) | AC240/415V | |
Rated frequency | 50/60Hz | |
Tripping curve | B,C,D | |
Release action characteristics | Time delay | 1.13In>1h Non-trip |
1.45In<1h trip | ||
2.55In 1s~60S trip | ||
Instantaneous(Curve C) | 5In >0.1s Non-trip | |
10In<0.1s trip | ||
Magnetic releases operate | B curve:between 3 and 5In | |
C curve :between 5 and 10In | ||
D curve: between 10 and 15In | ||
Ratedbreaking capacit(Lcn) | 10000A | |
Endurance | >2500 | |
Circumstance temperature | -5~+40 | |
Electrical life | >6000times | |
Mechanical life | 20000 times | |
Tropical ration | Treatmen 2(RH95%,at 55°C) | |
Protection degree | IP20 |
3. Packing Detail
1. Product Net weight: 100g/pole
2. Packing quantity& Weight: 12 pole /box, 20 box/carton, 240 pole/carton .
3. N.W: 23KG/carton
4. G.W:24KG/carton
5. Packing Measurement: inner box 22.5×9×8 cm, Carton 45×23.5×33.5 cm ( ie 0.036 cbm)
6. 20 foot container (26 cbm): 19,2000 pole ,800 cartons
7. 40 foot container (54 cbm): 38,4000 pole, 1600 cartons
