|Rated Voltage:||220V/440V||Breaking Capacity:||6KA|

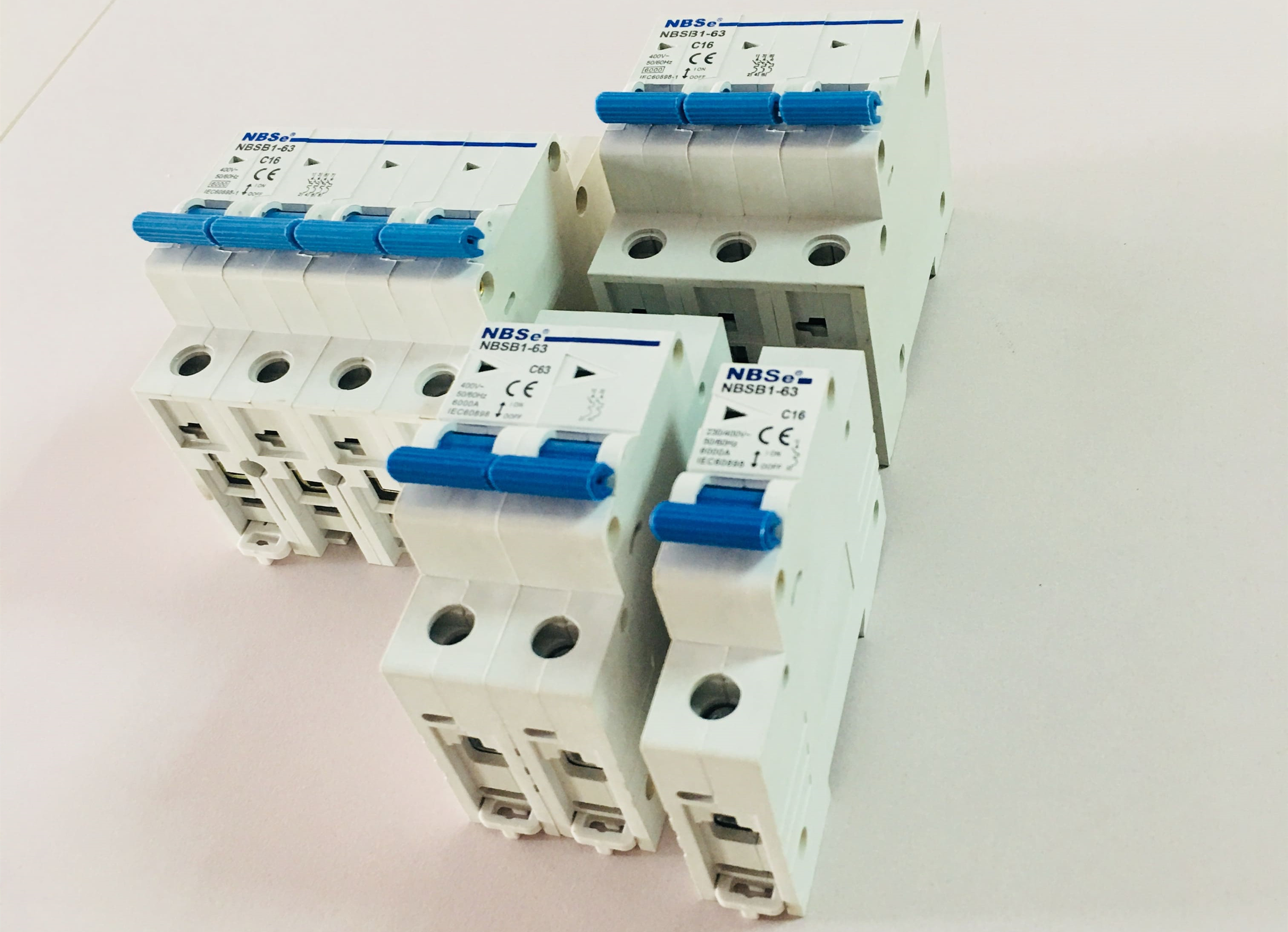

|Poles Number:||1P 2P 3P 4P||Application:||Circuit-breaking,Homes,buildings,industrial|
|Product Type:||Miniature Circuit Breaker,Auotomotive Circuit Breaker|
small circuit breaker,
electrical circuit breaker

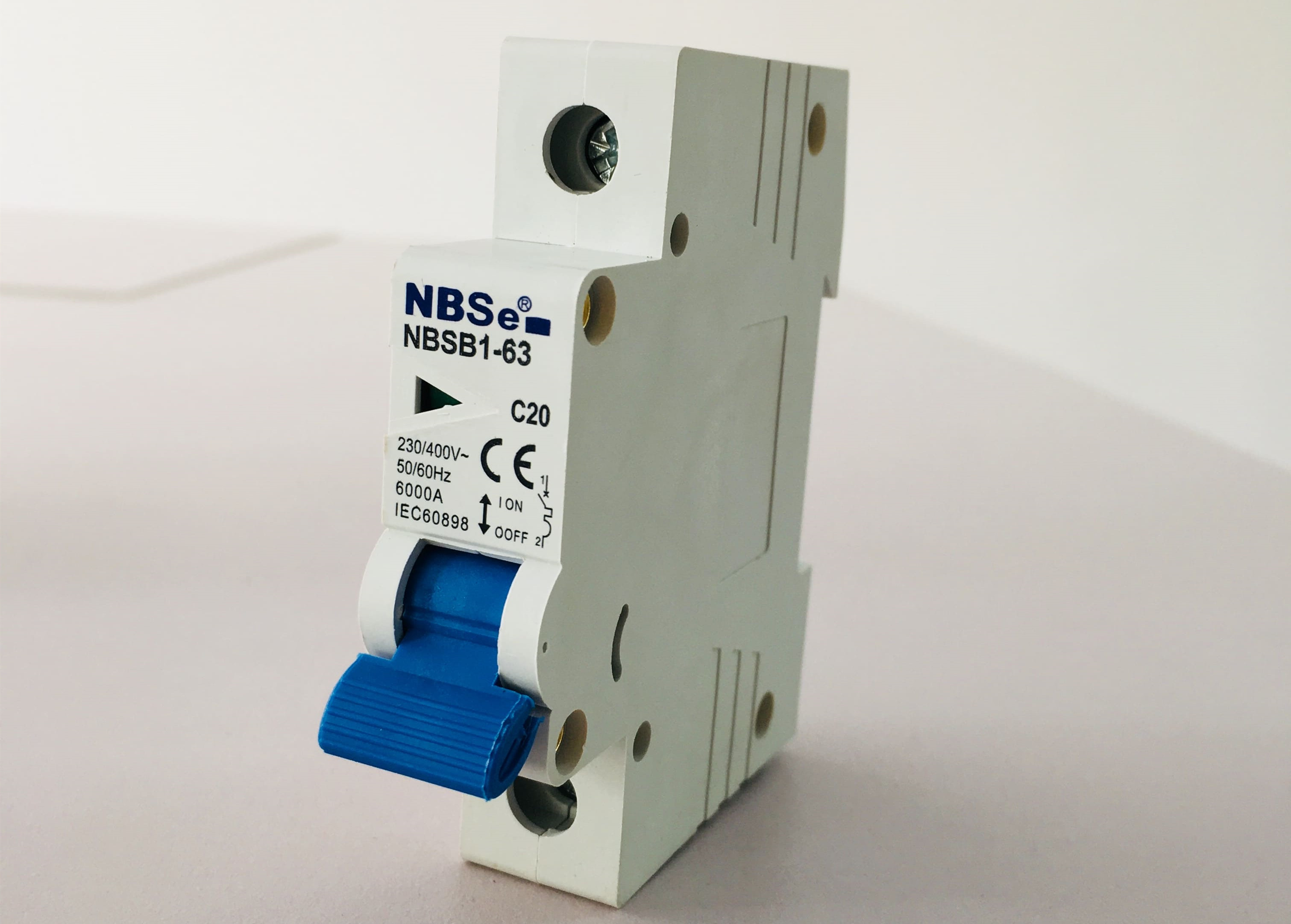

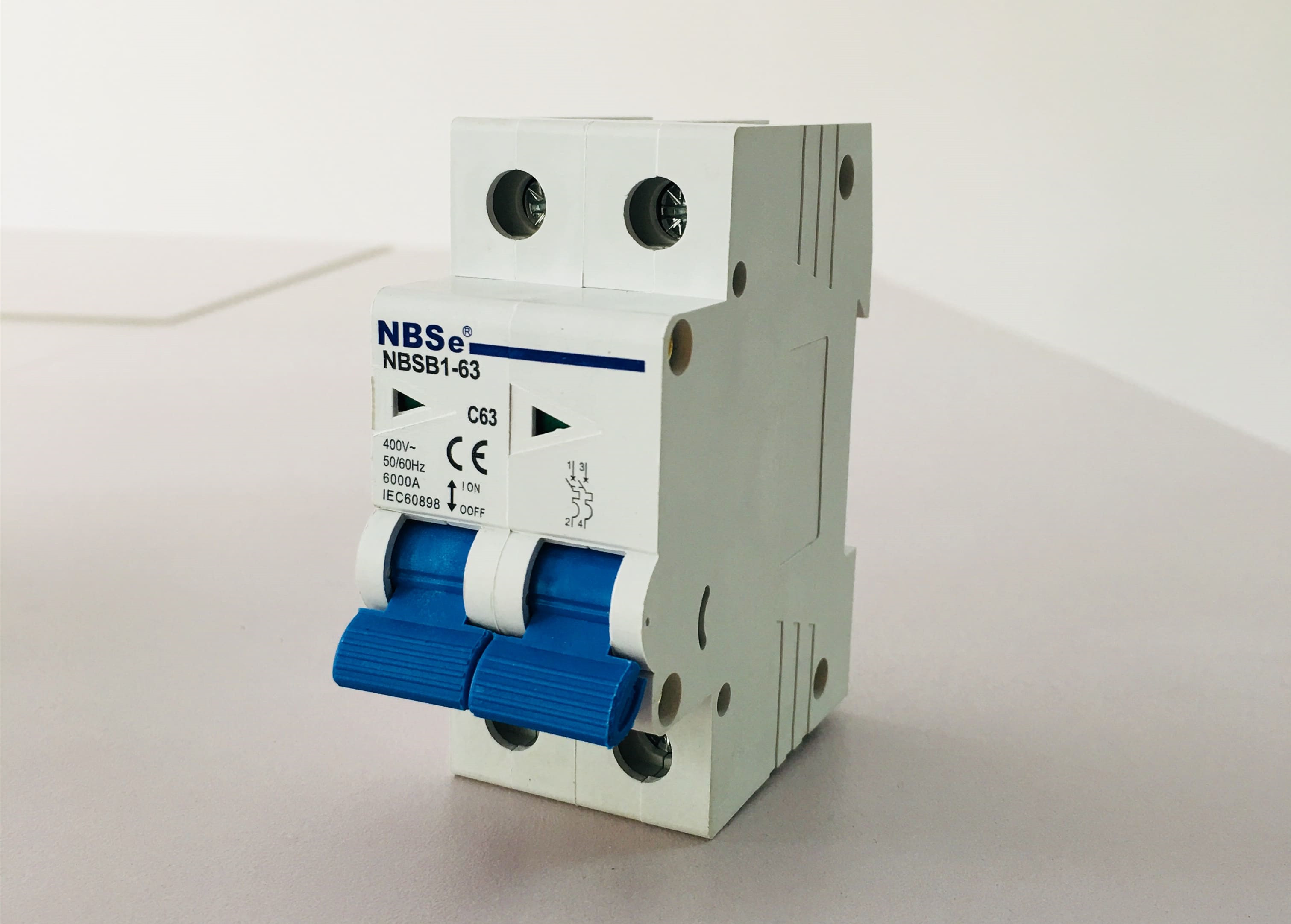

NBSe NBSB1-63 Series Mini Circuit Breaker, types of mcb
NBSB1-63 is mainly used in AC50/60Hz single pole 230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl
the product is suitable for industry,business,building,ressidence,etc.
It's conformity with CE GB10963,IEC60898 EN898 standards.
A mini circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by overload or short circuit. Its basic function is to detect a fault condition and interrupt current flow. Unlike afuse, which operates once and then must be replaced, a circuit breaker can be reset (either manually or automatically) to resume normal operation. Circuit breakers are made in varying sizes, from small devices that protect an individual household appliance up to large switchgear designed to protect high voltage circuits feeding an entire city.
2. Main technical data
|Rated temperature 40C|
|Rated voltage 230V/400V AC|
|Rated current: 6,10,15,16,20,25,32,40,50,60,63A (D):1,3,5,6,10,15,16,20,25,32,40A,50A,63A|
|Electric endurance not lower than 6000 times|
|Mechanical endurance lower than 20000 times|
|Tropical test:2 kinds|
|Standard||Rated current (A)||Pole||Voltage (V)||Breaking capacity(A)|
|EN898 IEC898||1 to 40||1||240||6000|
|IEC157-1||1 to 40||1||220/240||6000|
3. Product show
Material: unti-fire Nylon PA66, Copper and silver point.
4. The over-current protection property
|Ambient Temperature||Initial Status||Test Current||Expected Result||Expected Result||Note|
|Carried out immediatelyafter previous test||1.45In||t < 1h||Release||-|
|Cold position||2.55In||1s < t< 60s(In≥32A)||Release||Current smoothly rises tospecified value within 5s|
|Cold position||2.55In||1s < t < 120s(In>32A)||Release|
|-5~+40oC||Cold position||3In||t≥0.1s||Non-release||Type B|
|Cold position||5In||t < 0.1s||Release||Type B|
|Cold position||5In||t≥0.1s||Non-release||Type C|
|Cold position||10In||t < 0.1s||Release||Type C|
|Cold position||10In||t≥0.1s||Non-release||Type D|
|Cold position||20In||t < 0.1s||Release||Type D|
