Rated Voltage: | 220V/440V | Breaking Capacity: | 6KA |
---|---|---|---|
Rated Frequency: | 50/60Hz | Standard: | IEC/EN60898 |
Port: | Ningbo/Shanghai | Lead Time: | 10-20days |
Poles Number: | 1P 2P 3P 4P | Application: | Circuit-breaking,Homes,buildings,industrial |
Product Type: | Miniature Circuit Breaker,Auotomotive Circuit Breaker | ||
High Light: | miniature circuit breakers,electrical circuit breaker |

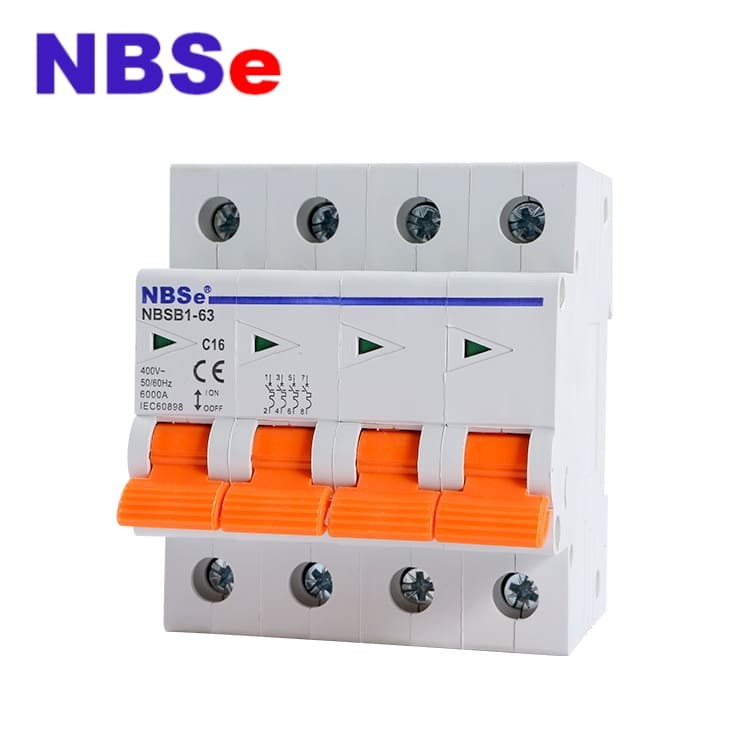

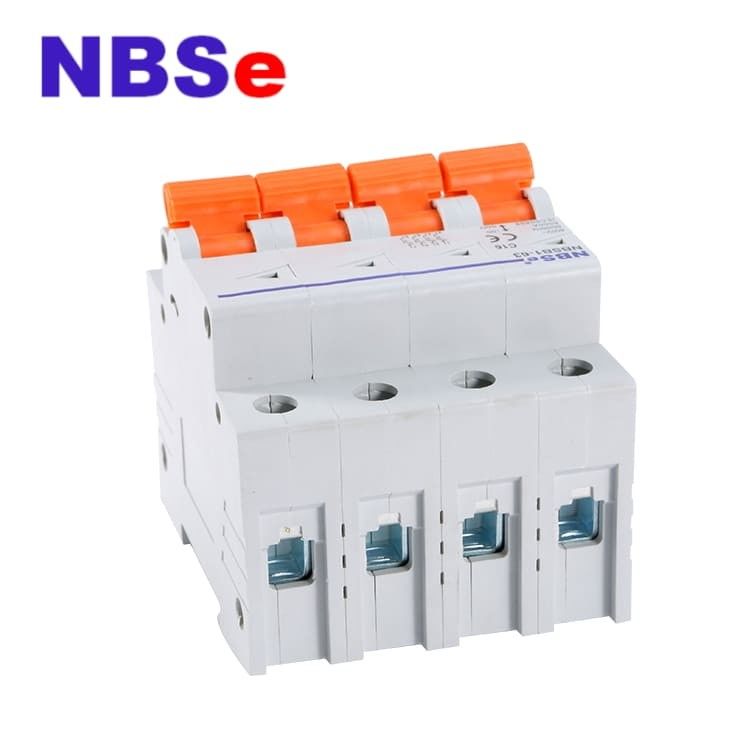

NBSe NBSB1-63 Series 4P 16A Mini Circuit Breaker, electrical circuit breaker
Main Feature
1. High breaking capacity up to 6KA
2. Small dimension and one modular quantity with
3. Wise current scope up to 40KA
4. Performace of the functions of overload and short-circuit protection.
5. Suitable for protection to the civil lighting and socket circuit. The neutral line break for safer and more reliable
1. Application
NBSB1-63 is mainly used in AC50/60Hz single pole230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl
the product is suitable for industry,business,building,ressidence,etc.
It's conformity with CE GB10963,IEC60898 EN898 standards.
2. Main technical data
Rated temperature 40C | ||||
Rated voltage 230V/400V AC | ||||
Rated current: 6,10,15,16,20,25,32,40,50,60,63A (D):1,3,5,6,10,15,16,20,25,32,40A,50A,63A | ||||
Electric endurance not lower than 6000 times | ||||
Mechanical endurance lower than 20000 times | ||||
Tropical test:2 kinds | ||||
Weight(g) | 1P | 2P | 3P | 4P |
100 | 202 | 304 | 406 |
Standard | Rated current (A) | Pole | Voltage (V) | Breaking capacity(A) |
EN898 IEC898 | 1 to 40 | 1 | 240 | 6000 |
2,3,4 | 415 | 6000 | ||
IEC157-1 | 1 to 40 | 1 | 220/240 | 6000 |
2,3,4 | 220/240 | 6000 | ||
2,3,4 | 380/415 | 6000 |
3. Product show
Material: unti-fire Nylon PA66, Copper and silver point.
4. The over-current protection property
Ambient Temperature | Initial Status | Test Current | Expected Result | Expected Result | Note |
30±2oC | Cold position | 1.13In | t≥1h | Non-release | - |
Carried out immediatelyafter previous test | 1.45In | t < 1h | Release | - | |
Cold position | 2.55In | 1s < t< 60s(In≥32A) | Release | Current smoothly rises tospecified value within 5s | |
Cold position | 2.55In | 1s < t < 120s(In>32A) | Release | ||
-5~+40oC | Cold position | 3In | t≥0.1s | Non-release | Type B |
Cold position | 5In | t < 0.1s | Release | Type B | |
Cold position | 5In | t≥0.1s | Non-release | Type C | |
Cold position | 10In | t < 0.1s | Release | Type C | |
Cold position | 10In | t≥0.1s | Non-release | Type D | |
Cold position | 20In | t < 0.1s | Release | Type D |
