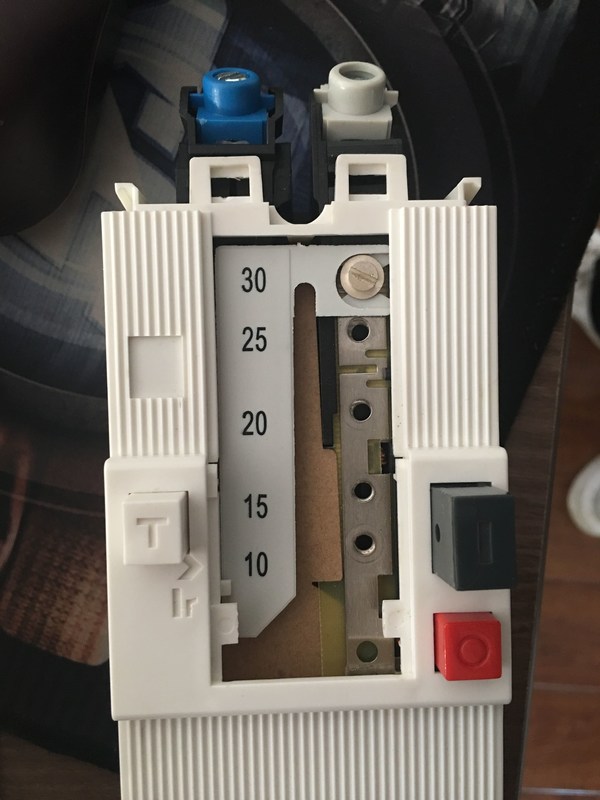

Nbse 2fils 4 Fils PG 4 Pole MCCB Circuit Breaker , Earth Leakage Device

NBSe 2fils 4 fils PG 10-30A 30-60A France disjoncteur 500mA circuit breaker

specifictions

CE,CERTIFICATED
.Quality guarantees 2 years
.Professional manufacture for more than 20 years
We can supply all kinds of MCCB ODM and OEM orders are welcome.

1) Applicable circuit: AC 50Hz (or 60Hz)

2) Rated insulation voltage: 690V

3) Rated operating voltage: up to 660V (690V)

4) Rated operating voltage: up to 250V(DC)

5) Rated operating current: 63A-800A

6) For distributing energy of electricity and infrequent making and breaking circuit, and infrequent starting of motor (rated operating current up to 800A)

7) At normal condition they are provided with the function of protection against overload and short-circuit and under-voltage

8) MCCB complies with standard of IEC947-2

9) Number of poles: 3P, 4P

10) Weight: 1.5kg

11) Automatic tripping device: hydraulic magnetic

12)Inner Box Packing

PG series adjustable residual current breaker(gardy rccb,gardy elcb)is suitable for AC 50/60Hz,230/400V circuit,prevents from overloading,short-circuit etc.On the occasion of shock hazard or earth leakage,it will trip immediately.At the same time,the rated current of overload protection can be adjustable.

africa type 2p/4p adjustable PG type earth leakage circuit breaker

2-pole PG circuit breaker

(1 phase + N)
15A (5/10/15) ,230V, PG MCCB: PG215000, PG215300, PG215500
30A (10/15/20/25/30) ,230V,PG breaker: PG230000, PG230300, PG230500
45A (15/30/45) ,230V, PG Moulded Case Circuit Breaker : PG245000, PG245300, PG245500
60A (30/45/60) ,230V,PG circuit breaker: PG260000, PG260300, PG260500

4-pole PG MCCB

(3 phase + N)

30A (10/15/20/25/30) ,400V,PG breakers : PG430000, PG430400, PG430500,
60A (30/45/60) , 400V,PG circuit breakers: PG460000, PG460300, PG460500

Our item number of PG 230,PG430 circuit breaker:

PG215000: 2pole 15A current without leakage current

PG215300, 2pole 15A current with 300mA leakage current

PG215500, 2pole 15A current with 500mA leakage current

PG230000, 2pole 30A current without leakage current

PG230300, 2pole 30A current with 300mA leakage current

PG230500, 2pole 30A current with 500mA leakage current

PG245000, 2pole 45A current without leakage current

PG245300, 2pole 45A current with 500mA leakage current

PG245500, 2pole 45A current with 500mA leakage current

PG260000, 2pole 60A current without leakage current

PG260300, 2pole 60A current with 300mA leakage current

PG260500, 2pole 60A current with 500mA leakage current

PG430000, 4pole 30A current without leakage current

PG430300, 4pole 30A current with 300mA leakage current

PG430500, 4pole 30A current with 500mA leakage current

PG460000, 4pole 60A current without leakage current

PG460300, 4pole 60A current with 300mA leakage current

PG460500, 4pole 60A current with 500mA leakage current

Our Services

(1) Warranty ( 24 months warranty )

1. The warranty starts from the delivery date from our factory;

2. During the warranty, any defective product will get repaired or replaced for free ;

3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.

(2) Lead Time

1. Sample orders will be delivered from our factory within 7 working days.

2. General orders will be delivered from our factory within 7-15 working days.

3. Bulk orders will be delivered from our factory within 25 working days at most

(3) Shippment

1. By EMS, DHL, FedEx, TNT, UPS or other express.

2. By our forwarding agent (by air or by sea).

3. By your own forwarding agent.

4. By domestic forwarding agents to any city in China
