| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NBSE/OEM |
| Certification: | CE, ISO9000 |
| Model Number: | PG |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | Export Carton |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30,000pcs per month |
| Type: | Molded Case | Poles: | 2P |
|---|---|---|---|
| Rated Voltage: | 220V/240V | Rated Current: | 5-60A,Adjustable |
| Leakage Operating: | 300mA, 500mA | Standard: | NFC62411 |
| Shell: | Fire-proof | ||
| High Light: | mccb circuit breaker,thermal circuit breaker |
||

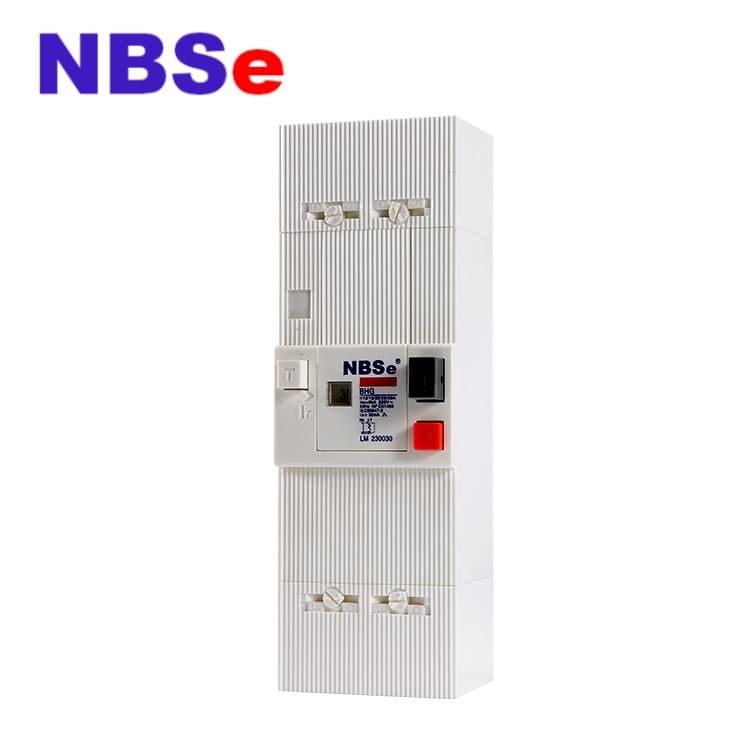

NBSe africa type 2p/4p adjustable PG type earth leakage circuit breaker
The DDC breaker is divided into 2 poles and 4 poles. It can be applied to the circuit breaker installed on the control panel of the primary equipment, and can also be applied to the control terminal of the shopping mall, base station and home power supply board.
Feature
1)This product has a high level of safety protection.
2)Not affected by ambient temperature.
3)Multi-step adjustable of rated current.
4)Rated current digital display.
5)With anti-stealing function
Specifictions
CE,CERTIFICATED
Quality guarantees 2 years
Professional manufacture for more than 20 years
We can supply all kinds of MCCB ODM and OEM orders are welcome.
1) Applicable circuit: AC 50Hz (or 60Hz)
2) Rated insulation voltage: 690V
3) Rated operating voltage: up to 660V (690V)
4) Rated operating voltage: up to 250V(DC)
5) Rated operating current: 63A-800A
6) For distributing energy of electricity and infrequent making and breaking circuit, and infrequent starting of motor (rated operating current up to 800A)
7) At normal condition they are provided with the function of protection against overload and short-circuit and under-voltage
8) MCCB complies with standard of IEC947-2
9) Number of poles: 3P, 4P
10) Weight: 1.5kg
11) Automatic tripping device: hydraulic magnetic
12)Inner Box Packing
PG series adjustable residual current breaker(gardy rccb,gardy elcb)is suitable for AC 50/60Hz,230/400V circuit,prevents from overloading,short-circuit etc.On the occasion of shock hazard or earth leakage,it will trip immediately.At the same time,the rated current of overload protection can be adjustable.

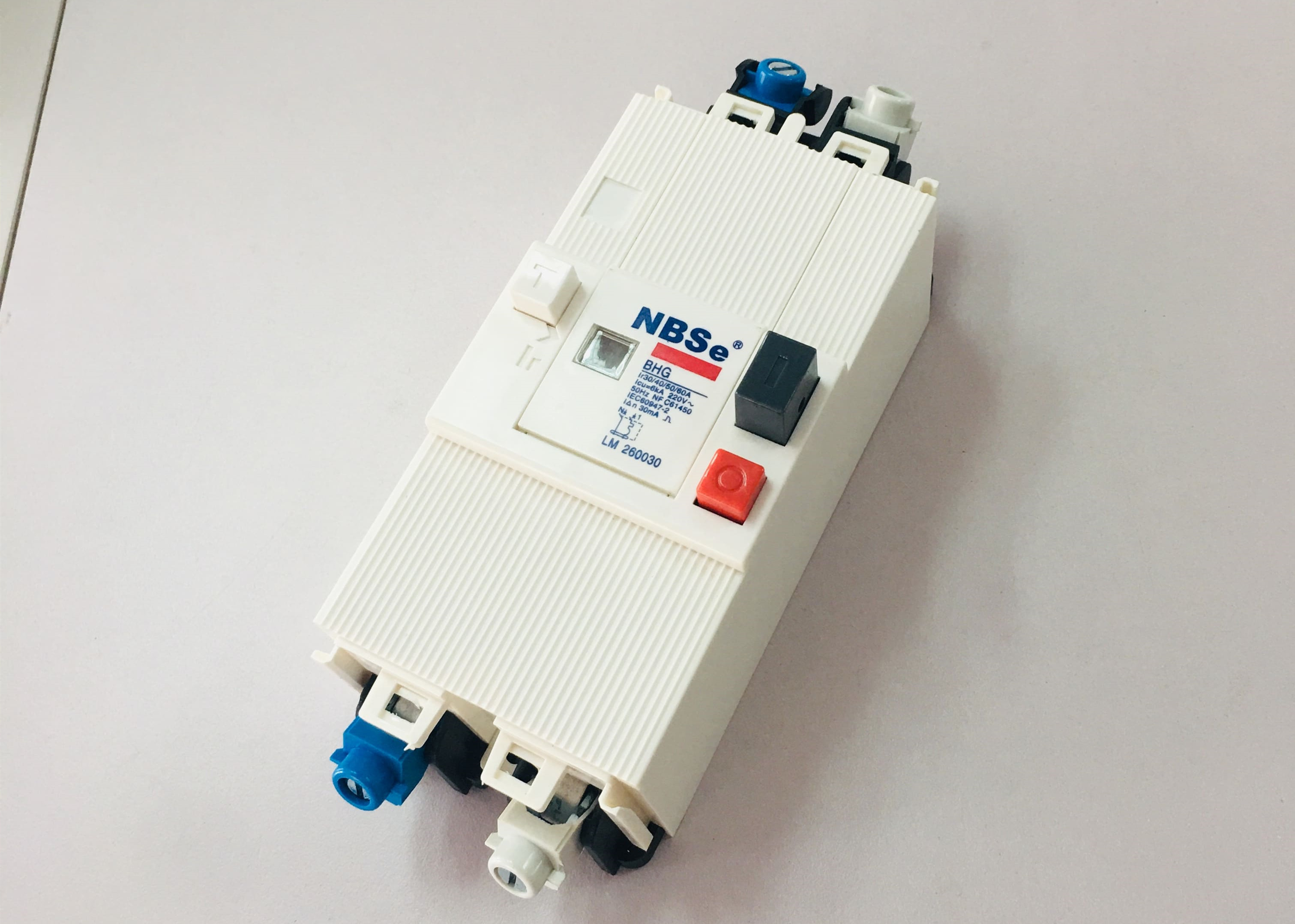

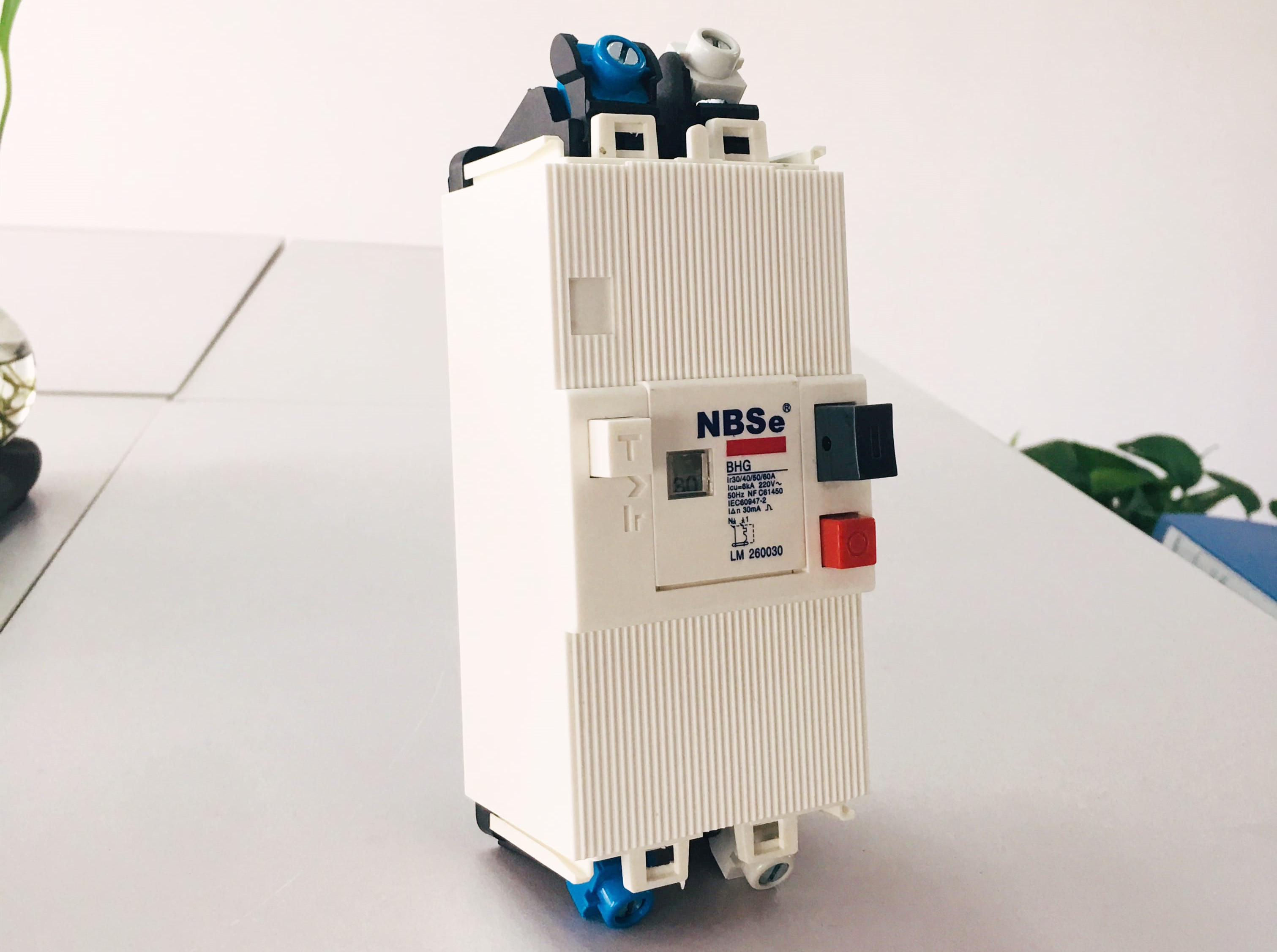

africa type 2p/4p adjustable PG type earth leakage circuit breaker
| Type | PG230 | PG430 | |
| Poles | 2P | 4P | |
| Rated Voltage (V) | 250V/440V | ||
| Rated Current (A) | 10,15,20,25,30,45,50,60A Adjustable | ||
| Leakage Motion Current (mA) | 300mA, 500mA | 300mA, 500mA | |
| Leakage Dead Current (mA) | 150mA, 250mA | 150mA, 250mA | |
