| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NBSE/OEM |
| Certification: | CE, ISO9000 |
| Model Number: | PG |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | Export Carton |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30,000pcs per month |
| Type: | Molded Case | Poles: | 2P, 4P |
|---|---|---|---|
| Rated Voltage: | 220V/240V | Rated Current: | 5-10-15A;10-15-20-25-30A;30-40-50-60A |
| Leakage Operating: | 300mA, 500mA | Standard: | NFC61450 |
| Shell: | Fire-proof | ||
| High Light: | mccb circuit breaker,thermal circuit breaker |
||
baco circuit breaker, TG residual current circuit breaker

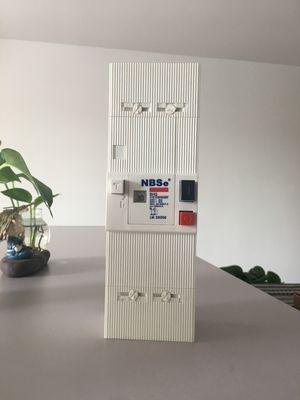

TG BACO RCCB
USED for AC 50/60HZ
CE AND ISO9000
OEM PRCESSING
BHG Breaker are suitable in AC 50Hz, 250/440V circuit with overload and earth leakage protection. The rated current is adjustable from 10A up to 60A. User can select suitable current to better protection against overload and short circuit. The products comply with NFC 61450.
Features
a) A compact and diversified range
b) All the 2 and 4 poles devices have the same depth and the overall
dimensions are reduced according to the 4 poles version
c) Consumer combined circuit breaker: 2 and 4 poles 500mA, 500mA
selective () and non residual current circuit breaker
d) Ratings from 15A to 90A
e) Residual current circuit breaker: 2 and 4 poles 30mA, 300mA and
500mA
f) Ratings from 5A to 63A
| Type | BHG230 | BHG430 |
| Poles | 2P | 4P |
| Rated Voltage (V) | 250V/440V | |
| Rated Current (A) | 10,15,20,25,30,45,50,60A Adjustable | |
| Leakage Motion Current (mA) | 300mA, 500mA | 300mA, 500mA |
| Leakage Dead Current (mA) | 150mA, 250mA | 150mA, 250mA |
| According with Standard | NFC61450 | |
5. Our Services
(1) Warranty ( 24 months warranty )
1. The warranty starts from the delivery date from our factory;
2. During the warranty, any defective product will get repaired or replaced for free ;
3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.
(2) Lead Time
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Bulk orders will be delivered from our factory within 25 working days at most
(3) Shippment
1. By EMS, DHL, FedEx, TNT, UPS or other express.
2. By our forwarding agent (by air or by sea).
3. By your own forwarding agent.
4. By domestic forwarding agents to any city in China
