NBSe DZ47-63 1P 40A Electrical Micro Circuit Breakers, type c breaker

Basic Information
Place of Origin: CHINA
Brand Name: NBSe/OEM
Certification: CE,CCC
Model Number: DZ47
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: 240pcs/ctn
Delivery Time: 10-20days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 400,000pcs per month
Detail Information
Pole: 1P Material: PA66
Application: Distribution Power System Rated Voltage: 220V/440V
Color: Grey Rated Frequency: 50/60Hz
Current: 40A Standard: IEC60898
High Light:

miniature circuit breakers

,

small circuit breaker


Product Description

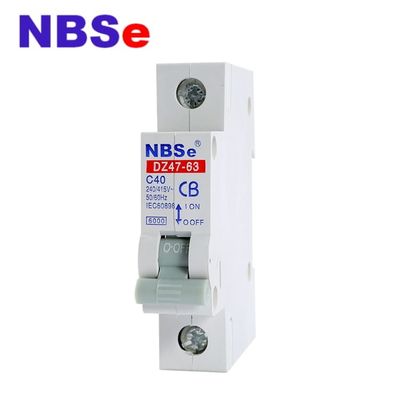

NBSe DZ47-63 Electrical Micro Circuit Breakers, type c breaker



Product Description



1. Themosetting material shell, high stability of Mechanical property and size, Excellent corrosion resistance, and Heat resistance and arc resistance
2. Beautiful appearance, exquisite results, quick tripping, din rail mounting
3. Breaking capacity up to 10000A
4. Optimal design for contact system and trip mechanism
5. Special arc-extinguishing design, More perfect
6. High reliability and long use life



Application



The product is mainly used in AC50/60Hz single pole230V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl

the product is suitable for industry,business,building,ressidence,etc.

It's conformity with GB10963,IEC60898 standards.



Main technical data



1. Rated current:1,2,3,4,6,10,16,20,25,32,40,50,63A;

2. Tripping characteristics:B(3-5)In,C(5-10)In,D(10-15)In;

3. No. of pole:1P,2P,3P,4P

4. Breaking capacity:4.5KA,6KA;



Standard   IEC60898
Number of poles   1P,2P,3P,4P
Rated current(In)   6,10,16,20,25,32,40,50,63
Rated voltage(Un)   AC240/415V
Rated frequency   50/60Hz
Tripping curve   B,C,D
Release action characteristics Time delay 1.13In>1h Non-trip
1.45In<1h trip
2.55In 1s~60S trip
Instantaneous(Curve C) 5In >0.1s Non-trip
10In<0.1s trip
Magnetic releases operate   B curve:between 3 and 5In
C curve :between 5 and 10In
D curve: between 10 and 15In
Ratedbreaking capacit(Lcn)   6000A
Endurance   >2500
Circumstance temperature   -5~+40
Electrical life   >6000times
Mechanical life   20000 times
Tropical ration   Treatmen 2(RH95%,at 55°C)
Protection degree   IP20



NBSe DZ47-63 1P 40A Electrical Micro Circuit Breakers, type c breaker 0



3.Packing Detail

1. Product Net weight: 100g/pole

2. Packing quantity& Weight: 12 pole /box, 20 box/carton, 240 pole/carton .

3. N.W: 23KG/carton

4. G.W:24KG/carton

5. Packing Measurement: inner box 22.5×9×8 cm, Carton 45×23.5×33.5 cm ( ie 0.036 cbm)

6. 20 foot container (26 cbm): 19,2000 pole ,800 cartons

7. 40 foot container (54 cbm): 38,4000 pole, 1600 cartons



4. The Over-Current Protection Property

NBSe DZ47-63 1P 40A Electrical Micro Circuit Breakers, type c breaker 1



5. Circuit breaker temperature compensation coefficient





Rated Current

In(A)

DZ47-63 Compensation coefficient at different temperatures



-10℃ 0℃ 10℃ 20℃ 30℃ 40℃ 50℃ 55℃ 60℃
1~6 1.20 1.14 1.09 1.05 1.00 0.96 0.80 0.75 0.70
10~32 1.18 1.12 1.08 1.04 1.00 0.96 0.92 0.88 0.84
40~63 1.16 1.12 1.07 1.03 1.00 0.97 0.87 0.83 0.80





6. Correction factor of current used by circuit breakers at different altitudes



Tripping type Rated Current ≤2000m 2000~3000m ≥3000m Eg.



C,D



1~63A



1



0.9



0.8

The rated current 32A product is used after 3200m derating. The current is: 0.8×10=8A
