|Type:||Lighting "C"or Motor"D"||Poles Number:||1-4P|
|Breaking Capacity:||6KA||Rated Frequency:||50/60Hz|
small circuit breaker,
electrical circuit breaker

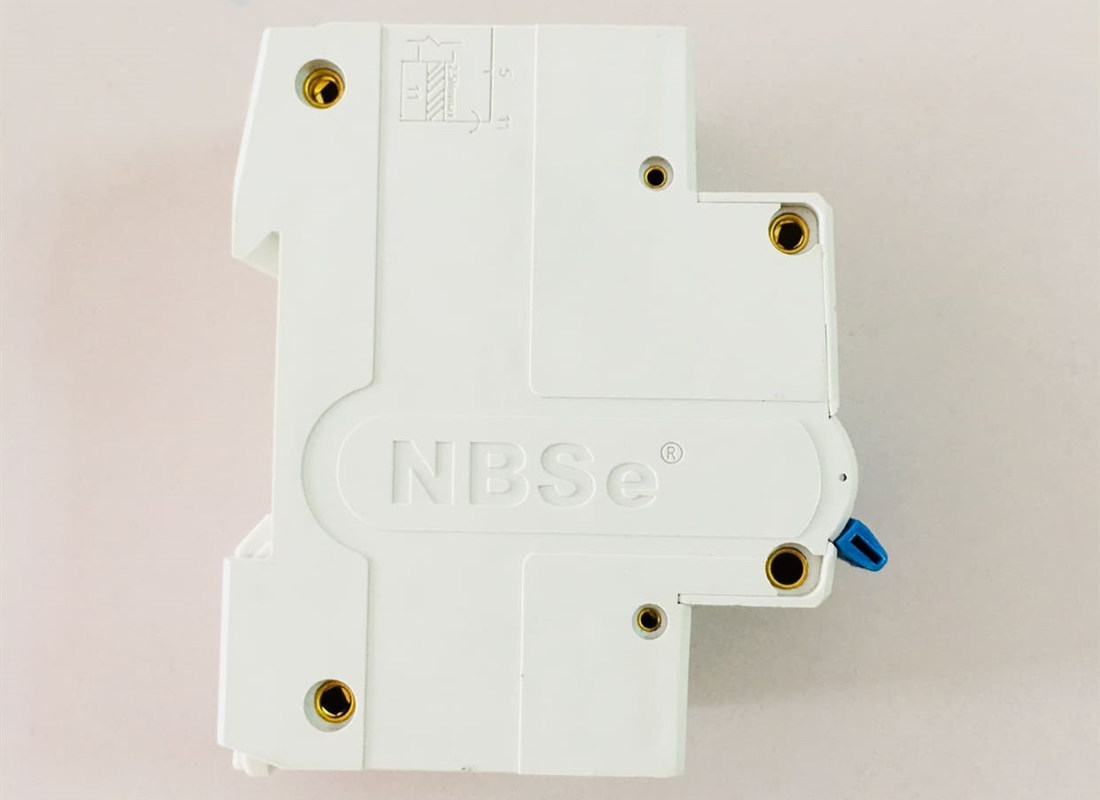

NBSe NBSX1 Series 6kA, 2P 20A Miniature Circuit Breaker
The miniature circuit breaker mcb is mainly used in AC50/60Hz single pole220V or two,three,four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal condition.
The miniature circuit breaker mcb is suitable for industry, business, building, ressidence, etc.
The miniature circuit breaker mcb is conformity with GB10963,IEC60898 standards.
2. Main technical data
|Rated temperature 40C|
|Rated voltage 230V/400V AC|
|Rated current: 6,10,15,16,20,25,32,40,50,60,63A (D):1,3,5,6,10,15,16,20,25,32,40A,50A,63A|
|Electric endurance not lower than 6000 times|
|Mechanical endurance lower than 10000 times|
|Tropical test:2 kinds|
|Standard||Rated current (A)||Pole||Voltage (V)||Breaking capacity(A)|
|EN898 IEC898||1 to 40||1||240||6000|
|IEC157-1||1 to 40||1||220/240||6000|
3. Product show
Material: unti-fire Nylon PA66, Copper and silver point.
4. The over-current protection property
|Ambient Temperature||Initial Status||Test Current||Expected Result||Expected Result||Note|
|Carried out immediatelyafter previous test||1.45In||t < 1h||Release||-|
|Cold position||2.55In||1s < t< 60s(In≥32A)||Release||Current smoothly rises tospecified value within 5s|
|Cold position||2.55In||1s < t < 120s(In>32A)||Release|
|-5~+40oC||Cold position||3In||t≥0.1s||Non-release||Type B|
|Cold position||5In||t < 0.1s||Release||Type B|
|Cold position||5In||t≥0.1s||Non-release||Type C|
|Cold position||10In||t < 0.1s||Release||Type C|
|Cold position||10In||t≥0.1s||Non-release||Type D|
|Cold position||20In||t < 0.1s||Release||Type D|
