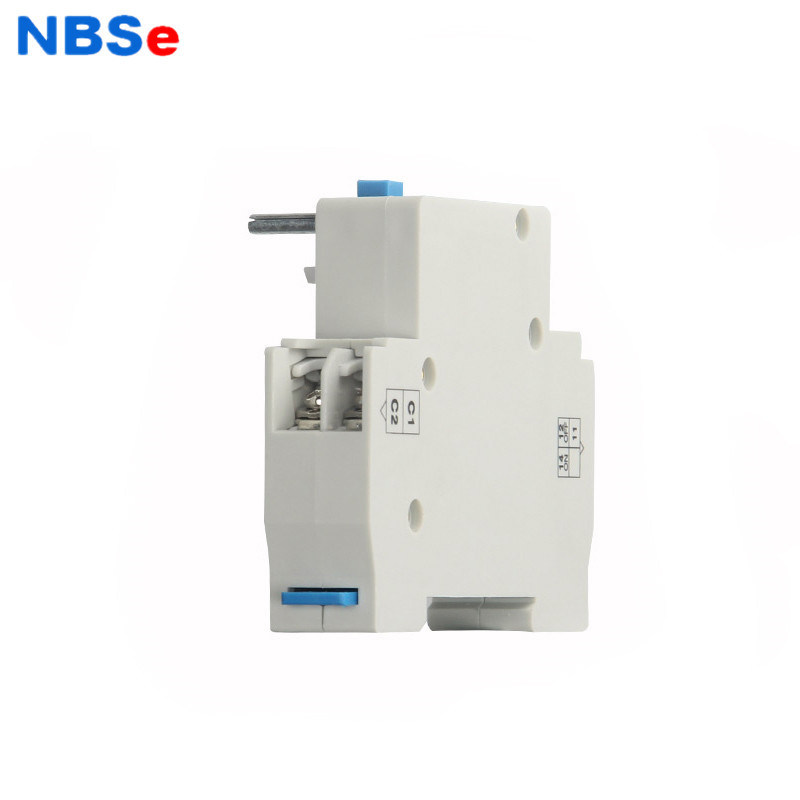

High Current Shunt Trip Device , Automotive Circuit Breaker MX+OF High Fire Resistant

Basic Information
Place of Origin: CHINA
Brand Name: NBSe/OEM
Certification: CE,CCC
Model Number: DZ47
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: 240pcs/ctn
Delivery Time: 10-20days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 400,000pcs per month
Detail Information
Triping Voltage: 220V, DC24V Breaking Capacity: 1KA
Rated Frequency: 50/60Hz Model Number: MX+OF
Item: Mini Circuit Breaker Product Name: Shunt Trip Breaker
Application: Circuit-breaking,Homes,buildings,industrial Attach To: DZ47 MCB
High Light:

shunt trip device


circuit breaker switch

Product Description

NBSe DZ47 circuit breaker breaker accessories shunt trip breaker MX+OF



High-current instantaneous tripping function: When the circuit breaker is closed or during operation, if short-circuit high current (> 20 [nm) is encountered, the magnetic tripping mechanism of the circuit breaker can be tripped directly, and the double protection is more reliable and safe;
With trip test (test) function: input DC DC12V voltage test circuit breaker action characteristics;
Fault self-diagnosis function: protect and check the working status and running quiet condition of the intelligent controller itself;



1. Specifications

MCB Accessories
1. MCB MX Shunt trip
2. Rated voltage: 125V DC, 220V AC, 300V AC, 400V AC
3. Rated current: 3A, 6A, 9A

SUPERIA NOMX Shunt trip MCB Accessories

Rated current In (A): AC: 3, 6,9
Rated voltage Ue (V):AC: 230/400 DC:24, 48, 125


2. Technical Parameter


Standard: IEC 60947-5-1
Rated current In (A): AC: 3, 6,9
DC:1, 2, 6
Rated voltage Ue (V):AC: 230/400
DC:24, 48, 125
Mechanical life:40000
Electrical life: 30000
Protection: IP20
