| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NBSe |
| Certification: | CCC,ISO9000 |
| Model Number: | NBSM7-100 |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | Export Packing |
| Delivery Time: | 10-20 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 400,000pcs per month |
| Material: | PA66 | Color: | Black/White |
|---|---|---|---|
| Type: | Mini | Rated Frequency: | 50/60Hz |
| Rated Voltage: | 110V/220V/440V | Icn: | 10kA |
| Standard: | EN/IEC60947-2 | Tripping Type: | Thermal/magnetic Release |
| Protection: | Overload And Short Circuit | Usage: | Low Voltage,Automotive,Thermal |
| Operating Temperature: | -35℃-65℃ | ||
| High Light: | plug fuse breaker,plug in type circuit breaker |
||

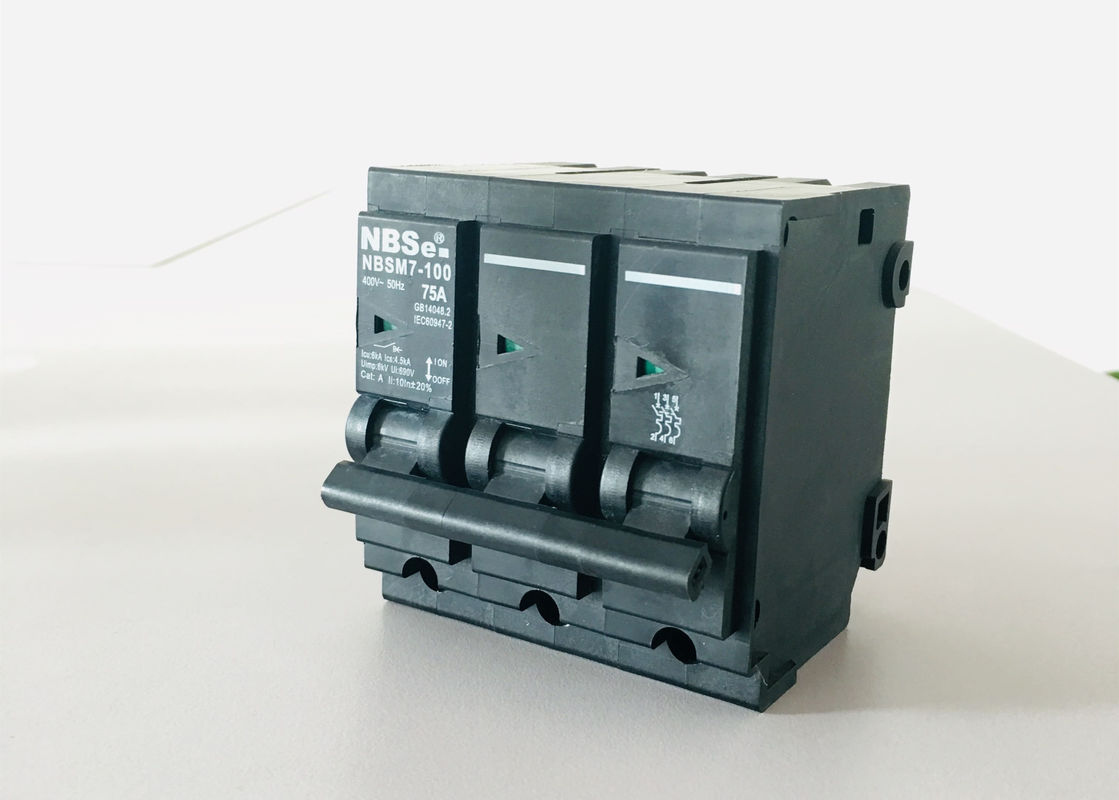

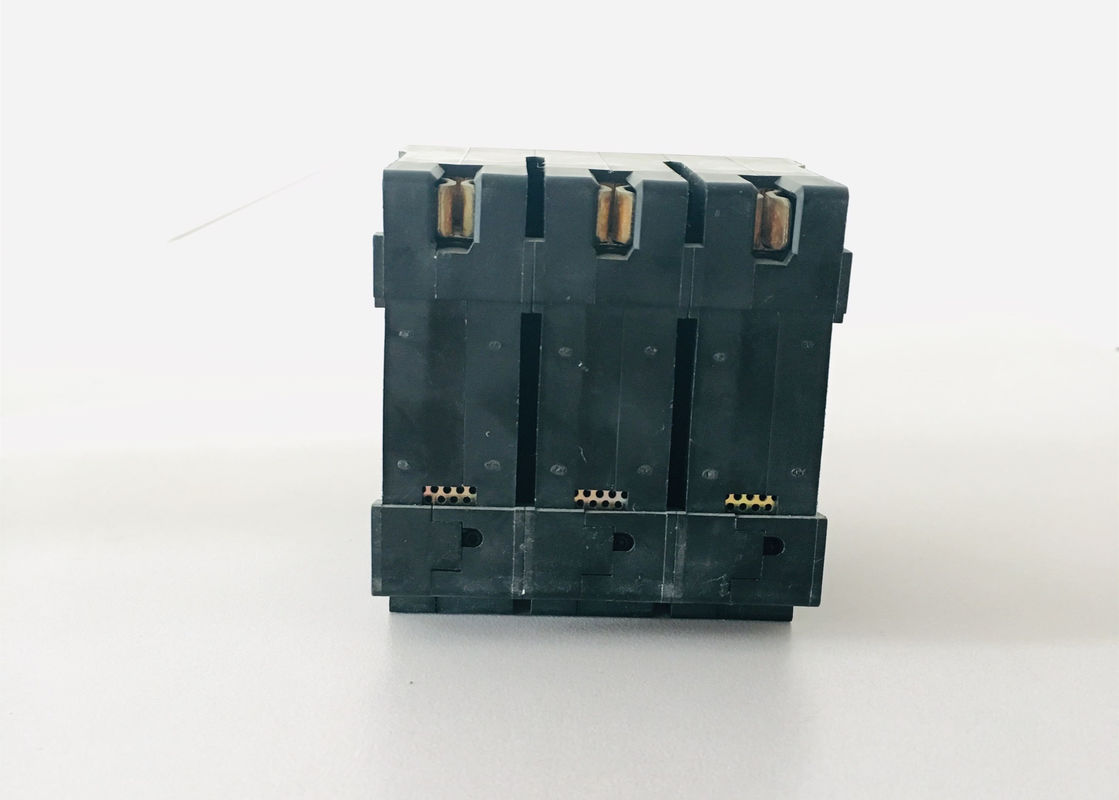

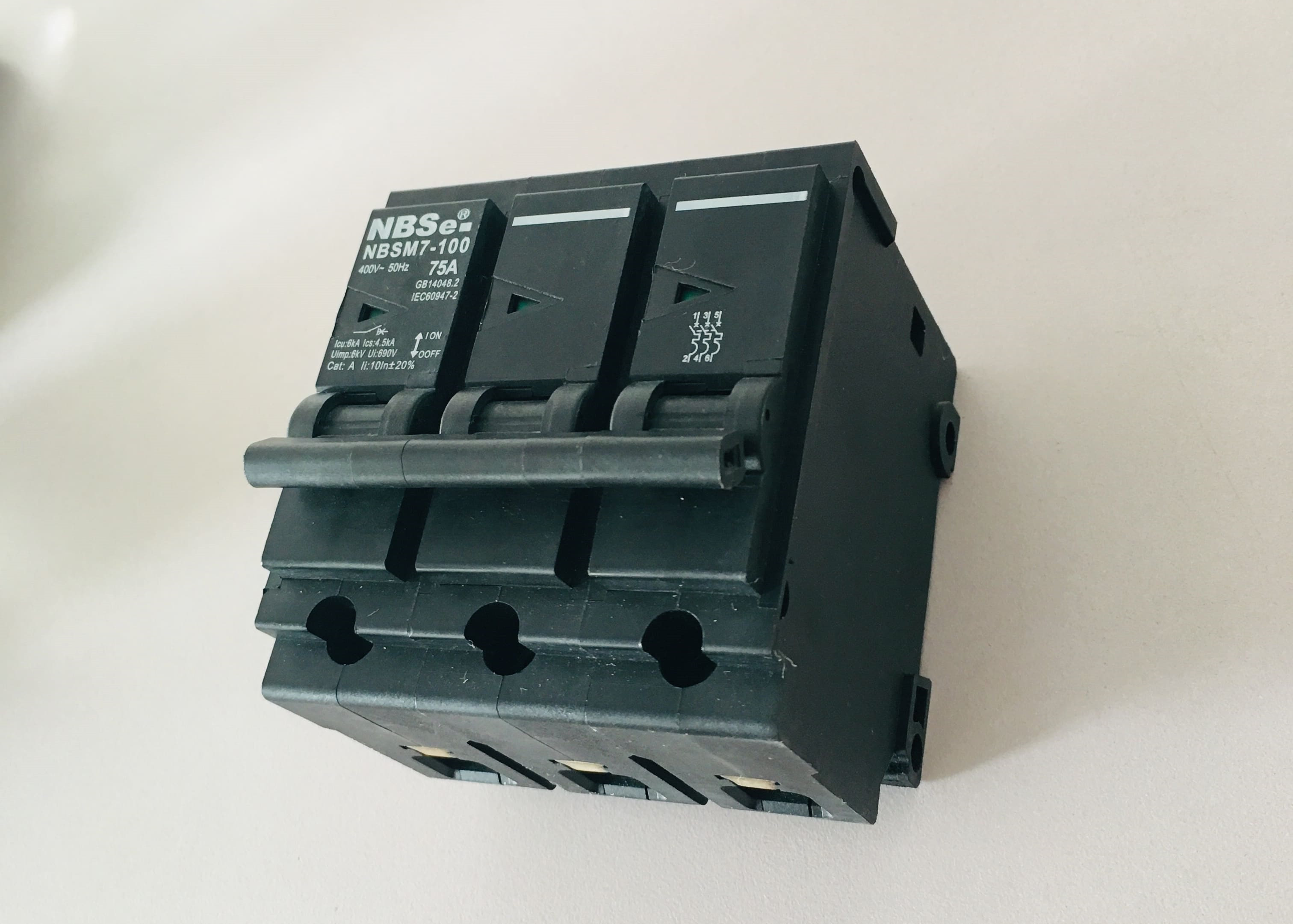

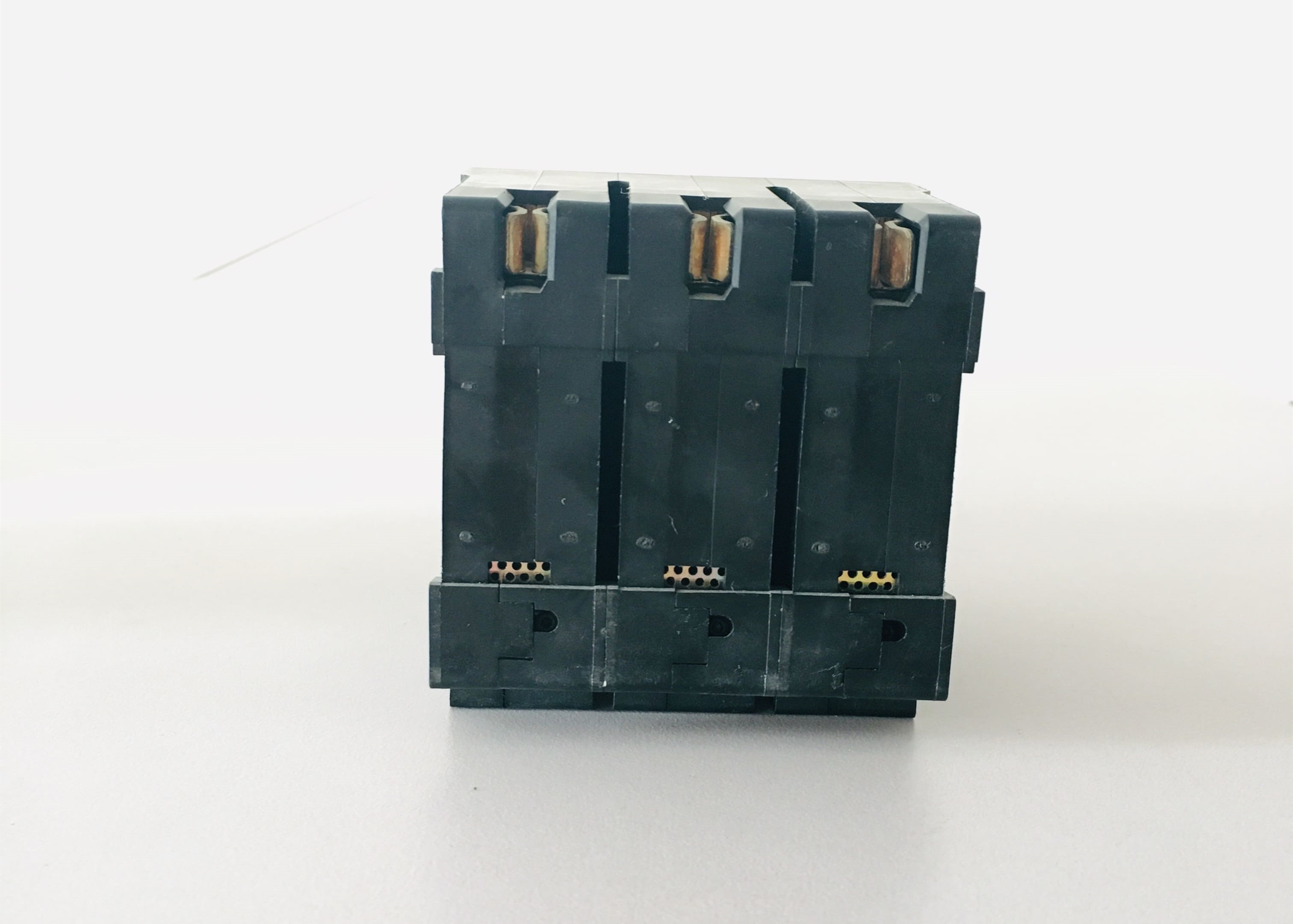

NBSe NBSM7-100 Series 3P 75A Plug-in type circuit breaker, 3 phase circuit breaker
Description:
The NBSM7-100 Plug-in type breaker is characterized by compact design, light weight, elegant appearance, high breaking capacity, swift releasing, long service life, Different handle color for different rated current, with contactor condition indicator.
1. Thermal magnetic adjustable
2. Double making & double breaking design
3.U-type fixed contact design
4. Metal parts: Cooper
5. Plastic Parts: brand-new materials
6. High breaking capacity.
7. Bearing Rotating shaft
8. The max breaking capacity of each model is up to 10 kA
9. Don't contain any noxious substances and its manufacturing and processing are performed in
accordance with the requirements of CCC,ISO9000
Applications:
| Technical Data |
| ♦ Standard:Confirming to EN / IEC60947-2 |
| ♦ Breaking capacity:10kA |
| ♦ Protection:Against overload and short circuit |
| ♦ Rated current In:15,20,30,40,50,63,80,100A |
| ♦ Rated voltage: |
| ◊ 1pole 230/400V AC 50/60Hz |
| ◊ Rated insulation voltage Ui: 500V |
| ◊ Rated impulse withstand voltage Uimp: 6000V |
| ◊ Energy limiting class: 3 |
| ♦ Ambient temperature:-5°C to +40°C pursuant to EN / IEC60947 |
| ♦ Characteristic: |
| ◊ Thermal operating limit: (1.13-1.45) x In |
| ◊ Magnetic operating: B: (3-5) x In,C: (5-10) x In,D: (10-20) x In |
| ♦ Number of poles:1P,2P,3P, 4P |
| ♦ Type of trip:Thermal / magnetic release |
| ♦ Type of terminal:Lug type and Pin type |
| ♦ Terminal capacity: |
| ◊ 16mm² flexible or 25mm² rigid up to 25A ratings |
| ◊ 25mm² flexible or 35mm² rigid for 32A to 63A ratings |
| ♦ Protection degree:IP20 |
| ♦ Installation:DIN rail |
| ♦ Width:27mm per pole |
