|Standard:||EN/IEC60947-2||Tripping Type:||Thermal Overload Protector|
|Protection:||Overcurrent Protection,overload Protector Ac||Size:||Square D|
100A air circuit breaker,
Insert wall outlet circuit breaker

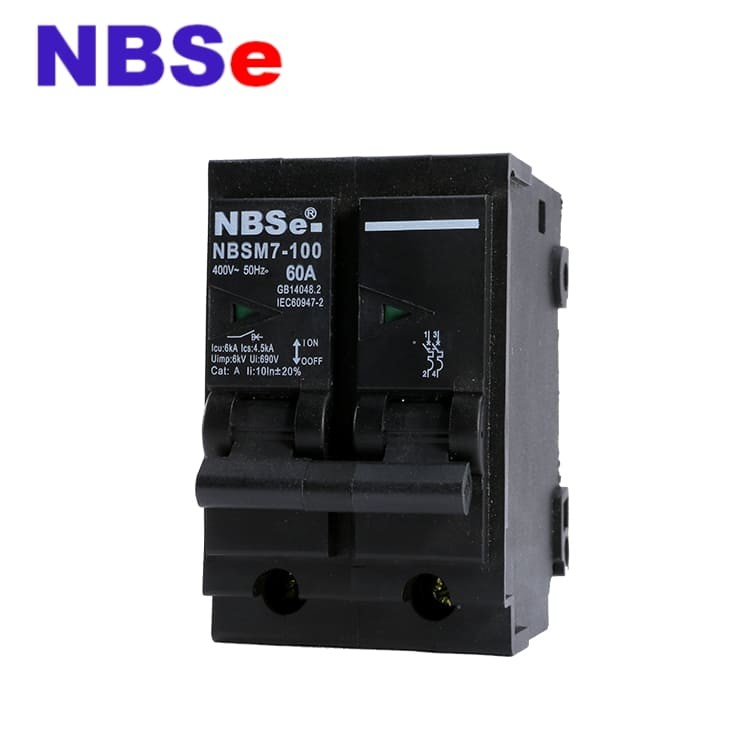

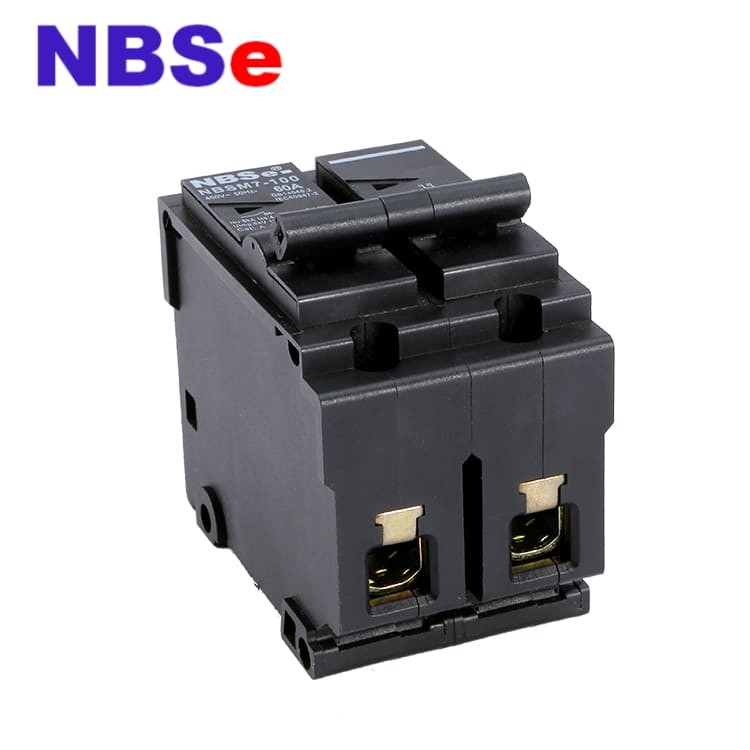

NBSM7-100 Insert Type Mini Breaker,6A-100A
The NBSM7-100 Plug-in type breaker is characterized by compact design, light weight, elegant appearance, high breaking capacity, swift releasing, long service life, Different handle color for different rated current, with contactor condition indicator.
The difference between Plug-in and Fixed Circuit Breaker ?
The plug-in version makes it possible to:
|♦ Standard:Confirming to EN / IEC60947-2|
|♦ Breaking capacity:10kA|
|♦ Protection:Against overload and short circuit|
|♦ Rated current In:15,20,30,40,50,63,80,100A|
|♦ Rated voltage:|
|◊ 1pole 230/400V AC 50/60Hz|
|◊ Rated insulation voltage Ui: 500V|
|◊ Rated impulse withstand voltage Uimp: 6000V|
|◊ Energy limiting class: 3|
|♦ Ambient temperature:-5°C to +40°C pursuant to EN / IEC60947|
|◊ Thermal operating limit: (1.13-1.45) x In|
|◊ Magnetic operating: B: (3-5) x In,C: (5-10) x In,D: (10-20) x In|
|♦ Number of poles:1P,2P,3P, 4P|
|♦ Type of trip:Thermal / magnetic release|
|♦ Type of terminal:Lug type and Pin type|
|♦ Terminal capacity:|
|◊ 16mm² flexible or 25mm² rigid up to 25A ratings|
|◊ 25mm² flexible or 35mm² rigid for 32A to 63A ratings|
|♦ Protection degree:IP20|
|♦ Installation:DIN rail|
|♦ Width:27mm per pole|
(1) Warranty ( 24 months warranty )
1. The warranty starts from the delivery date from our factory;
2. During the warranty, any defective product will get repaired or replaced for free ;
3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.
(2) Lead Time
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Bulk orders will be delivered from our factory within 25 working days at most
