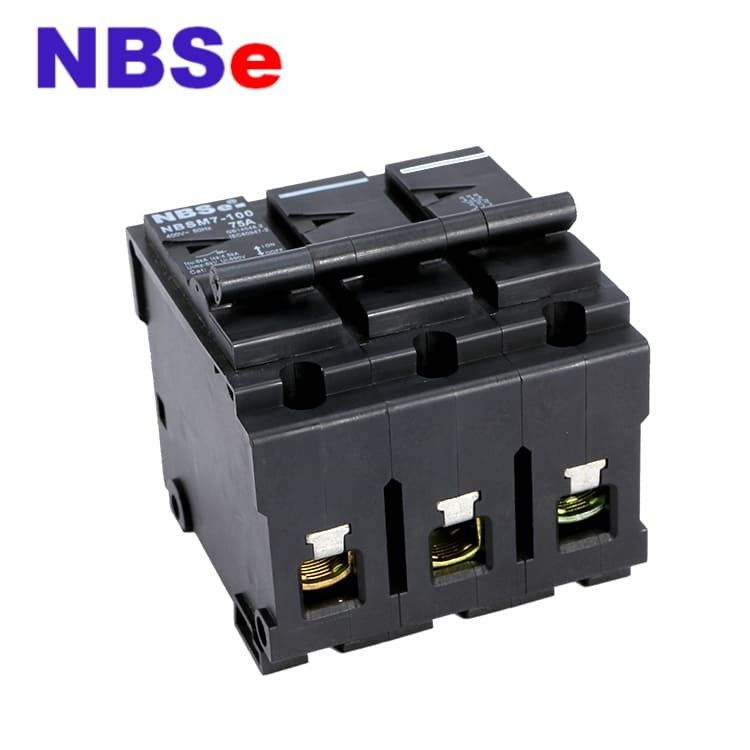

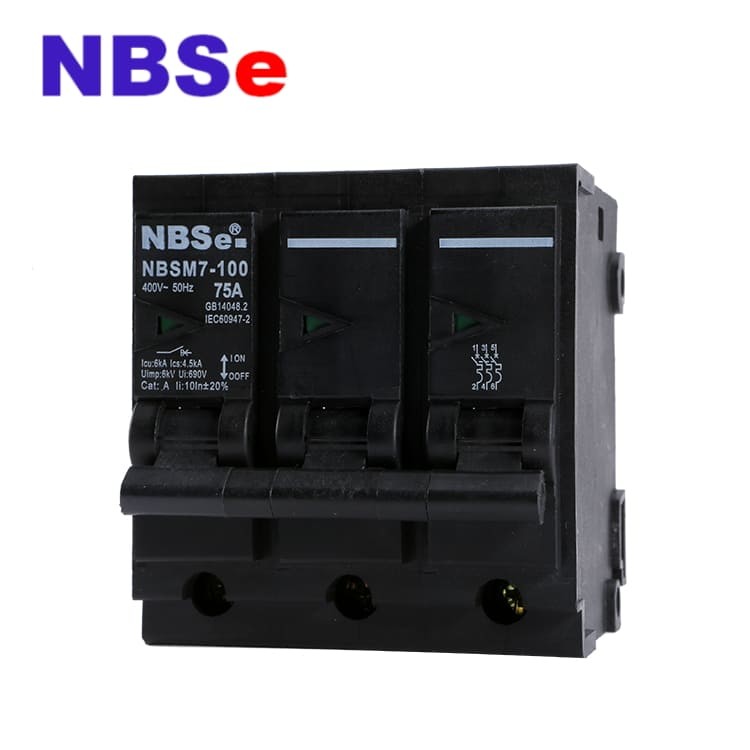

NBSM7-100 100A Three Pole Circuit Breaker 100 Amp Over Current Protection

Basic Information
Place of Origin: CHINA
Brand Name: NBSe
Certification: CCC,ISO9000
Model Number: NBSM7-100
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export Packing
Delivery Time: 10-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400,000pcs per month
Detail Information
Material: PA66 Color: Black/White
Type: Mini Rated Frequency: 50/60Hz
Rated Voltage: 110V/220V/440V Icn: 10kA
Standard: EN/IEC60947-2 Tripping Type: Thermal/magnetic Release
Protection: Overload And Short Circuit Usage: Low Voltage,Automotive,Thermal
Operating Temperature: -35℃-65℃
High Light:

plug fuse breaker

,

plug trip switch


Product Description

NBSe NBSM7-100 Series 3P 100A Plug-in type circuit breaker,100 amp circuit breaker



Description:



The NBSM7-100 Plug-in type breaker is characterized by compact design, light weight, elegant appearance, high breaking capacity, swift releasing, long service life, Different handle color for different rated current, with contactor condition indicator.





Applications:



Technical Data
♦ Standard:Confirming to EN / IEC60947-2
♦ Breaking capacity:10kA
♦ Protection:Against overload and short circuit
♦ Rated current In:15,20,30,40,50,63,80,100A
♦ Rated voltage:
◊ 1pole 230/400V AC 50/60Hz
◊ Rated insulation voltage Ui: 500V
◊ Rated impulse withstand voltage Uimp: 6000V
◊ Energy limiting class: 3
♦ Ambient temperature:-5°C to +40°C pursuant to EN / IEC60947
♦ Characteristic:
◊ Thermal operating limit: (1.13-1.45) x In
◊ Magnetic operating: B: (3-5) x In,C: (5-10) x In,D: (10-20) x In
♦ Number of poles:1P,2P,3P, 4P
♦ Type of trip:Thermal / magnetic release
♦ Type of terminal:Lug type and Pin type
♦ Terminal capacity:
◊ 16mm² flexible or 25mm² rigid up to 25A ratings
◊ 25mm² flexible or 35mm² rigid for 32A to 63A ratings
♦ Protection degree:IP20
♦ Installation:DIN rail
♦ Width:27mm per pole
