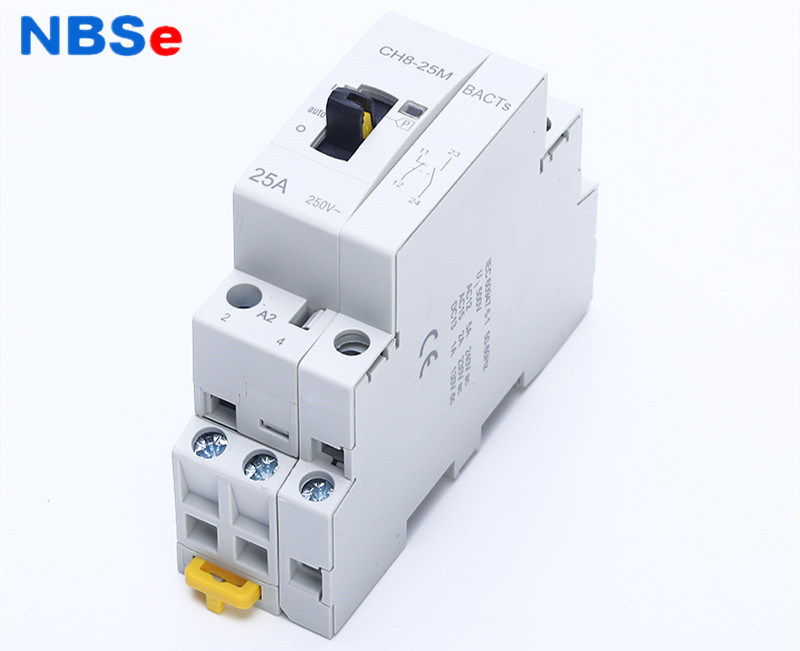

Din Rail Normally Open Electrical Magnetic Contactor With Manual Handle

Basic Information
Place of Origin: CHINA
Brand Name: NBSe
Certification: CE,ISO9000
Model Number: NCT
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export Packing
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs per month
Detail Information
Model No.: NCT8-25 Electricity Type: AC
Number Of Poles: 2P Main Circuit Rating Voltage: 24vac...110v 220v, 230vac,240vac
Main Circuit Rating Current: 25A Standard: IEC61095
Frequency: 50/60Hz Mounting: 35mm Din Rail
No. Of Auxiliary Contacts:: 2NO / 2NC / 1NC+1NO Coil Voltage: 24v-660v
Rated Voltage:: 24vac...110v 220v, 230vac,240vac Electrical Life: 1000000 Times
Material: High Standard Plastic Silver Copper
High Light:

ac magnetic contactor


magnetic overload relay

Product Description

Magnetic 2P 25A General Electric AC NCT Contactor For Home System

Product Description
  •  The product is mainly applicable to a power system of AC 50Hz (or 60Hz), rated working voltage up to 230V, and in a line of application class AC-7a with rated working voltage up to 230V and rated working current up to 20A. It is used to remotely close or/and switch off the line. The product is widely used in dwelling houses, hotels and so on.
  •  The product is in conformity with the standards: GB 17885 IEC 1095

Normal operation and mounting requirement

  •  Circumstance temperature -5°C ~ +40°C, average temperature within 24h not exceeding +35°C.
  •  Altitude above sea level less than 2000 m.
  •  Humidity not exceeding 50% at 40°C and not exceeding 90% at 25°C.
  •  Installation class II
  •  Pollution class 2.
  •  Installation method DIN Rail mounting type.
  •  Product shall be vertically mounted onto standard Din rail 35mm.

Technical Data:
Rated current(In):20,25,40,63,80,100A
Rated operational voltage(Ue):230/240VAC,400/415VAC
Number of module:1M,2M,3M
Rated frenquency:50/60Hz
Utilization category:AC1,AC3,AC7a,AC7b,AC5b
Electrical endurance:150,000cycles(AC1,AC7a,AC3,AC7b)
Mechanical endurance:1,000,000cycles
Rated insulation voltage(Ui):500VAC
Rated impulse withstand voltage(Uimp):4KV
Terminal:pillar type
Cable termination:16/25mm2
Torque of screw:1.2/2Nm
IP degree:IP20
Catalog No. CTN Size:46.5x24x17.5CM

Model Description QTY/Box QTY/CTN
NCT8-25-24/20 25A 24V 2NO 1 120
NCT8-25-48/20 25A 48V 2NO 1 120
NCT8-25-110/20 25A 110V 2NO 1 120
NCT8-25-230/20 25A 230V 2NO 1 120
NCT8-25-24/02 25A 24V 2NC 1 120
NCT8-25-48/02 25A 48V 2NC 1 120
NCT8-25-110/02 25A 110V 2NC 1 120
NCT8-25-230/02 25A 230V 2NC 1 120
NCT8-25-24/11 25A 24V 1NO+1NC 1 120
NCT8-25-48/11 25A 48V 1NO+1NC 1 120
NCT8-25-110/11 25A 110V 1NO+1NC 1 120
NCT8-25-230/11 25A 230V 1NO+1NC 1 120


Ui (V) Ui (V~) Conventional
heating current (A)
Ie (A) Controlled
power (kW)
AC-1, AC-7a AC-7b 500 230 63 63/25 13/3.8
AC-1, AC-7a AC-7b 500 230 40 40/15 8.4/2.4
AC-1, AC-7a AC-7b 500 230 32 32/12 6.5/1.9
AC-1, AC-7a AC-7b 500 230 25 25/8.5 5.4/1.9
AC-1, AC-7a AC-7b 500 230 20 20/7 4/1.2

Making and breaking capacity

Making and breaking conditions Electrification
time (s)
time (s)
cycle times
Ic/Ie Ur/Ue COSΦ
AC-1, AC-7a 1.5 1.05 0.8 0.05 10 50
AC-7b 8 1.05 0.45 0.05 10 50

Conventional operating performances

Making conditions Breaking conditions Electrification
time (s)
time (s)
Ic/Ie Ur/Ue COSΦ Ic/Ie Ur/Ue COSΦ
AC-1 1.0 1.05 0.8 1.0 1.05 0.8 0.05 10 6000
AC-7a 1.0 1.05 0.8 1.0 1.05 0.8 0.05 10 30000
AC-7b 6.0 1.0 0.45 1.0 0.17 0.45 0.05 10 30000

Product Dimension
Din Rail Normally Open Electrical Magnetic Contactor With Manual Handle 0
