| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NBSe |
| Certification: | CCC,CE |
| Model Number: | NBSK-3 |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 10-20days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 400,000pcs per month |
| Model Number: | NBSK-3 | Max.Current: | 125A |
|---|---|---|---|
| Rated Voltage: | 230V/400V | Usage Category: | AC-22A |
| Frequency: | AC 50 Hz/60Hz | Impulse Withstand Voltage: | 6kV |
| Isolating Function: | Yes | Rated Short Circuit On-off Capability: | 20Ie ON 0.1s |
| Standard: | IEC60947-3,GB14048.3 | Color: | Grey |
| Function: | ON-OFF,Switching,Isolating | Customized: | Accept Special Order |
| Gurantee Period: | 24 Months | ||
| High Light: | electrical mains isolator switch,electrical disconnect switch |
||

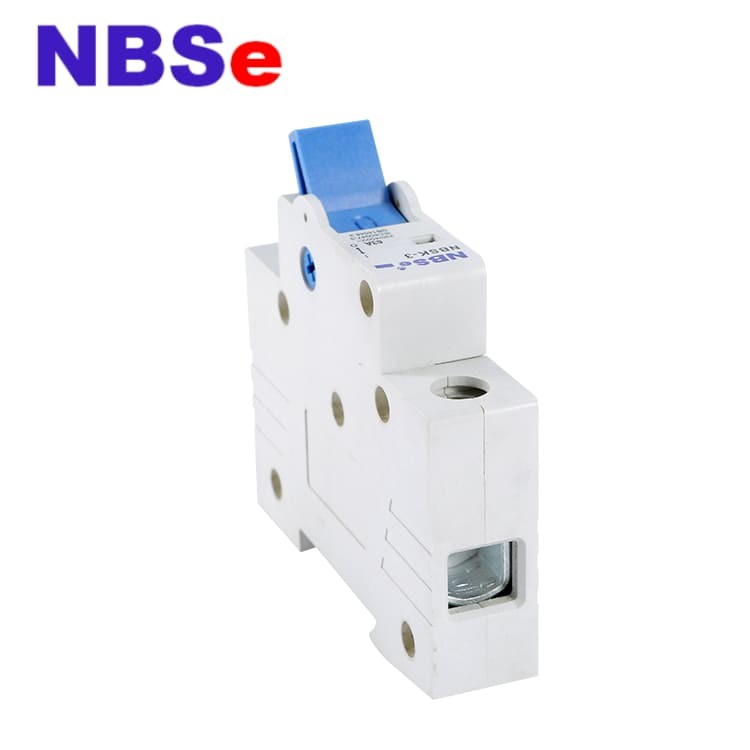

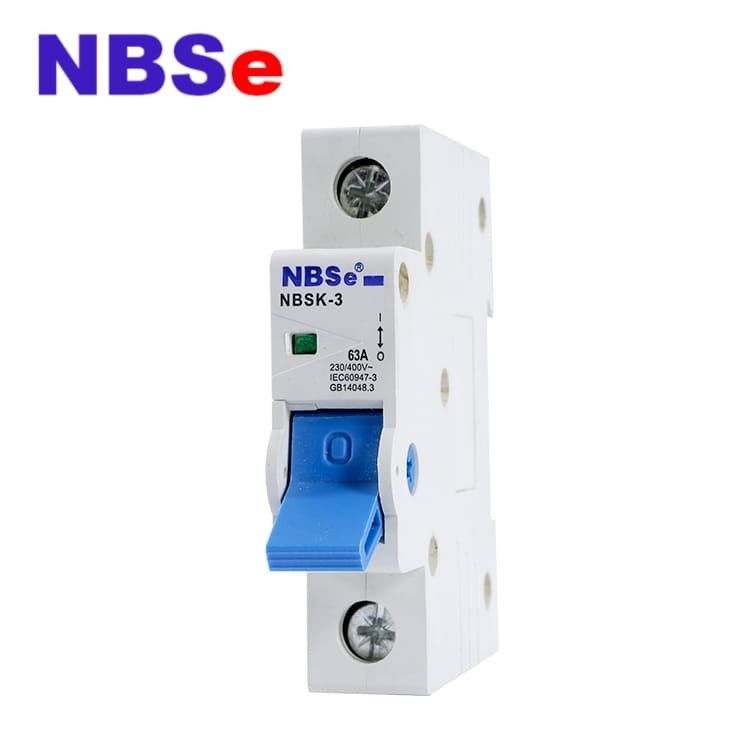

NBSe NBSK-3 1P 63A Isolation Switch,Main Switch
Description:
1. Thermosetting material shell, high stability of Mechanical property and size, Excellent corrosion resistance, and Heat resistance and arc resitance, Excellent performance
2. Double contact design, Reliable action
3. optimal design for contact system and trip mechanism
4. Spring energy storage design to
5. din rail mounting,easily be used with Modular electrical devices
Technical Parameter:
| Rated current In | 32,40,50,63,80,100,125A |
| Poles | 1P,2P,3P,4P |
| Rated voltage Ue | 240/415V |
| Insulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Rated short-time withstand current Icw | 12Ie,1s |
| Rated making and breaking capacity | 3Ie,1.05Ue,cosφ=0.65 |
| Rated short circuit making capacity | 20Ie,t=0.1s |
| Rated impulse withstand voltage(1.5/50) Uimp | 4,000V |
| Dielectric test voltage at ind.Freq. for 1min | 2.5kV |
| Utiliaztion category | AC-22A |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Handle with Red/Green mark |
| Protection degree | IP20 |
| Terminal connection type | Cable/Pin-type busbar |
| Terminal size top/bottom for cable |
50mm 18-2AWG |
| Terminal size top/bottom for busbar |
50mm 18-2AWG |
| Tightening torque | 3.5Nm 30In-lbs |
| Mounting | On DIN rail EN60715(35mm) by means of fast clip device |
| Connection | From top and bottom |
Circuit breaker always trips the circuit but when there is an open contact of the breaker, it cannot be physically seen from outside of the breaker and that is why it is considered as the “not to touch” area of the electrical circuit. Thus, the isolators are created for the safety so that, one can see the condition of the section of the circuit before touching it. The isolator is a switch which isolates the part of the circuit system when it is required. Electrical isolators are the separate part of the system that is created for the safe maintenance. Isolators are generally used at the end of the breaker to repair or to replace.
FAQ:
Q1: What's your product Range?
A.
- Shell Unti-fire. nylon pa66 or not unti-fire.
- Parts, Copper or iron
- Point Sliver point or Copper point
Q2: Are you a manufacturer?
A. Yes, we are only produce the circuit breaker over 20 years from 1999.
Q3: Do you have stock products to sell?
A. No,we work on OEM orders, The means, material, quantity,packing solution,etc will depend on your requests.obviously, your logo can be printed on the products.
Q4. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q5. how's the delivery time ?
A. usually it will take about 30 days for 30000pcs
Q6. tell me the standard of package?
A. Normally are cartons, color box or white box
Q7. what kind of material of circuit breaker?
A. we have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the electrical life. Copper and silver is better and also higer price.
Q8. We want to know month capacity.
A. 400,000pcs/month
Q9. Where is your market?
A. Our products are popular in Western Europe, Middle-East, Afirca, South Asia ,South Ameirca countries and area. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q10. what kind of certificate you have ?
A. CE, CB,CCC,ISO9000.
Q11. Do you inspect the finished products
A.Yes.Each step of products will be inpected by QC department before shipping.
Q12. How are you ship the finished products?
- By Sea
- By plane
- By counties,TNT, DHL,FEDEX,UPS.etc.
