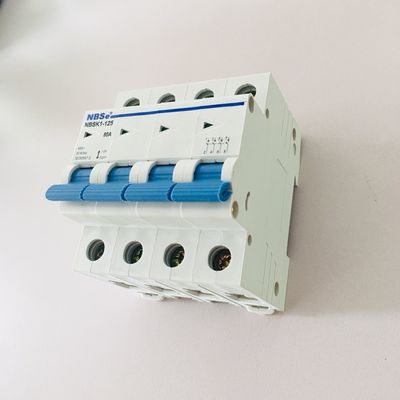

NBSK1-125 AC Disconnector Electrical Isolator Switch Circuit Breaker Type 4P 80A

Basic Information
Place of Origin: CHINA
Brand Name: NBSe
Certification: CCC,CE
Model Number: NBSK1-125
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400,000pcs per month
Detail Information
Model Number: NBSK1-125 Max.Current: 80A
Rated Voltage: 230V/400V Usage Category: AC-22A
Frequency: AC 50 Hz/60Hz Impulse Withstand Voltage: 6kV
Isolating Function: Yes Rated Short Circuit On-off Capability: 20Ie ON 0.1s
Standard: IEC60947-3,GB14048.3 Product Name: Enclosed Isolator Switch
Warranty: 2 Years Sample: Accept
High Light:

electrical mains isolator switch

,

power disconnect switch


Product Description

NBSe NBSK1-125 Circuit Breaker Type AC Disconnector Switches 4P 80A



Description:

1. Thermosetting material shell, high stability of Mechanical property and size, Excellent corrosion resistance, and Heat resistance and arc resitance, Excellent performance
2. Double contact design, Reliable action
3. optimal design for contact system and trip mechanism
4. Spring energy storage design to
5. din rail mounting,easily be used with Modular electrical devices





Technical Parameter:



Rated current In 32,40,50,63,80,100,125A
Poles 1P,2P,3P,4P
Rated voltage Ue 240/415V
Insulation voltage Ui 500V
Rated frequency 50/60Hz
Rated short-time withstand current Icw 12Ie,1s
Rated making and breaking capacity 3Ie,1.05Ue,cosφ=0.65
Rated short circuit making capacity 20Ie,t=0.1s
Rated impulse withstand voltage(1.5/50) Uimp 4,000V
Dielectric test voltage at ind.Freq. for 1min 2.5kV
Utiliaztion category AC-22A



Electrical life 4,000 Cycles
Mechanical life 10,000 Cycles
Contact position indicator Handle with Red/Green mark
Protection degree IP20



Terminal connection type Cable/Pin-type busbar
Terminal size top/bottom for cable



50mm 18-2AWG

Terminal size top/bottom for busbar



50mm 18-2AWG

Tightening torque 3.5Nm 30In-lbs
Mounting On DIN rail EN60715(35mm) by means of fast clip device
Connection From top and bottom




5. Our Services

(1) Warranty ( 24 months warranty )

1. The warranty starts from the delivery date from our factory;

2. During the warranty, any defective product will get repaired or replaced for free ;

3. It is beyond the warranty as the products breaked by the violence , the carelessness or repaired , altered without authorization.



(2) Lead Time

1. Sample orders will be delivered from our factory within 7 working days.

2. General orders will be delivered from our factory within 7-15 working days.

3. Bulk orders will be delivered from our factory within 25 working days at most



(3) Shippment

1. By EMS, DHL, FedEx, TNT, UPS or other express.

2. By our forwarding agent (by air or by sea).

3. By your own forwarding agent.

4. By domestic forwarding agents to any city in China
