| Model No.: | CJ19 | Electricity Type: | AC |
|---|---|---|---|
| Number Of Poles: | 3P | Phase: | 3 Phase |
| Main Circuit Rating Voltage: | 24V~380V | Main Circuit Rating Current: | 9~95A |
| Standard: | IEC60947-4 | Frequency: | 50/60Hz |
| Mounting: | 35mm Din Rail | No. Of Auxiliary Contacts:: | 1NC/1NO/1NO+1NC |
| Coil Voltage: | 24v-660v | Rated Voltage:: | 220V/240V/380V |
| Electrical Life: | 1000000 Times | ||
| Highlight: | magnetic contactor relay,magnetic overload relay |
||

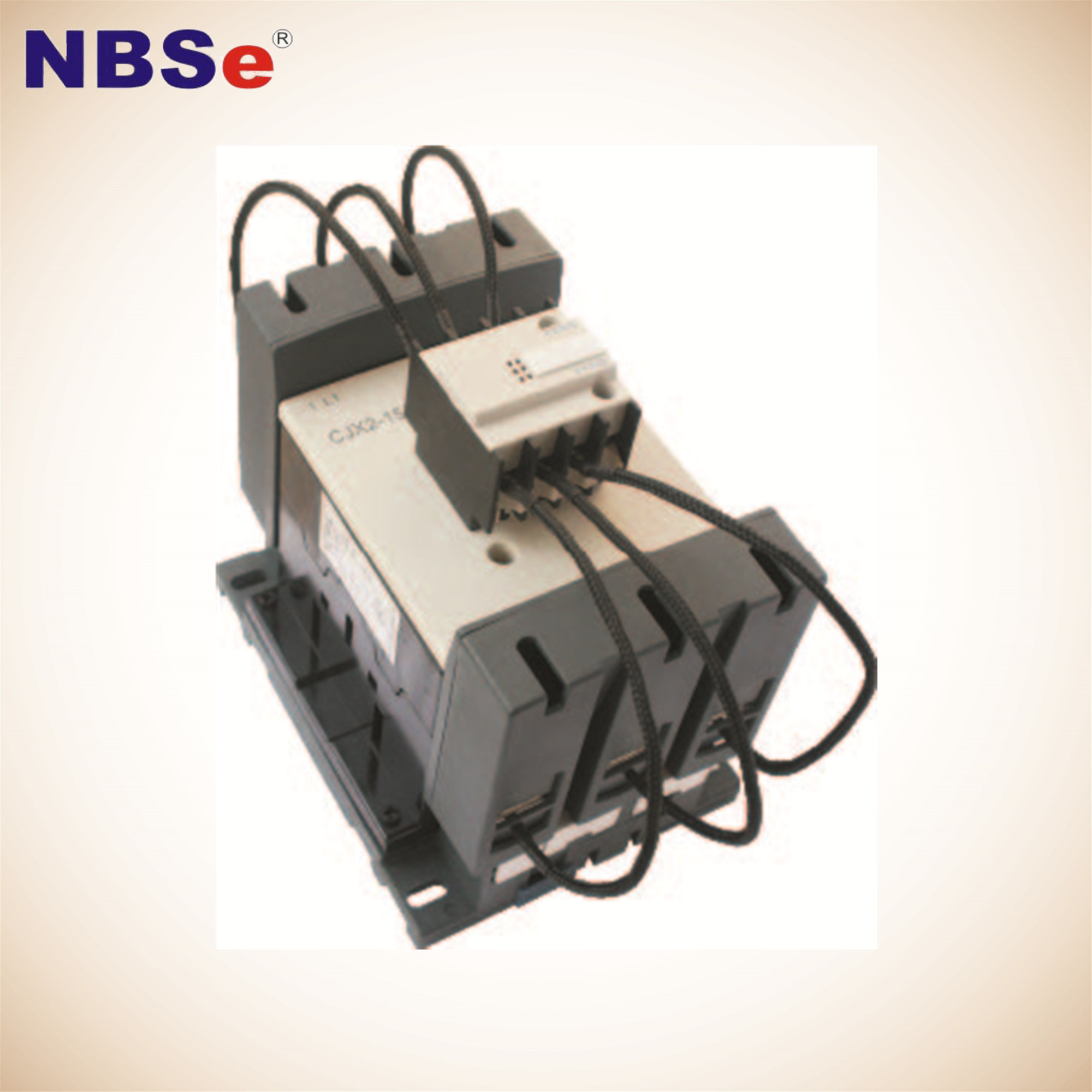

CJ19 Series changeover capacitor contactor is especially used for low voltage shunt capacitor switching. And it widely used in reactive power compensation equipment in which AC 50HZ, voltage 380V, inrush current system in the contactor can decrease shock to capacitor and lower switching overvoltagein while breaking a circuit.Moreover, It can replace transfer device which are composed of one contactor and three current limiting reactors, small, light, joins convenient and reliable, hige capacity of turning on/off.
This product conforms to GB14048.4, IEC60947-4-1 standard.
Model Explanation:
Normal Running And Installtion Conditions:
1. Ambient air temperature: -5℃+40℃. the average value should not exceed +35℃ within 24 hours
2. Elevation: at most 2000m.
3. Atmospheric conditions: When the temperature at 40℃,the relative humidity of atomsphere should be
at the most 50%.When at relatively low temperatures, it could have higher relative humidity.Monthly maximum relative humidity could be not more than 90%.Special measures should be taken due to occurrence of dews.
4. Class of pollution:Class 3
5. Installation category: Ⅲ
6. Installation conditions: Degree of inclination between fitting surface and vertical surface should not exceed II
7. Impact shock: Product should be installed and used in the place where often shakes and impacts.
Structure Featrues:
Contactor is of direct action type double breakpoint structure, contact system has two layers, there are three current-limiting contacts at the first layer, together with current-limiting resistance, when it switches on, the contact will turn on after a few seconds.
CJ19-25-43 have two auxiliary contacts, CJ19-63-95 have three auxiliary contacts.
For CJ19-25-43, Screws are available for installation, as well as the 35mm standard din rail
For CJ19-63-95, 35mm or 75mm standard din rail can be mounted are available for installation
Main Technical Parameter:
| Model | CJ19-25 | CJ19-32 | CJ19-43 | CJ19-63 | CJ19-80 | CJ19-95 | |
| Rated operational current(A) | 380V | 17 | 23 | 29 | 43 | 50 | 63 |
| Controllable capacity(kVar) | 230V | 6.5 | 8.5 | 10 | 20 | 21 | 23 |
| 400V | 12 | 16.7 | 20 | 32 | 38 | 42 | |
| Rated insulation voltage(V) | 690 | 690 | 690 | 690 | 690 | 690 | |
| Controlling inrush current capacity | 20In | 20In | 20In | 20In | 20In | 20In | |
| Electric fife (104 operations ) | 10 | 10 | 10 | 8 | 8 | 8 | |
| Operating characteristic | Absorbing (85%~110%)US;release (20%~75%)Us | ||||||
| Average power consumption (VA) 50Hz 20℃ | Pick-up | 76 | 110 | 110 | 230 | 230 | 230 |
| Holding | 9.4 | 11 | 11 | 32 | 32 | 32 | |
| Controllable capacity of auxiliary contact | AC-15 360VA:DC-13 33W | ||||||
| Unit weight (kg) | 0.44 | 0.6 | 0.63 | 1.33 | 1.5 | 1.5 | |
