| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NBSe |
| Certification: | CE,ISO9000 |
| Model Number: | CJX2 |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | Export Packing |
| Delivery Time: | 10-20days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs per month |
| Model No.: | CJX2 | Electricity Type: | AC |
|---|---|---|---|
| Number Of Poles: | 3P | Phase: | 3 Phase |
| Main Circuit Rating Voltage: | 24V~380V | Main Circuit Rating Current: | 9~125A |
| Standard: | IEC60947-4 | Frequency: | 50/60Hz |
| Mounting: | 35mm Din Rail | No. Of Auxiliary Contacts:: | 1NC/1NO/1NO+1NC |
| Coil Voltage: | 24v-660v | Rated Voltage:: | 220V/240V/380V |
| Electrical Life: | 1000000 Times | ||
| High Light: | ac magnetic contactor,magnetic overload relay |
||

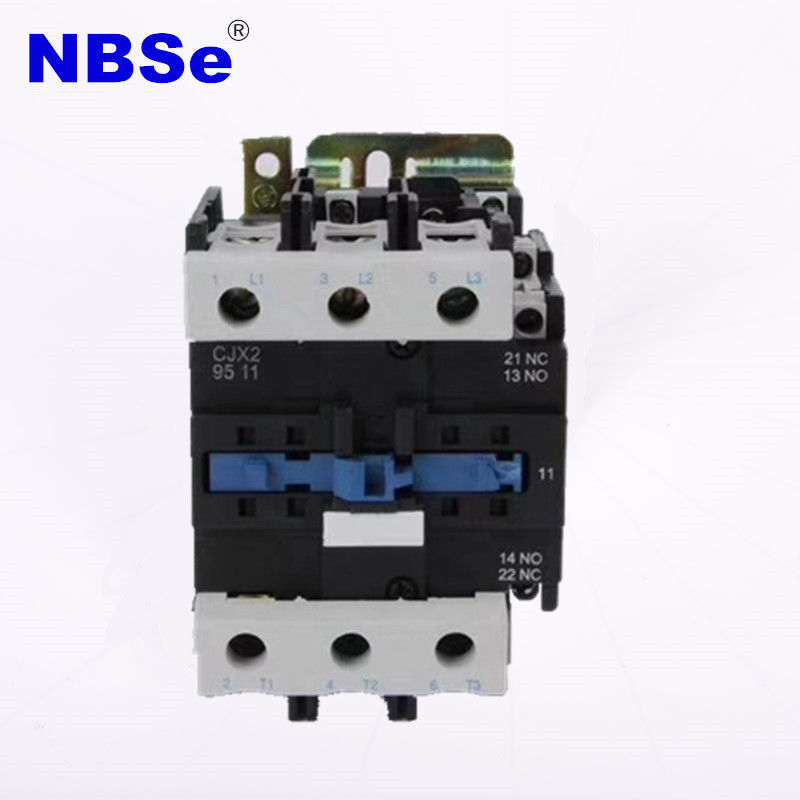

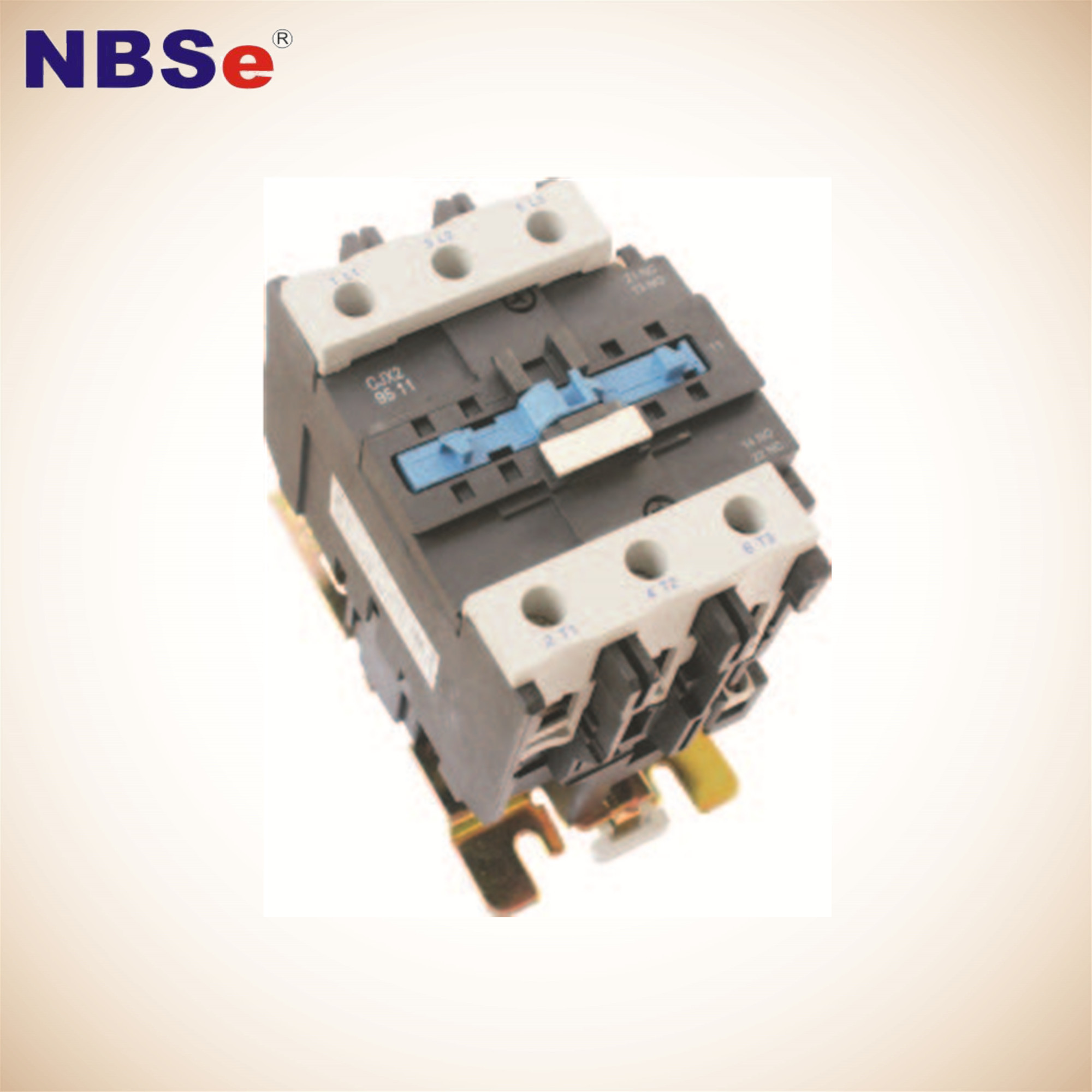

NBSe CJX2 LC1-D 20A 25A 40A 125A 660V AC NC NO Auxiliary Contactor
Structure Featrues:
Contactor is of direct action type double breakpoint structure, contact system has two layers, there are three current-limiting contacts at the first layer, together with current-limiting resistance, when it switches on, the contact will turn on after a few seconds.
CJ19-25-43 have two auxiliary contacts, CJ19-63-95 have three auxiliary contacts.
For CJ19-25-43, Screws are available for installation, as well as the 35mm standard din rail
For CJ19-63-95, 35mm or 75mm standard din rail can be mounted are available for installation
Application

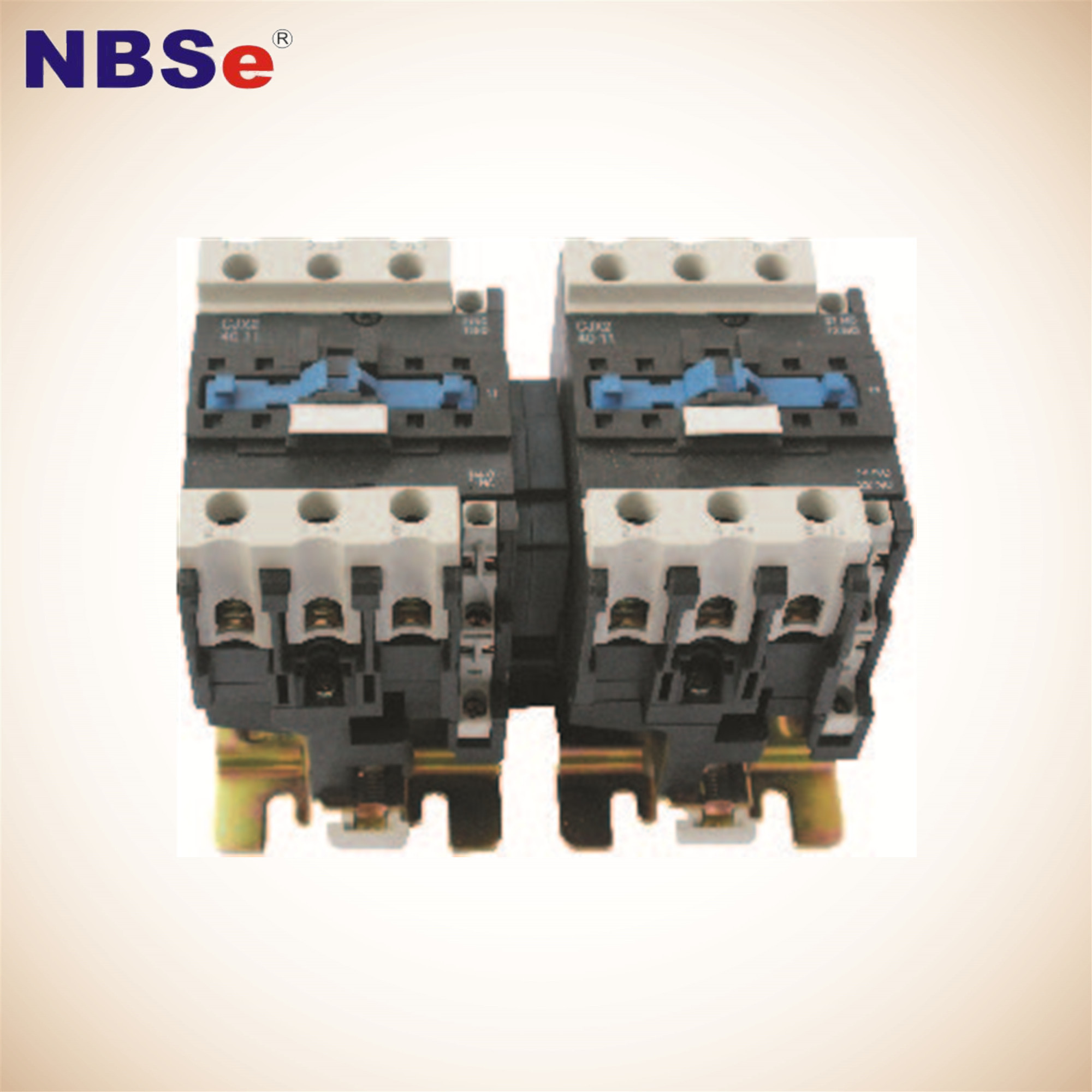

LC1 series AC contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The contactor is produced according to IEC947-2, VDE0660 & BS5452.
Specifications
| Type | CJX2-D09 | CJX2-D12 | CJX2-D18 | CJX2-D25 | CJX2-D32 | |
| Rated working current(A) |
AC3 | 9 | 12 | 18 | 25 | 32 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | |
| AC3 capacity of phase 3 squirrel-cage motor AC3(KW) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | |
| 440V | 4 | 5.5 | 9 | 11 | 15 | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| Rated heat current(A) | 20 | 20 | 32 | 40 | 50 | |
| Electrical life | AC4X104 | 20 | 20-15 | 20-7 | 15-7 | 15-7 |
| AC3X106 | 2 | 2 | 2 | 2 | 2 | |
| Mechanical | 20 | 20 | 20 | 20 | 20 | |
| number of the contact | 3P+NO | |||||
| 3P+NC |
||||||
Standard control circuit voltages
| Volts (VAC) |
24 | 42 | 48 | 110 | 220/230 | 230 | 240 | 380/400 | 400 | 415 | 440 | 500 | 660 |
| 50Hz | B5 | D5 | E5 | F5 | M5 | P5 | U5 | Q5 | V5 | N5 | R5 | S5 | Y5 |
| 60Hz | B6 | D6 | E6 | F6 | M6 | - | U6 | Q6 | - | - | R6 | - | - |
| 50/60Hz | B7 | D7 | E7 | F7 | M6 | P7 | U7 | Q7 | V7 | N7 | R7 | - | - |
