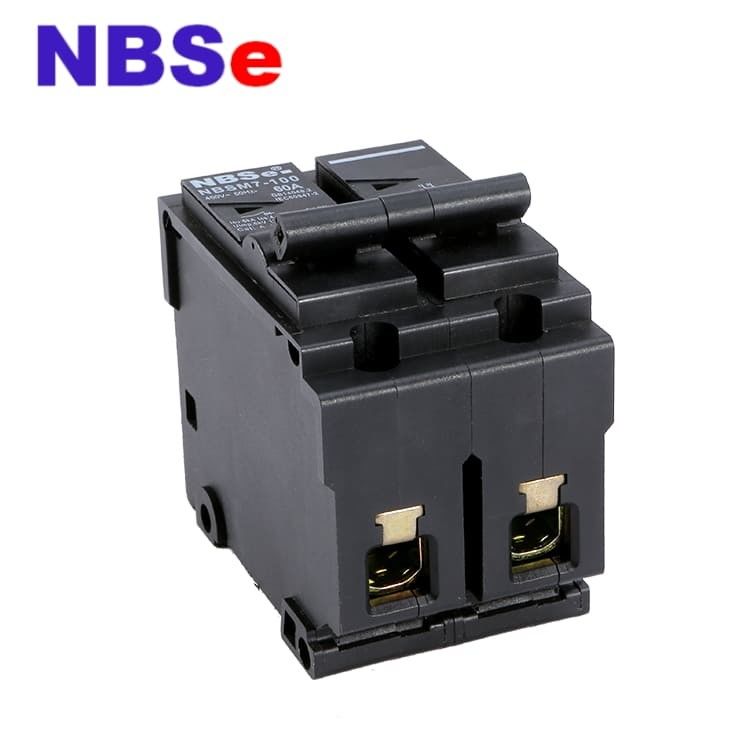

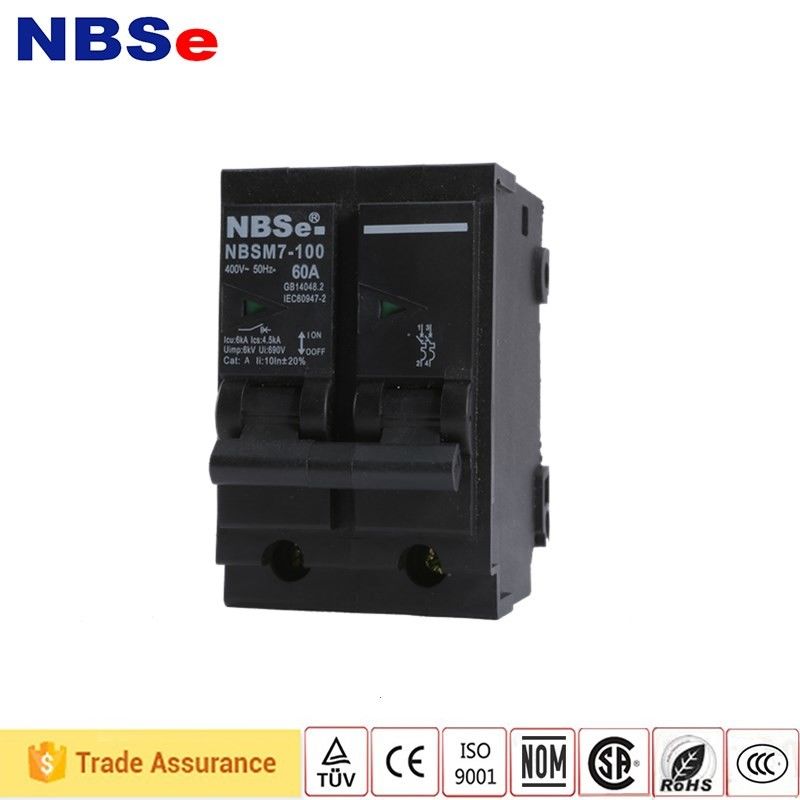

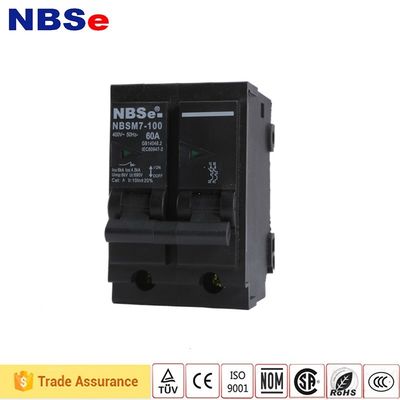

IEC60947-2 High Breaking Double Pole MCB Miniature Circuit Breaker

Basic Information
Place of Origin: CHINA
Brand Name: NBSe
Certification: CE,CB,CCC
Model Number: NBSM7-100
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400,000pcs per month
Detail Information
Rated Current: 16A-125A Pole: 1P, 2P, 3P
Voltage: 120/240V Short Circuit Capacity: 10kA
Characteristic Curve: Mcb B C D Type Product Name: Main Switch Double Pole
Cable Connection: Plug-in Type Service: OEM,ODM
Standard: EN/IEC60947-2 Certificate: CE CB Approved
High Light:

high breaking miniature circuit breaker

,

IEC60947-2 miniature circuit breaker

,

high breaking mini mcb switch


Product Description

Main Switch Double Pole,Main Switch Price From Manufacturer,NBSM7-100 With CE,CB Certificate



Description:



NBSM7-100 high breaking miniature circuit breaker has the features of structure advanced, performance reliable, breaking capacity high, appearance elegant and its shell and parts are made of material with impact resistance, strong flame-retardant feature.

It is suitable to power system of 50or 60 frequency ,Ue 400V and below, Ui 100A and below.

It is mainly applied at office building, residence, for lighting , power distribution and overload and short circuit protection of equipment. Normally, it also can be used as the not frequent transfer of power system. It conforms to the standards IEC60898 and GB10963.1.

Products features:

1· Breaking capacity highly, all rated current can be up to above 10KA.

2· Double connection function, connect busbar and lead conveniently.

3· With stored energ machine, contact close fast, avoid the disadvantage of manpower operated,Hence improve the using-life of products.

4· with protection terminal, more safety.

5· Many kinds of accessories can be choosed, in modularize and flexibility combine that make the customer install conveniently.

6· The cover and function parts both are made of inflaming retarding,bear high temperature and bear impact plastic.

Product Detail

Standard   IEC/EN 60898-1

Electrical

features

Rated current in A 63 80 100
Poles   1P 2P 3P 4P
Rated voltage Ue V 230/400
Insulation coltage Ui V 500
Rated frequency Hz 50/60Hz
Rated breaking capacity A 10000
Rated impulse withstand voltage (1.2/50)Uipm V 6000
Dielectric test voltage at and ind.Freq.for 1min KV 2
Pollution degree   2
Themo-magnetic release characteristic   B C D

Mechanical

features

Electrical life   8000
Machanical life   20000
Contact position indicator   Yes
Protection degree   IP 20
Reference temperature of setting of thermal element °C 30
Ambient temperature(with daily average≤35°C) °C -5~+40
Storage temperature °C -25...+70
Installation Terminal connection type
Terminal size top/bottom for cable

mm²

AWG

25

18-3

Terminal size top/bottom for busbar mm²

AWG

25

18-3

Tightening torque

N*m

In-lbs.

3.0

22

Mounting

OnDIN rail FN 60715(35mm)

by means of fast clip device

Connection   From top and bottom
