Din Rail 125A Industrial Type Circuit Breaker

Basic Information
Place of Origin: CHINA
Brand Name: NBSe
Certification: CE,CB,CCC
Model Number: NBSM30-125
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400,000pcs per month
Detail Information
Type: Industrial Pole: 1P,2P,3P
Color: Gray Rated Frequency: 50/60Hz
Rated Voltage: 230/400V Breaking Capacity: 6kA
Protection Degree: IP20 Installation: Din Rail
Standard: EN/IEC60947-2 Type Of Trip: Thermal/magnetic Release
Protection: Overload And Short Circuit Breaking Capacity: 6KA/10KA
High Light:

Din Rail thermal magnetic circuit breaker

,

125A electric motor circuit breaker


Product Description

NBSM30-125 Series Industrial Breaker,6A-125A

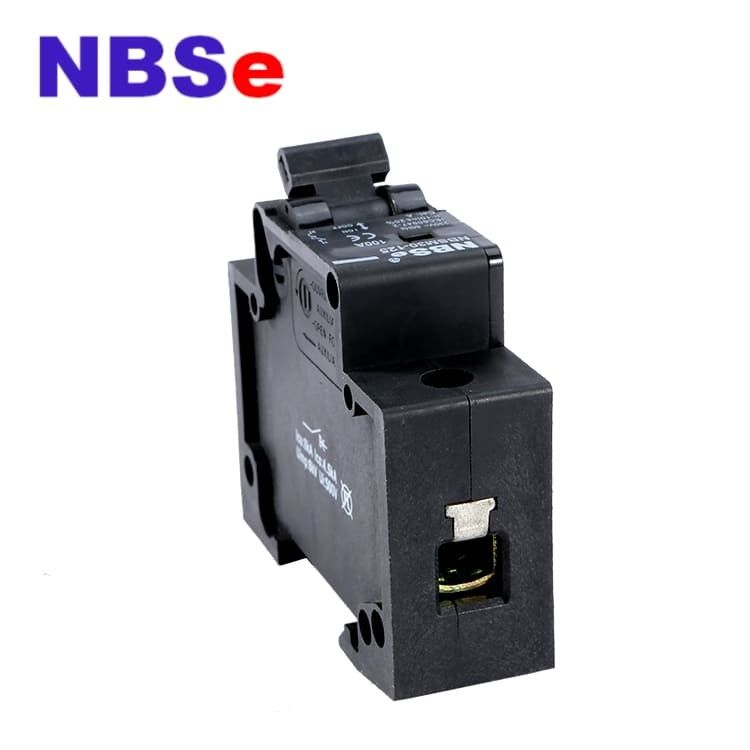

Din Rail 125A Industrial Type Circuit Breaker 0

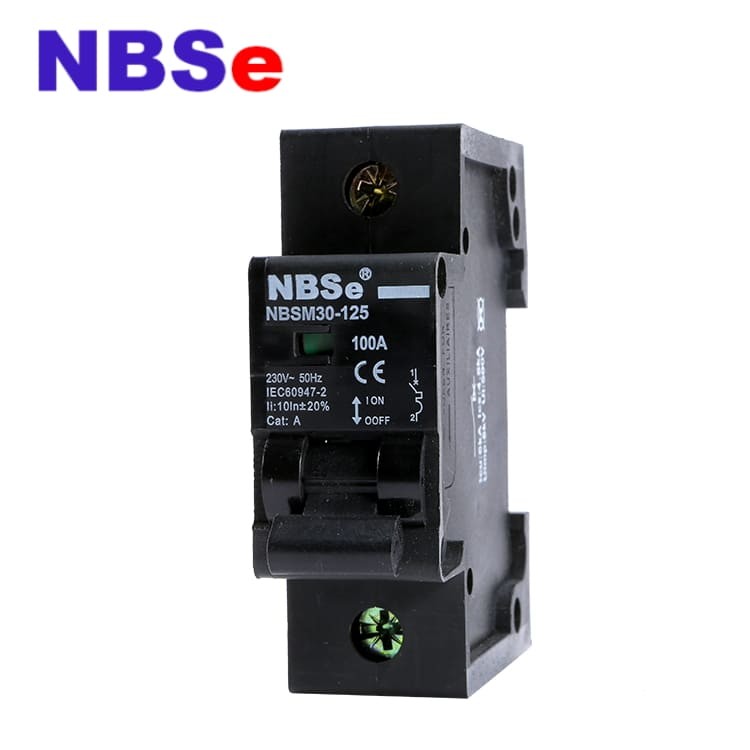

NBSM30-125 Series MCB AC 2P 100A 230/400V Industrial Circuit Breaker, industrial breaker

Description:

The NBSM1-125 Industrial breaker is our new design with patent, characterized by compact design, light weight, elegant appearance, high breaking capacity, swift releasing, long service life, Different handle color for different rated current, with contactor condition indicator.


Technical Parameter

Product ModelNBSM30-125
StandardsGB/T 14048.2 Low-voltage switchgear and controlgear - Part 2 Circuit-breakers IEC 60947-2 Low-voltage switchgear and controlgear - Part 2 Circuit-breakers
Rated voltage UeAC230/240V(1P,1P+N) AC400/415V(2P,3P,3P+N,4P)
Rated Insulation voltage Ui1000V
Rated Impulse Withstand Voltage Uimp6kA
Rated Current In32A,40A,50A,63A,80A,100A,125A
Ultimate breaking capacity Icu15kA (In≤100A);10kA (In=125A)
Service breaking capacity Ics10kA (In≤100A);7.5kA (In=125A)
Reference temperature30ºC
Curve codeIn≤100AIn=125A
C: 8(1±20%)In / D: 12(1±20%)InC: 8(1±20%)In
Utilization CategpryA
Poles description1P/1P+N/2P/3P/3P+N/4P
Mechanical durability (Cycles)20000
Electrical durability (Cycles)10000 (In≤63) ,6000(In>63)
