|Type:||Low-voltage Miniature||Rated Frequency:||50/60Hz|
|Standard:||EN/IEC60947-2||Tripping Type:||Thermal-magnetic Circuit Breakers|
|Protection:||Overload And Short Circuit||Application:||Automotive/electrical,Household Appliances,Low Voltage|
plug fuse breaker,
plug trip switch

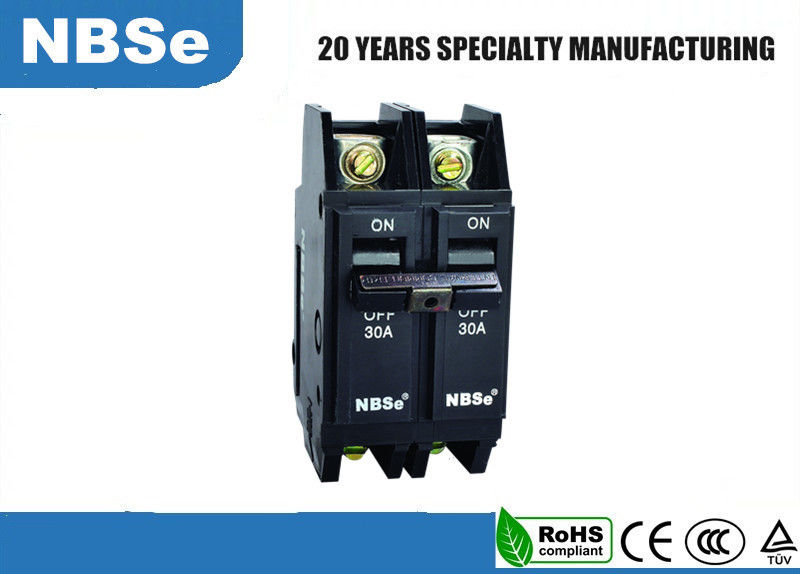

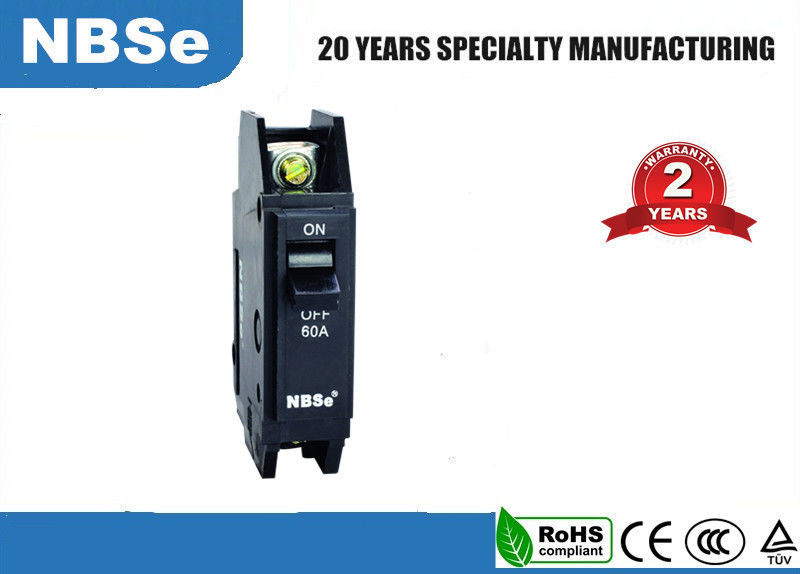

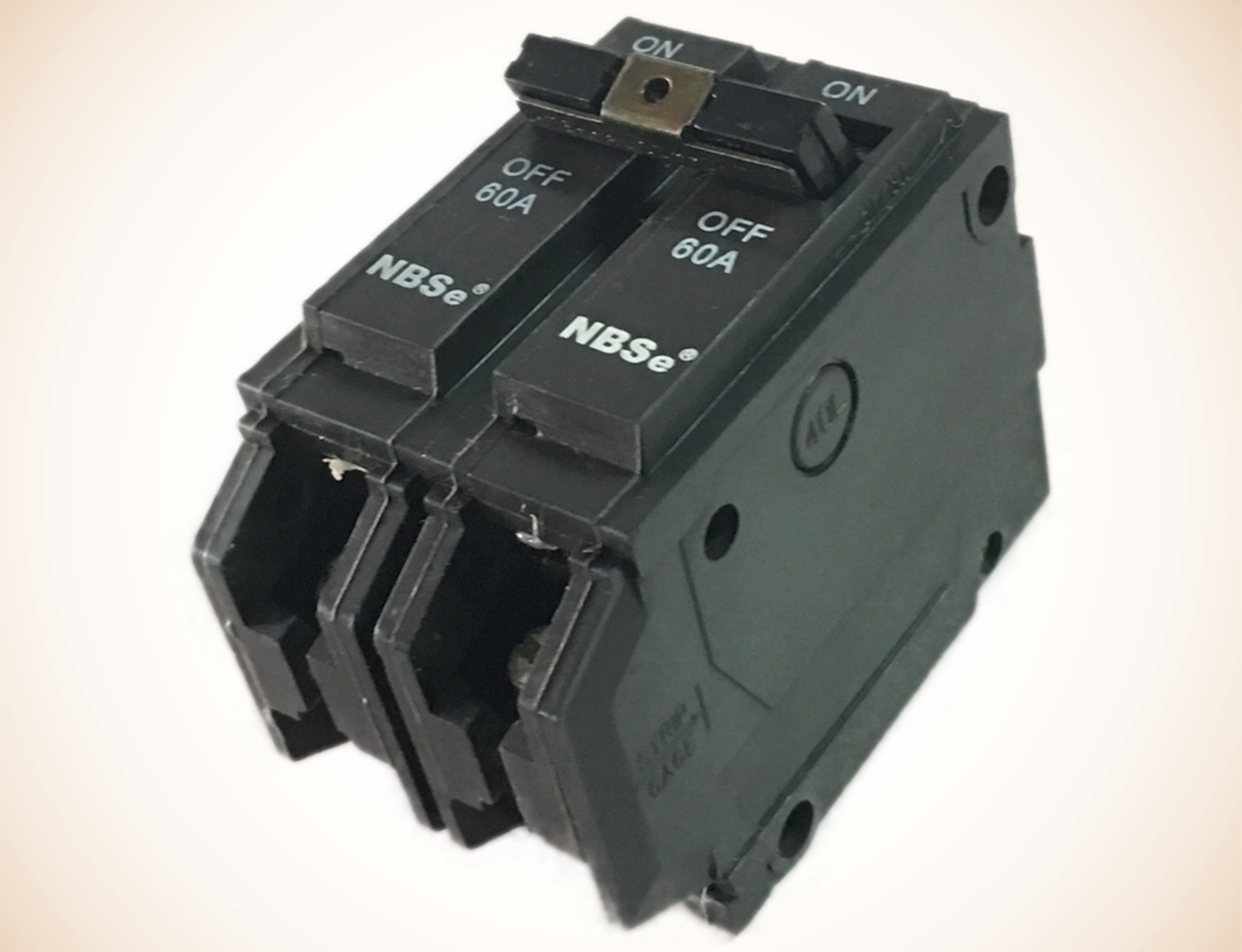

NBSe TQL 2P 60A 10KA Plug Fuse Circuit Breaker, square d miniature circuit breakers
The TQL Plug-in type breaker is characterized by compact design, light weight, elegant appearance, high breaking capacity, swift releasing, long service life, Different handle color for different rated current, with contactor condition indicator.
The product shall be operated under the following environmental conditions:
● Does not contain corrosive gases and vapors in concentrations destroying metals and insulation;
● Not rich conductive dust and vapors;
● Lack of direct exposure to ultraviolet radiation;
● Should not be signifinant shock or vibration.
Transport ans storage are only permitted in the original packing.
The ambient storage temperature:-45...+60° C and humidity not above80% (at 25° C without condensation).
|♦ Standard:Confirming to EN / IEC60947-2|
|♦ Breaking capacity:10kA|
|♦ Protection:Against overload and short circuit|
|♦ Rated current In:15,20,30,40,50,63,80,100A|
|♦ Rated voltage:|
|◊ 1pole 230/400V AC 50/60Hz|
|◊ Rated insulation voltage Ui: 500V|
|◊ Rated impulse withstand voltage Uimp: 6000V|
|◊ Energy limiting class: 3|
|♦ Ambient temperature:-5°C to +40°C pursuant to EN / IEC60947|
|◊ Thermal operating limit: (1.13-1.45) x In|
|◊ Magnetic operating: B: (3-5) x In,C: (5-10) x In,D: (10-20) x In|
|♦ Number of poles:1P,2P,3P, 4P|
|♦ Type of trip:Thermal / magnetic release|
|♦ Type of terminal:Lug type and Pin type|
|♦ Terminal capacity:|
|◊ 16mm² flexible or 25mm² rigid up to 25A ratings|
|◊ 25mm² flexible or 35mm² rigid for 32A to 63A ratings|
|♦ Protection degree:IP20|
|♦ Installation:DIN rail|
|♦ Width:27mm per pole|
