Insert Mounting PA66 GE Ul489 Miniature Circuit Breakers

Basic Information
Place of Origin: CHINA
Brand Name: NBSe
Certification: CCC,ISO9000
Model Number: TQL
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export Packing
Delivery Time: 10-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400,000pcs per month
Detail Information
Material: PA66 Color: Black/White
Type: Mini,Ul489 Miniature Circuit Breakers Rated Voltage: 110V/220V/440V
Rated Frequency: 50/60Hz Tripping Type: Thermal/magnetic Release
Icn: 10kA Mounting: Plug-in, Insert Mounting
Operating Temperature: -35℃-65℃ Usage: Low Voltage,Automotive,Thermal
High Light:

PA66 ul489 miniature circuit breakers

,

insert mounting ul 489 breaker

,

PA66 GE Miniature Circuit Breakers


Product Description

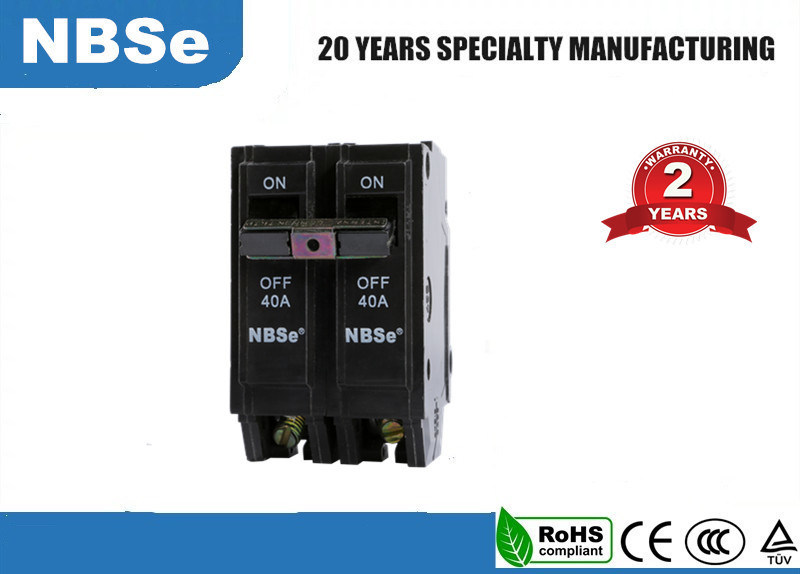

Insert Mounting  PA66 GE Ul489 Miniature Circuit Breakers 0

NBSe TQL Series Ge Miniature Circuit Breakers, Ul489 Miniature Circuit Breakers



Description:



This TQC circuit breaker safely cuts off power immediately if the circuit becomes overloaded (too many electrical appliances being used), or short circuited (a faulty appliance). Plug in circuit breakers are more reliable and have a faster response time then standard rewireable fuses. Once installed, they do not require any tools to be reset, simply switch back on once the fault has been fixed.



Features:



One-piece moulded case construction.

Hardened cradle for positive action under fault conditions.

Heavy duty line terminal and spring clip for quick loadcentre installation and cool coperation.

Silver tungsten alloy contacts.

Magnetic assembly for reliable short circuit protection.

Large gas port for venting short circuit gases safely into loadcentre gutter.

Calibrated one-piece bimetal for reliable thermal trip function.



Applications:



Technical Data
♦ Standard:Confirming to EN / IEC60947-2
♦ Breaking capacity:10kA
♦ Protection:Against overload and short circuit
♦ Rated current In:15,20,30,40,50,63,80,100A
♦ Rated voltage:
◊ 1pole 230/400V AC 50/60Hz
◊ Rated insulation voltage Ui: 500V
◊ Rated impulse withstand voltage Uimp: 6000V
◊ Energy limiting class: 3
♦ Ambient temperature:-5°C to +40°C pursuant to EN / IEC60947
♦ Characteristic:
◊ Thermal operating limit: (1.13-1.45) x In
◊ Magnetic operating: B: (3-5) x In,C: (5-10) x In,D: (10-20) x In
♦ Number of poles:1P,2P,3P, 4P
♦ Type of trip:Thermal / magnetic release
♦ Type of terminal:Lug type and Pin type
♦ Terminal capacity:
◊ 16mm² flexible or 25mm² rigid up to 25A ratings
◊ 25mm² flexible or 35mm² rigid for 32A to 63A ratings
♦ Protection degree:IP20
♦ Installation:DIN rail
♦ Width:27mm per pole



NBSe TQL Series Ge Miniature Circuit Breakers, Ul489 Miniature Circuit Breakers



What is the difference between Plug-in and Fixed Circuit Breaker ?

The plug-in version makes it possible to:

  • Extract and/or rapidly replace the circuit breaker without having to touch the connections on the base
  • Allow for the addition of future circuits by installing bases that will be equipped with a circuit breaker at a later date
  • Isolate the power circuits when the device is mounted on or through a panel. It acts as a barrier for the connections of the plug-in base. Insulation is made complete by the mandatory short terminal shields on the device.The degrees of protection are: circuit breaker plugged in = IP4
    circuit breaker removed = IP2
    circuit breaker removed,base equipped with shutters = IP4.
