NBSM30-125 Series MCB Miniature Circuit Breaker , MCB Switch For AC 1P 100A

China NBSM30-125 Series MCB Miniature Circuit Breaker ,  MCB Switch For AC 1P 100A supplier
NBSM30-125 Series MCB Miniature Circuit Breaker ,  MCB Switch For AC 1P 100A supplier NBSM30-125 Series MCB Miniature Circuit Breaker ,  MCB Switch For AC 1P 100A supplier

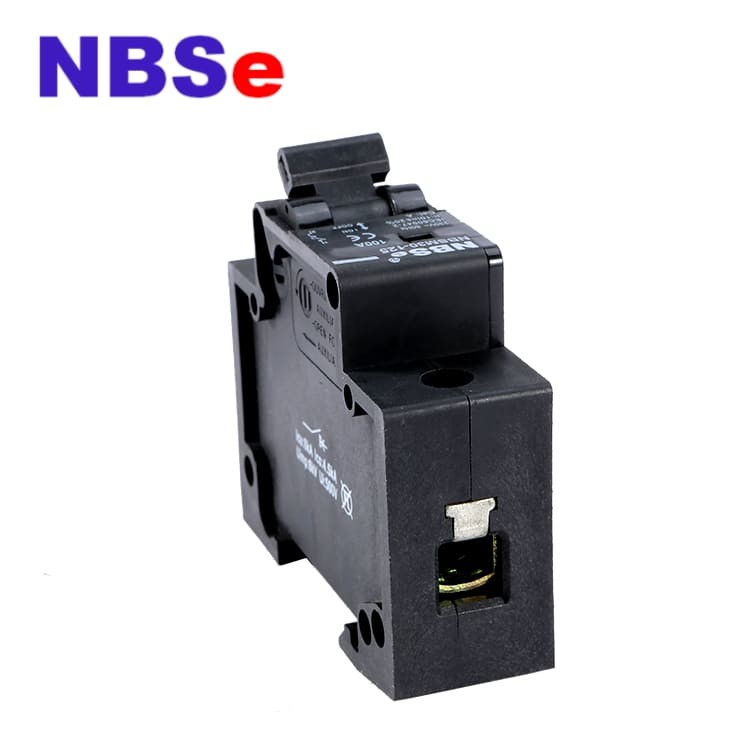

Large Image :  NBSM30-125 Series MCB Miniature Circuit Breaker , MCB Switch For AC 1P 100A

Product Details:

Place of Origin: CHINA
Brand Name: NBSe
Certification: CE,CB,CCC
Model Number: NBSM30-125

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400,000pcs per month
Contact Now
Detailed Product Description
Type: Industrial Pole: 3P
Color: Gray Rated Frequency: 50/60Hz
Rated Voltage: 230/400V Breaking Capacity: 6kA
Protection Degree: IP20 Installation: Din Rail
Standard: EN/IEC60947-2 Type Of Trip: Thermal/magnetic Release
Protection: Overload And Short Circuit

NBSM30-125 Series MCB AC 2P 100A 230/400V Industrial Circuit Breaker, industrial breaker



Description:



The NBSM1-125 Industrial breaker is our new design with patent, characterized by compact design, light weight, elegant appearance, high breaking capacity, swift releasing, long service life, Different handle color for different rated current, with contactor condition indicator.





Applications:


1. Building: Hotels, hospitals, offices and retalis
2. Data center and Networks
3. Industry: Mining and minerals, automotive, food and beverage and chemical industry
4. Energy and infrastructures: Airports, oil and gas, water, electrical energy and marine





Technical Data
♦ Standard:Confirming to EN / IEC60947-2
♦ Breaking capacity:6kA
♦ Protection:Against overload and short circuit
♦ Rated current In:16,25,32,40,50,63,80,100,125A
♦ Rated voltage:
◊ 1pole 230/400V AC 50/60Hz
◊ Rated insulation voltage Ui: 500V
◊ Rated impulse withstand voltage Uimp: 6000V
◊ Energy limiting class: 3
♦ Ambient temperature:-5°C to +40°C pursuant to EN / IEC60947-2
♦ Characteristic:
◊ Thermal operating limit: (1.13-1.45) x In
◊ Magnetic operating: D: (10-20) x In
♦ Number of poles:1P,1P+N,2P,3P,3P+N and 4P
♦ Type of trip:Thermal / magnetic release
♦ Type of terminal:Lug type and Pin type
♦ Terminal capacity:
◊ 16mm² flexible or 25mm² rigid up to 25A ratings
◊ 25mm² flexible or 35mm² rigid for 32A to 80A ratings
◊ 35mm² flexible or 45mm² rigid for 100A to 125A ratings
♦ Protection degree:IP20
♦ Installation:DIN rail
♦ Width:27mm per pole



Type C trip curve: 5 to10 In C-curve devices are suitable for applications where medium levels of inrush current are expected. Applications include small transformers, lighting, pilot devices, control circuits and coils. C-curve devices provide a medium magnetic trip point.

Type D trip curve: 10 to 20 In D-curve devices are suitable for applications where high levels of inrush current are expected. The high magnetic trip point prevents nuisance tripping in high inductive applications such as motors, transformers and power supplies.
