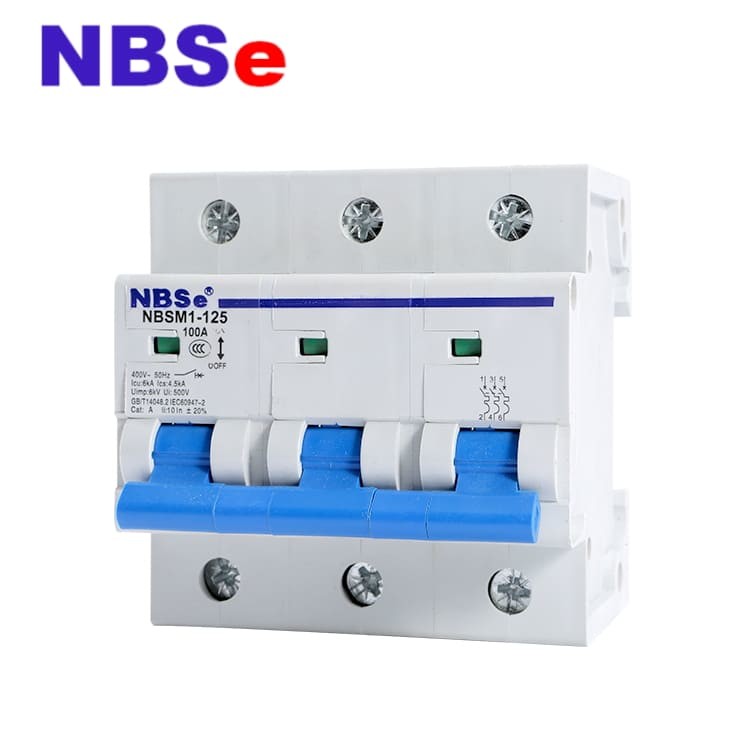

3P Industrial Type Circuit Breaker Type D Mcb NBSM30-125 Series Din Rail Installation

China 3P Industrial Type Circuit Breaker Type D Mcb NBSM30-125 Series Din Rail Installation supplier
3P Industrial Type Circuit Breaker Type D Mcb NBSM30-125 Series Din Rail Installation supplier 3P Industrial Type Circuit Breaker Type D Mcb NBSM30-125 Series Din Rail Installation supplier

Large Image :  3P Industrial Type Circuit Breaker Type D Mcb NBSM30-125 Series Din Rail Installation

Product Details:

Place of Origin: CHINA
Brand Name: NBSe
Certification: CE,CB,CCC
Model Number: NBSM30-125

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400,000pcs per month
Contact Now
Detailed Product Description
Type: Industrial Pole: 3P
Color: Gray Rated Frequency: 50/60Hz
Rated Voltage: 230/400V Breaking Capacity: 6kA
Protection Degree: IP20 Installation: Din Rail
Standard: EN/IEC60947-2 Type Of Trip: Thermal/magnetic Release
Protection: Overload And Short Circuit

NBSM30-125 Series MCB AC 3P 100A 230/400V Industrial Circuit Breaker, type d mcb



Description:



The NBSM1-125 Industrial breaker is our new design with patent, characterized by compact design, light weight, elegant appearance, high breaking capacity, swift releasing, long service life, Different handle color for different rated current, with contactor condition indicator.





The circuit breaker can protect people against indirect contact with dangerous electric current and prevent fire disaster caused by insulation fault and single-phase ground fault.It can be used to distribute electric power and protect power equipment against overload and short circuit.The circuit breaker can change the circuit and start motor infrequently.



The rated residual operating current and the maximum off-time can be adjusted on-site according to actual situation,the circuit breaker can be customized alarm function and no tripping





Applications:



Technical Data
♦ Standard:Confirming to EN / IEC60947-2
♦ Breaking capacity:6kA
♦ Protection:Against overload and short circuit
♦ Rated current In:16,25,32,40,50,63,80,100,125A
♦ Rated voltage:
◊ 1pole 230/400V AC 50/60Hz
◊ Rated insulation voltage Ui: 500V
◊ Rated impulse withstand voltage Uimp: 6000V
◊ Energy limiting class: 3
♦ Ambient temperature:-5°C to +40°C pursuant to EN / IEC60947-2
♦ Characteristic:
◊ Thermal operating limit: (1.13-1.45) x In
◊ Magnetic operating: D: (10-20) x In
♦ Number of poles:1P,1P+N,2P,3P,3P+N and 4P
♦ Type of trip:Thermal / magnetic release
♦ Type of terminal:Lug type and Pin type
♦ Terminal capacity:
◊ 16mm² flexible or 25mm² rigid up to 25A ratings
◊ 25mm² flexible or 35mm² rigid for 32A to 80A ratings
◊ 35mm² flexible or 45mm² rigid for 100A to 125A ratings
♦ Protection degree:IP20
♦ Installation:DIN rail
♦ Width:18mm per pole
