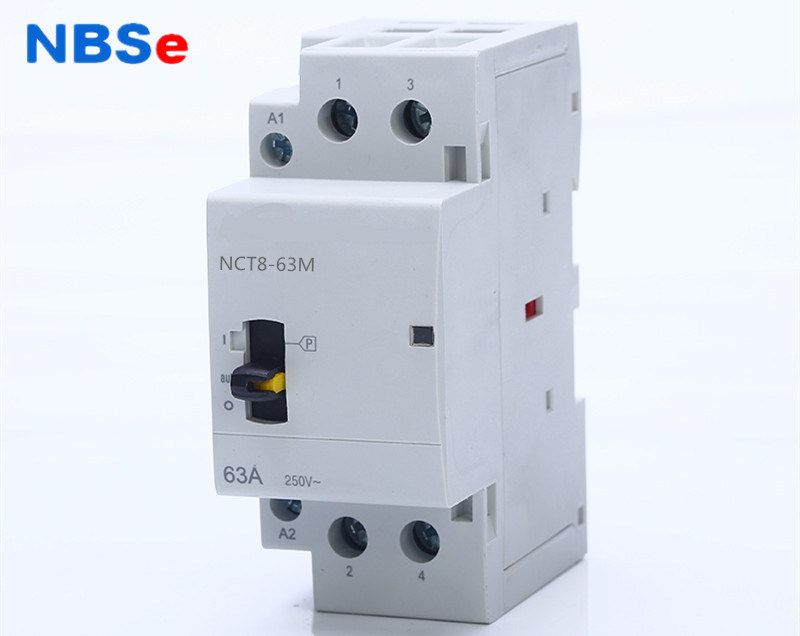

NCT Modular AC Electric Motor Starter 500V Use Safety IP20 For Home System

Basic Information
Place of Origin: CHINA
Brand Name: NBSe
Certification: CE,ISO9000
Model Number: NCT
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export Packing
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs per month
Detail Information
Model No.: NCT8-63M Electricity Type: AC
Number Of Poles: 2P Phase: Single Phase
Main Circuit Rating Voltage: 24vac...110v 220v, 230vac,240vac Main Circuit Rating Current: 63A
Standard: IEC60947-4 Frequency: 50/60Hz
Mounting: 35mm Din Rail No. Of Auxiliary Contacts:: 2NO / 2NC / 1NC+1NO
Coil Voltage: 24v-660v Rated Voltage:: 24vac...110v 220v, 230vac,240vac
Material: High Standard Plastic Silver Copper
High Light:

ac magnetic contactor

,

magnetic overload relay


Product Description

Magnetic 2P 63A 36v 220v General Electric AC NCT Contactor For Home System

Product Description

NCT series Modular AC contactor Can be used to remote control applications in the altermative networks:Lighting, heating, ventilation, roller blinds, sanitary hot water,Mechanical ventilation system, Load-shedding of non-priority circuits,etc.

AC contactor belongs to modular controlling electrical equipment, which has novelty structure, compact size, it is DIN-RAIL type, size of modular, modeling artistic. use of safety, direct acting inversion. And it can install in the distribution boards along with breakers.



Technical Data:

Rated current(In):20,25,40,63,80,100A

Rated operational voltage(Ue):230/240VAC,400/415VAC

Number of module:1M,2M,3M

Rated frenquency:50/60Hz

Utilization category:AC1,AC3,AC7a,AC7b,AC5b

Electrical endurance:150,000cycles(AC1,AC7a,AC3,AC7b)

Mechanical endurance:1,000,000cycles

Rated insulation voltage(Ui):500VAC

Rated impulse withstand voltage(Uimp):4KV

Terminal:pillar type

Cable termination:16/25mm2

Torque of screw:1.2/2Nm

IP degree:IP20

Standard:IEC/EN61095,IEC/EN60947-1



Catalog No. CTN Size:46.5x24x17.5CM

Model Description QTY/Box QTY/CTN
NCT8-63M-24/20 63A 24V 2NO 1 60
NCT8-63M-48/20 63A 48V 2NO 1 60
NCT8-63M-110/20 63A 110V 2NO 1 60
NCT8-63M-230/20 63A 230V 2NO 1 60
NCT8-63M-24/02 63A 24V 2NC 1 60
NCT8-63M-48/02 63A 48V 2NC 1 60
NCT8-63M-110/02 63A 110V 2NC 1 60
NCT8-63M-230/02 63A 230V 2NC 1 60
NCT8-63M-24/11 63A 24V 1NO+1NC 1 60
NCT8-63M-48/11 63A 48V 1NO+1NC 1 60
NCT8-63M-110/11 63A 110V 1NO+1NC 1 60
NCT8-63M-230/11 63A 230V 1NO+1NC 1 60
