| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NBSe |
| Certification: | CE,ISO9000 |
| Model Number: | NCT |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | Export Packing |
| Delivery Time: | 10-20days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100,000pcs per month |

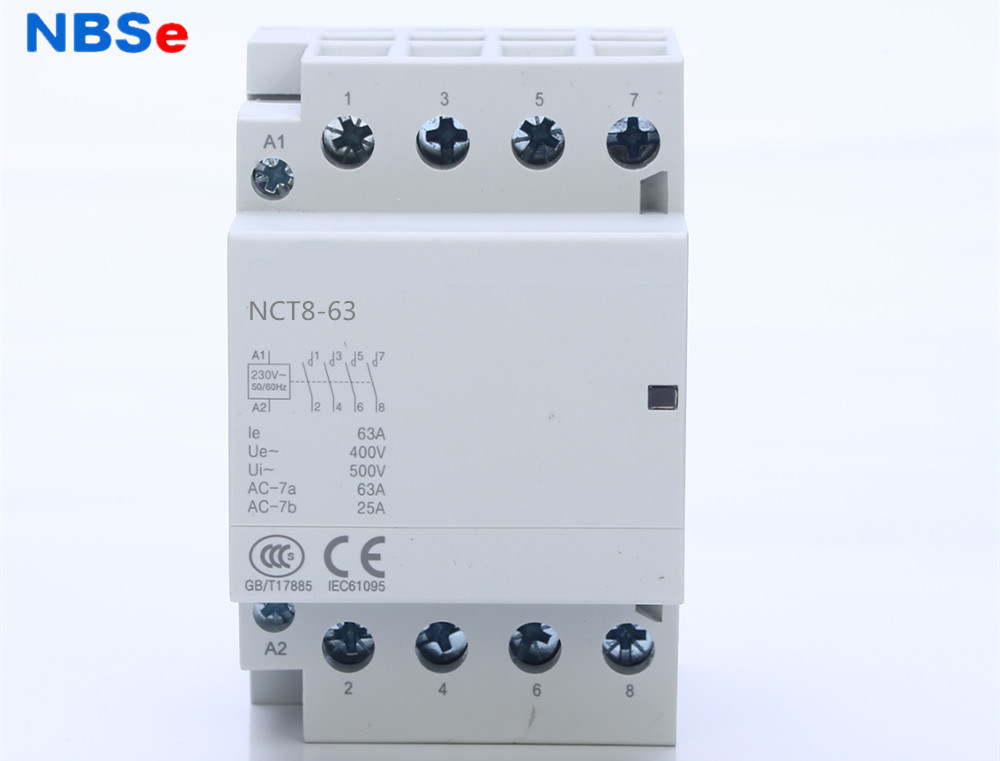

| Model No.: | NCT8-63 | Number Of Poles: | 4P |
|---|---|---|---|
| No. Of Auxiliary Contacts:: | 4NO / 4NC / 2NC+2NO /3NO+1NC | Coil Voltage: | 24v-660v |
| Rated Voltage:: | 24vac...110v 220v, 230vac,240vac | Electrical Life: | 1000000 Times |
| Material: | High Standard Plastic Silver Copper | Electricity Type: | AC |
| Product Name: | Ac Contactor Magnetic Starter | Color: | White Black |
| Application: | AC Motor,Electrical Power | ||
| High Light: | ac magnetic contactor,magnetic overload relay |
||
Normal operation and mounting requirement
Technical Data:
Rated current(In):20,25,40,63,80,100A
Rated operational voltage(Ue):230/240VAC,400/415VAC
Number of module:1M,2M,3M
Rated frenquency:50/60Hz
Utilization category:AC1,AC3,AC7a,AC7b,AC5b
Electrical endurance:150,000cycles(AC1,AC7a,AC3,AC7b)
Mechanical endurance:1,000,000cycles
Rated insulation voltage(Ui):500VAC
Rated impulse withstand voltage(Uimp):4KV
Terminal:pillar type
Cable termination:16/25mm2
Torque of screw:1.2/2Nm
IP degree:IP20
Standard:IEC/EN61095,IEC/EN60947-1
Catalog No. CTN Size:46.5x24x17.5CM
| Model | Description | QTY/Box | QTY/CTN |
| NCT8-25-24/40 | 25A 24V 4NO | 1 | 60 |
| NCT8-25-48/40 | 25A 48V 4NO | 1 | 60 |
| NCT8-25-110/40 | 25A 110V 4NO | 1 | 60 |
| NCT8-25-230/40 | 25A 230V 4NO | 1 | 60 |
| NCT8-25-24/04 | 25A 24V 4NC | 1 | 60 |
| NCT8-25-48/04 | 25A 48V 4NC | 1 | 60 |
| NCT8-25-110/04 | 25A 110V 4NC | 1 | 60 |
| NCT8-25-230/04 | 25A 230V 4NC | 1 | 60 |
| NCT8-25-24/22 | 25A 24V 2NO+2NC | 1 | 60 |
| NCT8-25-48/22 | 25A 48V 2NO+2NC | 1 | 60 |
| NCT8-25-110/22 | 25A 110V 2NO+2NC | 1 | 60 |
| NCT8-25-230/22 | 25A 230V 2NO+2NC | 1 | 60 |
| NCT8-25-24/31 | 25A 24V 3NO+1NC | 1 | 60 |
| NCT8-25-48/31 | 25A 48V 3NO+1NC | 1 | 60 |
| NCT8-25-110/31 | 25A 110V 3NO+1NC | 1 | 60 |
| NCT8-25-230/31 | 25A 230V 3NO+1NC | 1 | 60 |
Ratings
| Utilization category |
Ui (V) | Ui (V~) | Conventional heating current (A) |
Ie (A) | Controlled power (kW) |
| AC-1, AC-7a AC-7b | 500 | 230 | 63 | 63/25 | 13/3.8 |
| AC-1, AC-7a AC-7b | 500 | 230 | 40 | 40/15 | 8.4/2.4 |
| AC-1, AC-7a AC-7b | 500 | 230 | 32 | 32/12 | 6.5/1.9 |
| AC-1, AC-7a AC-7b | 500 | 230 | 25 | 25/8.5 | 5.4/1.9 |
| AC-1, AC-7a AC-7b | 500 | 230 | 20 | 20/7 | 4/1.2 |
Making and breaking capacity
| Utilization category |
Making and breaking conditions | Electrification time (s) |
Interval time (s) |
Operating cycle times |
||
| Ic/Ie | Ur/Ue | COSΦ | ||||
| AC-1, AC-7a | 1.5 | 1.05 | 0.8 | 0.05 | 10 | 50 |
| AC-7b | 8 | 1.05 | 0.45 | 0.05 | 10 | 50 |
Conventional operating performances
| Utilization category |
Making conditions | Breaking conditions | Electrification time (s) |
Interval time (s) |
Operating frequency |
||||
| Ic/Ie | Ur/Ue | COSΦ | Ic/Ie | Ur/Ue | COSΦ | ||||
| AC-1 | 1.0 | 1.05 | 0.8 | 1.0 | 1.05 | 0.8 | 0.05 | 10 | 6000 |
| AC-7a | 1.0 | 1.05 | 0.8 | 1.0 | 1.05 | 0.8 | 0.05 | 10 | 30000 |
| AC-7b | 6.0 | 1.0 | 0.45 | 1.0 | 0.17 | 0.45 | 0.05 | 10 | 30000 |
Product Dimension
