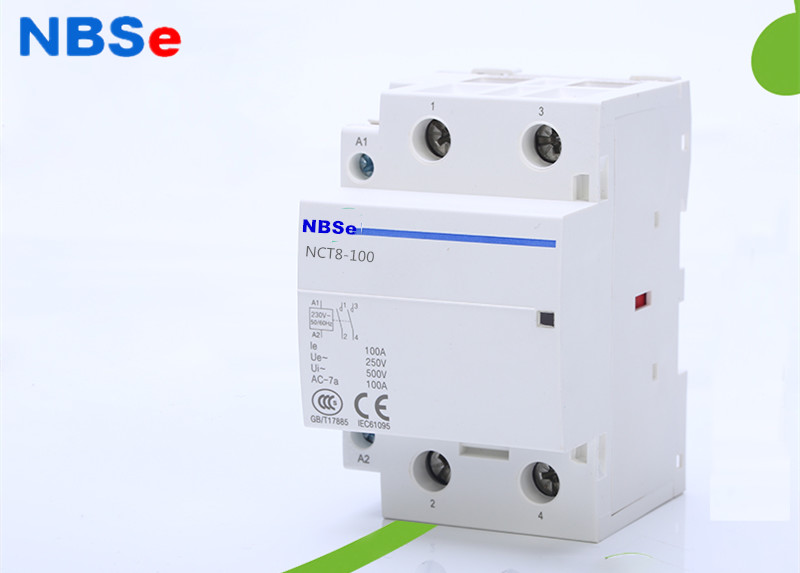

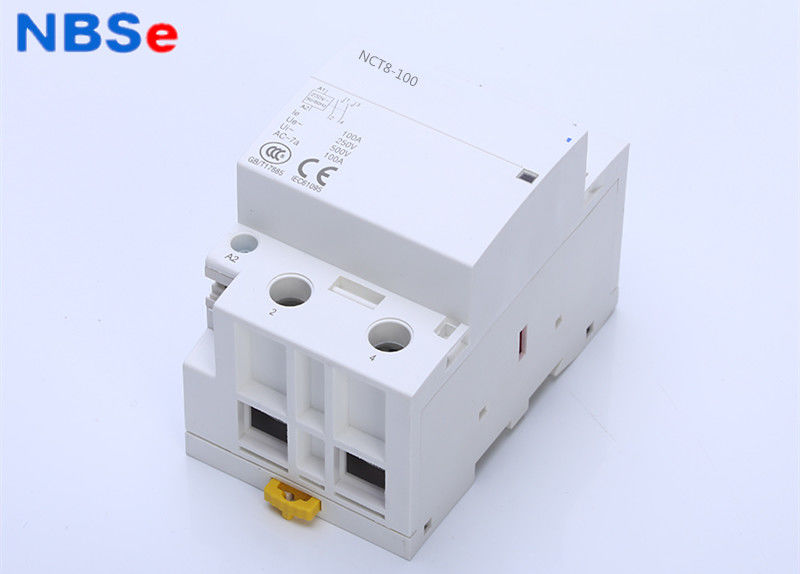

2 Poles Electrical Magnetic Contactor 220V 100A For Lighting Control System

Basic Information
Place of Origin: CHINA
Brand Name: NBSe
Certification: CE,ISO9000
Model Number: NCT
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export Packing
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs per month
Detail Information
Model No.: NCT8-25 Electricity Type: AC
Number Of Poles: 2P Phase: Single Phase
Main Circuit Rating Voltage: 24vac...110v 220v, 230vac,240vac Main Circuit Rating Current: 100A
Standard: IEC60947-4 Frequency: 50/60Hz
Mounting: 35mm Din Rail No. Of Auxiliary Contacts:: 2NO / 2NC / 1NC+1NO
Coil Voltage: 24v-660v Rated Voltage:: 24vac...110v 220v, 230vac,240vac
Material: High Standard Plastic Silver Copper
High Light:

magnetic contactor relay

,

magnetic overload relay


Product Description

Magnetic 2P 100A General Electric AC NCT Contactor For Home System



Technical Data:
Rated current(In):20,25,40,63,80,100A
Rated operational voltage(Ue):230/240VAC,400/415VAC
Number of module:1M,2M,3M
Rated frenquency:50/60Hz
Utilization category:AC1,AC3,AC7a,AC7b,AC5b
Electrical endurance:150,000cycles(AC1,AC7a,AC3,AC7b)
Mechanical endurance:1,000,000cycles
Rated insulation voltage(Ui):500VAC
Rated impulse withstand voltage(Uimp):4KV
Terminal:pillar type
Cable termination:16/25mm2
Torque of screw:1.2/2Nm
IP degree:IP20
Standard:IEC/EN61095,IEC/EN60947-1





Electric AC NCT Contactor

NCT series Modular AC contactor Can be used to remote control applications in the altermative networks:Lighting, heating, ventilation, roller blinds, sanitary hot water,Mechanical ventilation system, Load-shedding of non-priority circuits,etc.
AC contactor belongs to modular controlling electrical equipment, which has novelty structure, compact size, it is DIN-RAIL type, size of modular, modeling artistic. use of safety, direct acting inversion. And it can install in the distribution boards along with breakers.



Catalog No. CTN Size:46.5x24x17.5CM


Model Description QTY/Box QTY/CTN
NCT8-100-24/20 100A 24V 2NO 1 40
NCT8-100-48/20 100A 48V 2NO 1 40
NCT8-100-110/20 100A 110V 2NO 1 40
NCT8-100-230/20 100A 230V 2NO 1 40
NCT8-100-24/02 100A 24V 2NC 1 40
NCT8-100-48/02 100A 48V 2NC 1 40
NCT8-100-110/02 100A 110V 2NC 1 40
NCT8-100-230/02 100A 230V 2NC 1 40
NCT8-100-24/11 100A 24V 1NO+1NC 1 40
NCT8-100-48/11 100A 48V 1NO+1NC 1 40
NCT8-100-110/11 100A 110V 1NO+1NC 1 40
NCT8-100-230/11 100A 230V 1NO+1NC 1 40



Ratings

Utilization
category
Ui (V) Ui (V~) Conventional
heating current (A)
Ie (A) Controlled
power (kW)
AC-1, AC-7a AC-7b 500 230 63 63/25 13/3.8
AC-1, AC-7a AC-7b 500 230 40 40/15 8.4/2.4
AC-1, AC-7a AC-7b 500 230 32 32/12 6.5/1.9
AC-1, AC-7a AC-7b 500 230 25 25/8.5 5.4/1.9
AC-1, AC-7a AC-7b 500 230 20 20/7 4/1.2


Making and breaking capacity

Utilization
category
Making and breaking conditions Electrification
time (s)
Interval
time (s)
Operating
cycle times
Ic/Ie Ur/Ue COSΦ
AC-1, AC-7a 1.5 1.05 0.8 0.05 10 50
AC-7b 8 1.05 0.45 0.05 10 50


Conventional operating performances

Utilization
category
Making conditions Breaking conditions Electrification
time (s)
Interval
time (s)
Operating
frequency
Ic/Ie Ur/Ue COSΦ Ic/Ie Ur/Ue COSΦ
AC-1 1.0 1.05 0.8 1.0 1.05 0.8 0.05 10 6000
AC-7a 1.0 1.05 0.8 1.0 1.05 0.8 0.05 10 30000
AC-7b 6.0 1.0 0.45 1.0 0.17 0.45 0.05 10 30000
