NBSK1-125 Circuit Breaker Disconnect Switch , Circuit Disconnect Switch 40A

Basic Information
Place of Origin: CHINA
Brand Name: NBSe
Certification: CCC,CE
Model Number: NBSK1-125
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export packing
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 400,000pcs per month
Detail Information
Model Number: NBSK1-125 Max.Current: 125A
Rated Voltage: 230V/400V Usage Category: AC-22A
Frequency: AC 50 Hz/60Hz Impulse Withstand Voltage: 6kV
Isolating Function: Yes Rated Short Circuit On-off Capability: 20Ie ON 0.1s
Standard: IEC60947-3,GB14048.3
High Light:

electrical disconnect switch

,

power disconnect switch


Product Description

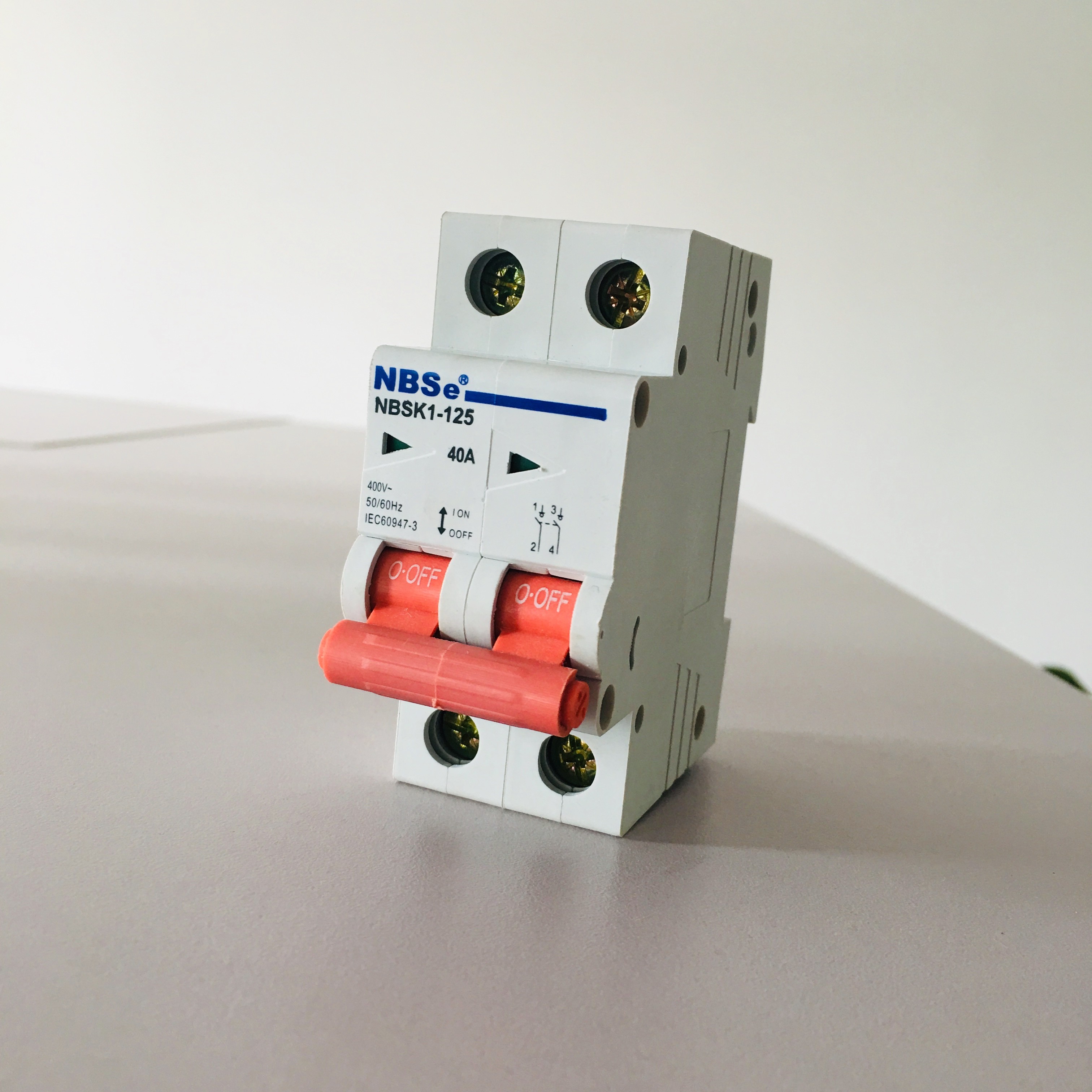

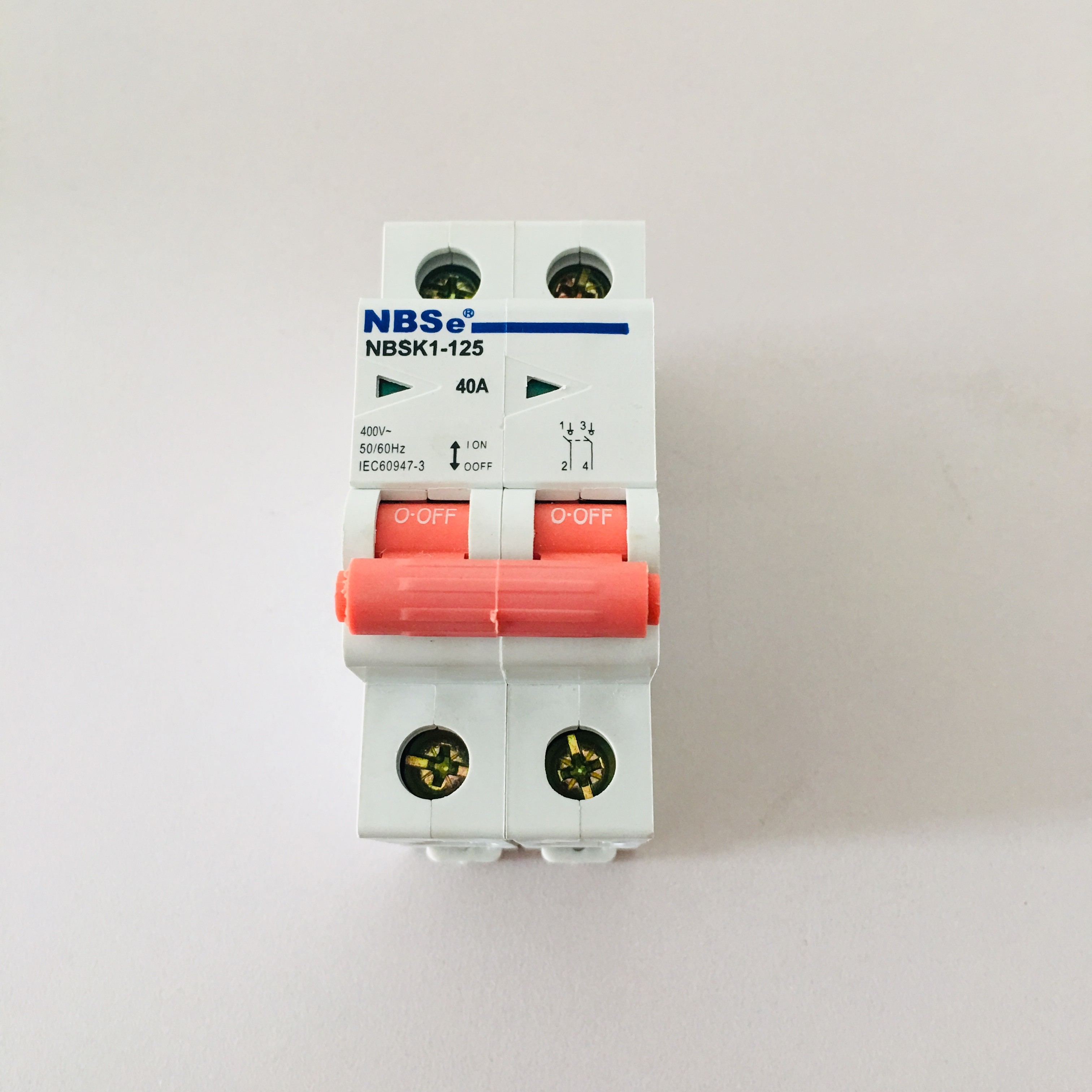

NBSe NBSK1-125 2P 40A Isolation Switch,Main Switch





Features



High-current instantaneous tripping function: When the circuit breaker is closed or during operation, if short-circuit high current (> 20 [nm) is encountered, the magnetic tripping mechanism of the circuit breaker can be tripped directly, and the double protection is more reliable and safe;
With trip test (test) function: input DC DC12V voltage test circuit breaker action characteristics;
Fault self-diagnosis function: protect and check the working status and running quiet condition of the intelligent controller itself;
High protection tip: overload protection, short-circuit short-delay protection action time accuracy t 10%; short-circuit instantaneous protection action value tip is 15% depending on the action current:



Description:



1. Thermosetting material shell, high stability of Mechanical property and size, Excellent corrosion resistance, and Heat resistance and arc resitance, Excellent performance
2. Double contact design, Reliable action
3. optimal design for contact system and trip mechanism
4. Spring energy storage design to
5. din rail mounting,easily be used with Modular electrical devices



Technical Parameter:



Rated current In 32,40,50,63,80,100,125A
Poles 1P,2P,3P,4P
Rated voltage Ue 240/415V
Insulation voltage Ui 500V
Rated frequency 50/60Hz
Rated short-time withstand current Icw 12Ie,1s
Rated making and breaking capacity 3Ie,1.05Ue,cosφ=0.65
Rated short circuit making capacity 20Ie,t=0.1s
Rated impulse withstand voltage(1.5/50) Uimp 4,000V
Dielectric test voltage at ind.Freq. for 1min 2.5kV
Utiliaztion category AC-22A



Electrical life 4,000 Cycles
Mechanical life 10,000 Cycles
Contact position indicator Handle with Red/Green mark
Protection degree IP20



Terminal connection type Cable/Pin-type busbar
Terminal size top/bottom for cable



50mm 18-2AWG

Terminal size top/bottom for busbar



50mm 18-2AWG

Tightening torque 3.5Nm 30In-lbs
Mounting On DIN rail EN60715(35mm) by means of fast clip device
Connection From top and bottom
