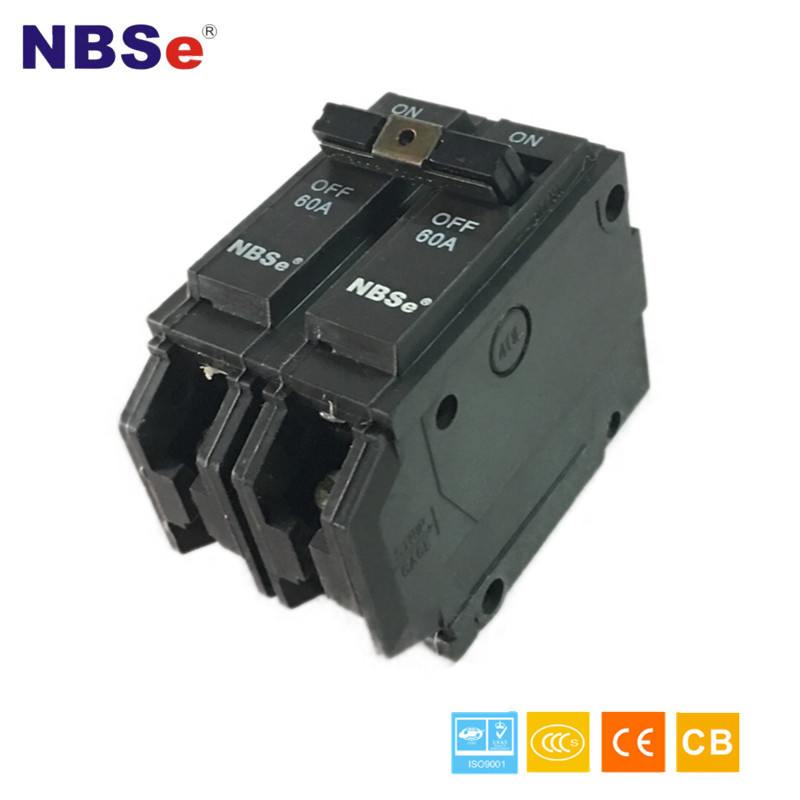

NBSe TQL 2P 60A Plug Fuse Circuit Breaker 10kA 50/60Hz For Household / Automotive

Basic Information
Place of Origin: CHINA
Brand Name: NBSe
Certification: CCC,ISO9000
Model Number: TQL
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export Packing
Delivery Time: 10-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 40,000pcs per month
Detail Information
Material: Bakelite Color: Black
Type: Mini Rated Frequency: 50/60Hz
Rated Voltage: 110V/220V/440V Icn: 10kA
Standard: EN/IEC60947-2 Tripping Type: Thermal/magnetic Release
Protection: Overload And Short Circuit Application: Automotive/electrical,Household Appliances,Low Voltage
High Light:

plug trip switch

,

plug in type circuit breaker


Product Description

NBSe 20 Amp, 2-Pole, TQL Plug-On Circuit Breaker, 10 kAIC, Wire Size #14-4, 120/240 VAC



Description:



The TQL Plug-in type breaker is characterized by compact design, light weight, elegant appearance, high breaking capacity, swift releasing, long service life, Different handle color for different rated current, with contactor condition indicator.



The product shall be operated under the following environmental conditions:

● Non-explosive;

● Does not contain corrosive gases and vapors in concentrations destroying metals and insulation;

● Not rich conductive dust and vapors;

● Lack of direct exposure to ultraviolet radiation;

● Should not be signifinant shock or vibration.

Transport ans storage are only permitted in the original packing.

The ambient storage temperature:-45...+60° C and humidity not above80% (at 25° C without condensation).





Applications:



Technical Data
♦ Standard:Confirming to EN / IEC60947-2
♦ Breaking capacity:10kA
♦ Protection:Against overload and short circuit
♦ Rated current In:15,20,30,40,50,63,80,100A
♦ Rated voltage:
◊ 1pole 230/400V AC 50/60Hz
◊ Rated insulation voltage Ui: 500V
◊ Rated impulse withstand voltage Uimp: 6000V
◊ Energy limiting class: 3
♦ Ambient temperature:-5°C to +40°C pursuant to EN / IEC60947
♦ Characteristic:
◊ Thermal operating limit: (1.13-1.45) x In
◊ Magnetic operating: B: (3-5) x In,C: (5-10) x In,D: (10-20) x In
♦ Number of poles:1P,2P,3P, 4P
♦ Type of trip:Thermal / magnetic release
♦ Type of terminal:Lug type and Pin type
♦ Terminal capacity:
◊ 16mm² flexible or 25mm² rigid up to 25A ratings
◊ 25mm² flexible or 35mm² rigid for 32A to 63A ratings
♦ Protection degree:IP20
♦ Installation:DIN rail
♦ Width:27mm per pole
