NBSM30 Molded Case Circuit Breaker up to 800A

Basic Information
Place of Origin: CHINA
Brand Name: NBSe
Certification: CE,ISO9000
Model Number: NBSM30
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Export Carton
Delivery Time: 10-20day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10,000pcs per month
Detail Information
Material: ABS, COPPER Poles Number: 4 Pole
Rated Frequency: 50/60Hz Standard: IEC60947-2
Rated Current: 50-100A Type: Moulded Case,Magnetic
Rated Voltage: AC230/440/660 Product Name: Mccb Moulded Case Circuit Breaker
Breaking Capacity: 25~100KA Installation: Fixed And Plug-in,Easy,Easy To Install
High Light:

adjustable circuit breaker

,

high voltage circuit breaker


Product Description

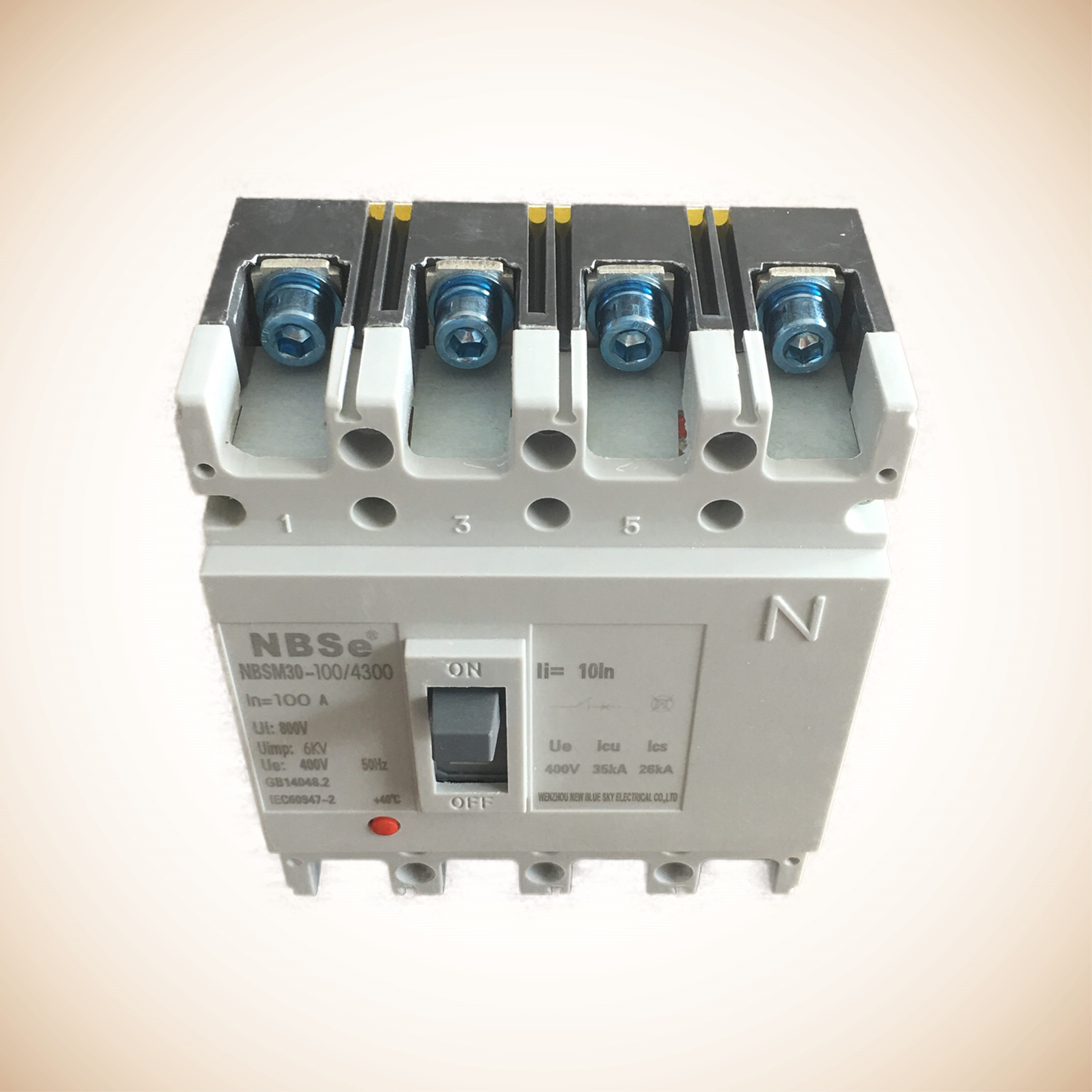

NBSe NBSM30-100/4300 mold case circuit breaker,thermal magnetic circuit breaker



1. Product Description



NBSM30 moulded case circuit breaker series is one of products developed and manufactured by adopting international advanced technology. It's supplied with rated insulation voltage 800V(NM1-63 is 500V)and rated operating voltage is 690V (or below,NM1-63 is 400V),rated operating current up to 1250A for inf requent changing over and starting of the motors. The KCM1 series is suited to vertical installation and horizontal installation. The temperature is not higher than 40 ℃ and not less than -5℃.



2. Technical Data



Type Rated Current (A) Pole number Rated Insulating Voltage(V) Rated operating voltage(V) Ultimate short circuit breaking capacity(KA) Servies short circuit breaking capacity(KA) Utilization category
NBSM30-63L (6),10,16,20,25 ,32,40,50,63 3 AC 500V 400V 25 18 A
NBSM30-63M 50 35
NBSM30-100L (10),16,20,25,32,40, 50,63,80,100 AC 690V 35 22
NBSM30-100M 50 35
NBSM30-100H 85 50
NBSM30-225L 100,125,160,180,200,000 4 35 25
NBSM30-225M 50 35
NBSM30-225H 85 50
NBSM30-400L 225,250,315,400 50 35
NBSM30-400M 65 42
NBSM30-630L 400,500,630 50 35
NBSM30-630M 65 42
NBSM30-630H 100 65
NBSM30-800M 630,700,800 3 70 50
NBSM30-800H 100 65
NBSM30-1250 80,010,001,250 65 32.5



Note: 6A without thermal protection
The N-pole of four-poles breaker is sited at the right side of the product has four types:
Type A: Without current trip-lease on N pole which making all the time, not closing and opening with the other three poles.
Type B: Without current trip-release on N pole which closing and opening with the other poles.
Type C: With current trip-release which closing and opening with the other three poles.
Type D: With current trip-release which making all the time not closing and opening with the other three poles.



3. Protection Characteristic


The thermodynamic release of a circuit breaker provides the feature of inverse time-delay, while the magnetic release is the instantaneous operation as shown on table 2(distribution circuit breaker) and table 3 (motor protection circuit breaker).

Table2

Rated current of release (A)

Thermodynamic release

( ambient temperature )

land +40°C marine +45°C

Operating

current

of magnetic

release (A)

1.05In(cold state)

Inoperative time(h)

1.30In(heat state)

Operative time(h)

10≤In≤63 ≥ 1 < 1 10In±20%
63≤In≤100 ≥ 2 < 2
100≤In≤800 ≥ 2 < 2 5In±20% 10In±20%


Table3

Rated current Thermodynamic release ( ambient temperature ) land +40°C marine +45°C

Operating current

of magnetic release (A)

of release (A) 1.0In(cold state) non-trip time(h)

1.20In(heat state)

trip time (h)

1.50In(heat state)

trip time (h)

7.2In(cold state)

trip time(h)

10 ≤ In ≤ 225 ≥ 2 <2 ≤ 4min 4s < Tp ≤ 10s 12In±20%
225 ≤ In ≤ 630 ≤ 8min 6s < Tp ≤ 20s
