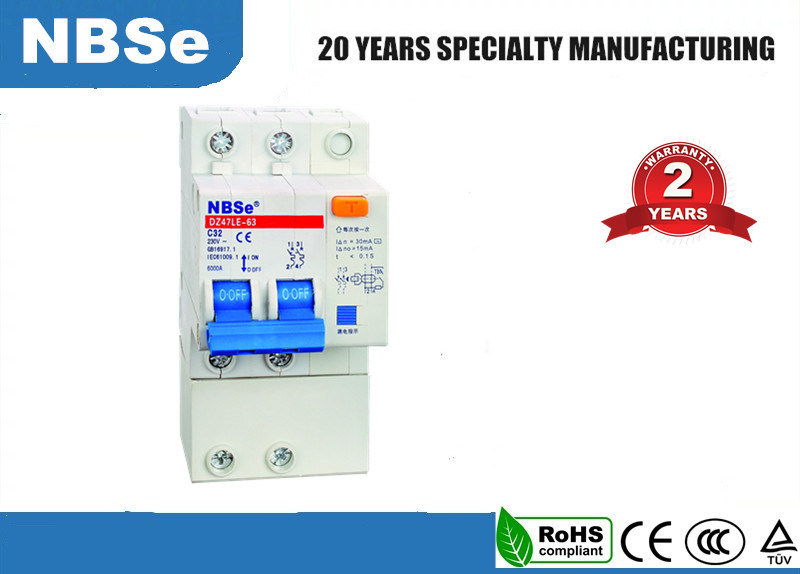

IEC61008-1 10A Single Phase ELCB Circuit Breaker Leakage Protection

Basic Information
Place of Origin: CHINA
Brand Name: NBSE/OEM
Certification: CE
Model Number: DZ47LE
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Export Carton
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30,000pcs per month
Detail Information
Type: Residual Current, Elcb Mcb Application: Short-circuit Protection,Electrical Power,earth Leakage Protection
Poles Number: 1P 2P 3P 4P Rated Frequency: 50/60Hz
Rated Current: 6A-63A Leakage Action Current: 30mA,100mA,300mA
Rated Voltage: 230/400V Standard: IEC61008-1
Warranty: 2 YEARS Breaking Capability: 6KA
High Light:

IEC61008-1 elcb circuit breaker

,

10A elcb circuit breaker

,

IEC61008-1 single phase elcb


Product Description

DZ47LE Elcb Mcb, Circuit Breaker With Earth Leakage, Elcb Mcb Price From Manufacturer



1. APPLICATION



Electronic Type Rcbo

Residual current operated circuit breaker DZ47LE series residual current operated circuit breaker is applied to the circuit of AC 50Hz or 60Hz, rated voltage of single electrode two lines, two electrodes 230V, three electrodes four lines, four electrodes 400V, rated current up to 60A; when the human body has electric shock, or the electric leakage current exceeds the set value, residual current operated circuit breaker will quickly cut off the faulted power within a very short period of time failure to protect the personal safety and the safety of electrical equipments. The residual current operated circuit breaker has overload and short circuit protection function, which can be used to protect the overload and short circuit of the circuit or the motor, and can be used as a non frequent switching starting of the circuit under normal conditions.

main switch and circuit breaker

main switch circuit breaker price



2. Technical Data

● Rated current (ln): 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
● Rated residual operating current: 30mA (Standard Default), 15mA (Customized), 50mA (Customized), 100mA (Customized), 300 mA (Customized)
● Funtions:
□ Overcurrent fault: circuit breaker and residual current action device reset at the same time
□ Leakage fault: the residual current operating device shall be reset first, and the circuit breaker shall be reset later
□ Lightning protection fault: the lightning protection device shall be reset first, and the circuit breaker shall be reset later
● Poles: 2P (single-pole two-wire residual current action circuit breaker)
● Trip Type: C type (5 ~ 10) In (strandard default) and D type (10~16)ln (customized)
● Rated voltage Un (v): AC 220V-250V, 110V-127V (Customized)
● Rated isolation voltage: 500V ● Lightning Protection Level: 3
● Rated short-circuit capability Lcb (A): 6kA
● Insulation impulse voltage: 8KV
● Electrical life: 10000
● Mechanical life: 20000
● Standard: IEC61009-1
● Warranty: 18th Month

main switch and circuit breaker

main switch circuit breaker price

DZ47LE Elcb Mcb, Circuit Breaker With Earth Leakage, Elcb Mcb Price From Manufacturer


        OUR FACTORY

IEC61008-1 10A Single Phase ELCB Circuit Breaker Leakage Protection 0IEC61008-1 10A Single Phase ELCB Circuit Breaker Leakage Protection 1
IEC61008-1 10A Single Phase ELCB Circuit Breaker Leakage Protection 2

DZ47LE Elcb Mcb, Circuit Breaker With Earth Leakage, Elcb Mcb Price From Manufacturer



FAQ:
Q1: What's your product Range?
A.
- Shell Unti-fire. nylon pa66 or not unti-fire.
- Parts, Copper or iron
- Point Sliver point or Copper point

Q2: Are you a manufacturer?
A. Yes, we are only produce the circuit breaker over 20 years from 1999.

Q3: Do you have stock products to sell?
A. No,we work on OEM orders, The means, material, quantity,packing solution,etc will depend on your requests.obviously, your logo can be printed on the products.

Q4. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q5. how's the delivery time ?
A. usually it will take about 30 days for 30000pcs

Q6. tell me the standard of package?
A. Normally are cartons, color box or white box

Q7. what kind of material of circuit breaker?
A. we have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the electrical life. Copper and silver is better and also higer price.
Q8. We want to know month capacity.
A. 400,000pcs/month
Q9. Where is your market?
A. Our products are popular in Western Europe, Middle-East, Afirca, South Asia ,South Ameirca countries and area. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q10. what kind of certificate you have ?
A. CE, CB,CCC,ISO9000.

Q11. Do you inspect the finished products
A.Yes.Each step of products will be inpected by QC department before shipping.

Q12. How are you ship the finished products?
- By Sea
- By plane
- By counties,TNT, DHL,FEDEX,UPS.etc.
