| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NBSe |
| Certification: | CE,CB,CCC |
| Model Number: | NBSM1-125 |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | Export packing |
| Delivery Time: | 10-20days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 400,000pcs per month |
| Type: | Industrial Type | Pole: | 1P 2P 3P 4P |
|---|---|---|---|
| Characteristic Curve: | B,C,D | Certificate: | CE CB Approved |
| Rated Frequency: | 50/60Hz | Product Name: | Mcb 100a |
| Breaking Capacity: | 6kA | Endurance: | 8000(ELECTRIC)/2000(MECHANICAL) Times |
| Standard: | EN/IEC60947-2, IEC60898 | ||
| High Light: | IEC60947-2 100a 2 pole breaker,MCB 100a dc circuit breaker,TUV 2 pole dc circuit breaker |
||

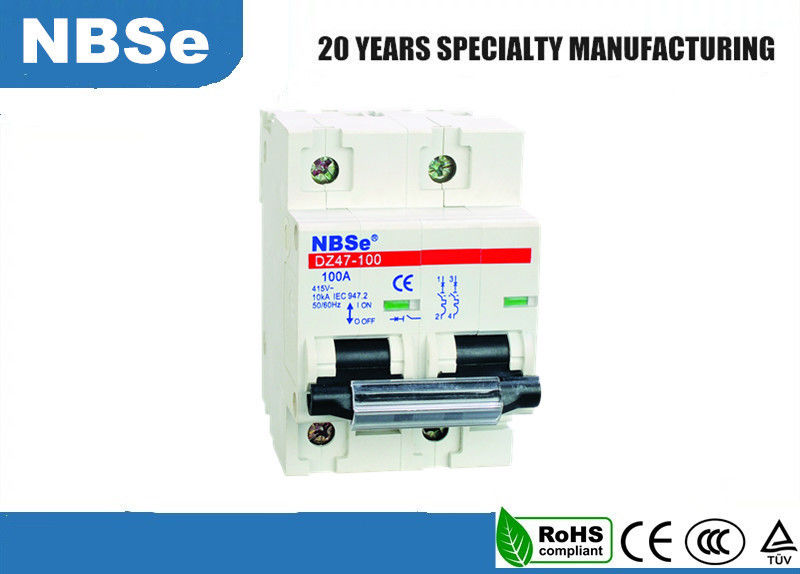

OEM ODM White 2pole 100A MCB switch
Description:
NBSM1-125 high breaking miniature circuit breaker has the features of structure advanced, performance reliable, breaking capacity high, appearance elegant and its shell and parts are made of material with impact resistance, strong flame-retardant feature.
It is suitable to power system of 50or 60 frequency ,Ue 400V and below, Ui 125A and below.
It is mainly applied at office building, residence, for lighting , power distribution and overload and short circuit protection of equipment. Normally, it also can be used as the not frequent transfer of power system. It conforms to the standards IEC60898 and GB10963.1.
Products features:
1·Breaking capacity highly, all rated current can be up to above 10KA.
2·Double connection function, connect busbar and lead conveniently.
3·With stored energ machine, contact close fast, avoid the disadvantage of manpower operated,Hence improve the using-life of products.
4·with protection terminal, more safety.
5·Many kinds of accessories can be choosed, in modularize and flexibility combine that make the customer install conveniently.
6·The cover and function parts both are made of inflaming retarding,bear high temperature and bear impact plastic.
|
Type
|
NBSM1-125 |
|
Poles
|
1P/2P/3P/4P
|
|
Rated current
|
6-10-16-20-25-32-40-50-63-80A
|
|
Rated voltage
|
230V/400V
|
|
Characteristic capacity
|
6KA/10KA
|
|
Electrical life
|
6000times
|
|
Mechanical life
|
2000times
|
|
Curve
|
B,C,D
|
|
Certificate
|
TUV,CE,CB
|
|
Standards
|
IEC-60898.1
|
|
Connection terminal
|
Screw terminal / Pillar terminal with calmp
|
|
Connection capacity
|
Rigid conductor up to 25mm²
|
|
Fastening torque
|
2.0Nm
|
|
Installation
|
On symmetrical DIN rail 35mm / Panel mounting
|

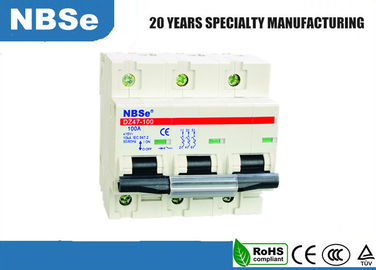

OEM ODM White 2pole 100A MCB switch
Wiring Diagrams
Over-Current Protection Property

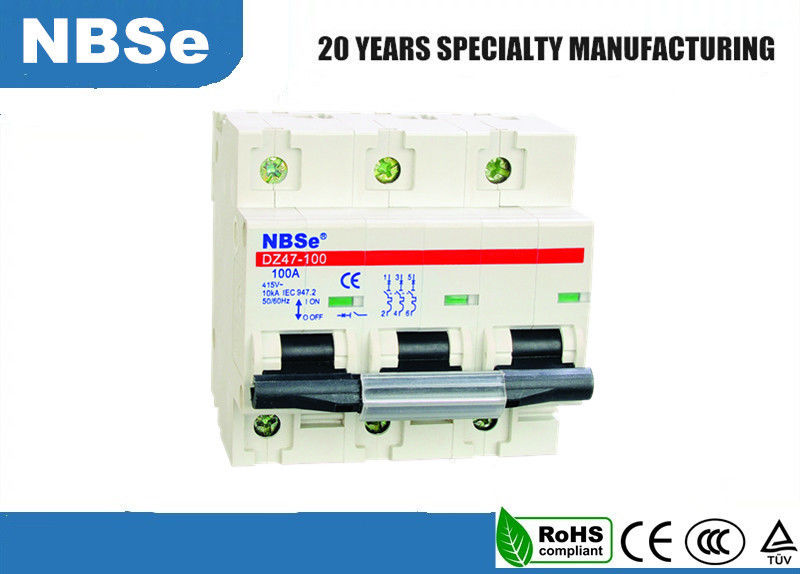

OEM ODM White 2pole 100A MCB switch
FAQ
Q1:If I'm interested in your product when I can receive your quotation and detail information after send the enquiry?
A1:All your enquiry will be replied in 24hours.
Q2:Can I get a sample before the order because I really don't how is your product quality?
A2:Of course! We can offer free samples , We think sample order is the best way to build the trust. Please send the enquiry to us and get the free sample!
Q3:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A3:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
Q4:I need your price list of all your products, do you have a price list?
A4:Surely ,we can send the price list to you ,please send your email address to me.
Q5. Do you accept OEM business?
A5:We accept OEM with your authorization.we also can ODM for you.
Q6: How's the delivery?Because I really need them is urgently?
A6: Samples cost 2-3 days. Bulk order cost 7-15 days.
Q7. What is your terms of delivery?
A7: EXW, FOB, CFR, CIF, DDU.
Q8. Do you test all your goods before delivery?
A8: Yes, we have 100% test before delivery
Q9:Any quality guarantee or after-sales service?
A9:All the products have 2-4 years’ Guarantee. If any quality complaint , we will give out solution within 5 days.
