| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NBSE/OEM |
| Certification: | CE, ISO9000 |
| Model Number: | DDC BACO |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | Export Carton |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30,000pcs per month |
| Poles: | 2P,4P | Type: | Molded Case BACO |
|---|---|---|---|
| Rated Voltage: | 220V/440V | Rated Current: | 5-90A Adjustable |
| Leakage Operating: | 300mA, 500mA | Shell: | Fire-proof |
| Standard: | NFC61450, NFC62411 | Application: | Household,Terminal Distribution,Electricity Distribution Room |
| High Light: | NFC62411 rccb rcbo,NFC62411 electrical leakage circuit breaker,300mA rccb rcbo |
||

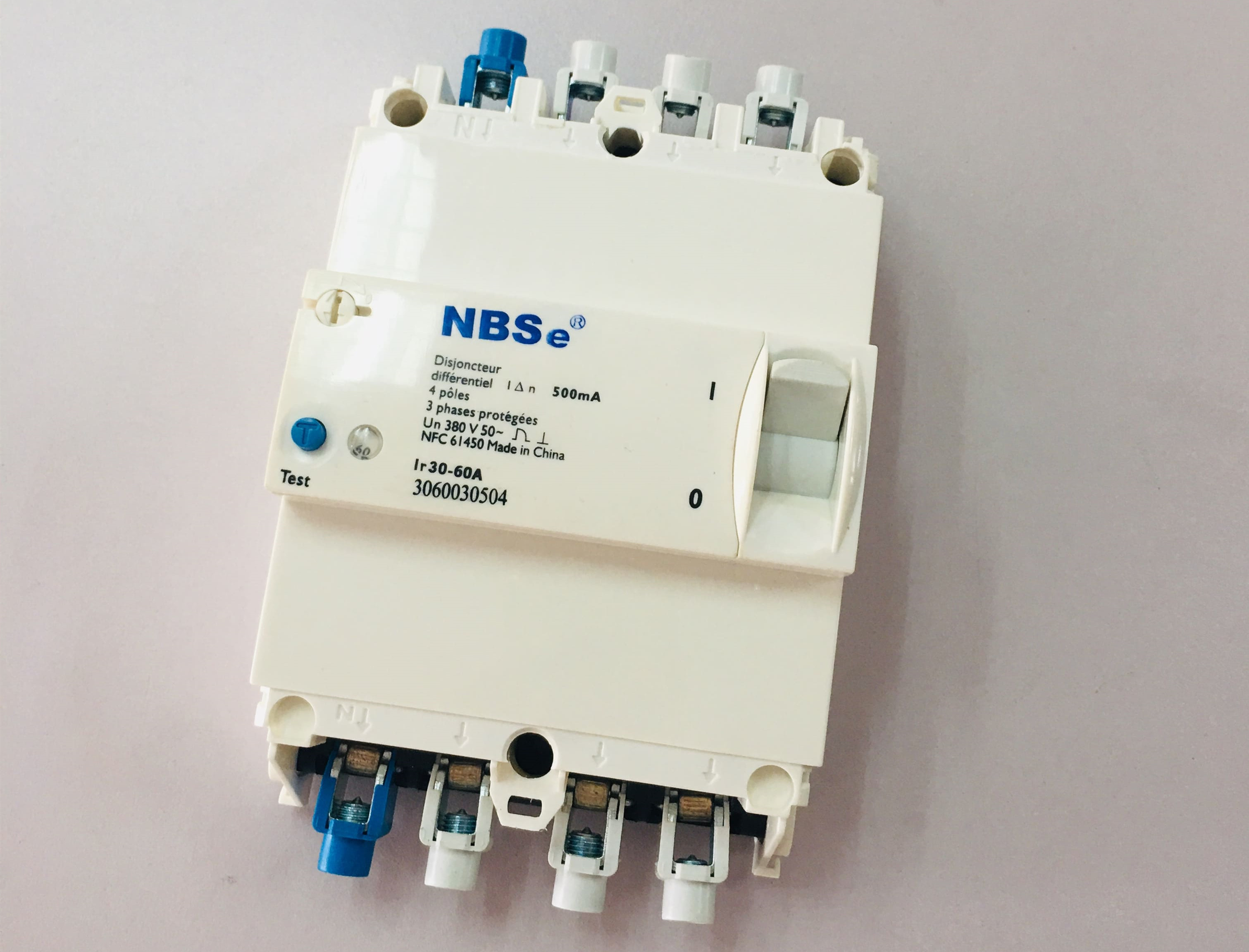

Electrical Circuit Breaker EDF 401004 Differential 500 mA Selective 2P 60
1. Application
The DDC breaker is divided into 2 poles and 4 poles. It can be applied to the circuit breaker installed on the control panel of the primary equipment, and can also be applied to the control terminal of the shopping mall, base station and home power supply board.
Feature as below:
1)This product has a high level of safety protection.
2)Not affected by ambient temperature.
3)Multi-step adjustable of rated current.
4)Rated current digital display.
5)With anti-stealing function
2.Specification and Configuration
1. earth leakage break time: < 0.2 s for 1 In , < 0.1 s for 2 In
2. earth leakage tripping: 300 mA, 500 mA or 650 mA
3. operating temperature: - 20 ° C to + 55 ° C
4. voltage drop: < 0.3 V
5. insulation resistance: > 2 M
6. dielectric withstand
7. 2 kV AC for 1 minute
8. 4 kV between poles and frame
9. tripping curve: C type & D type
10. operation in all positions
11. ON/OFF control by a handle
12. rating easily changed
13. lead-sealable terminal shields
14. captive terminal screws
15. pivoting terminals
16. copper cables up to 35 mm²
17. neutral identified in blue
caractéristiques techniques du produit disjoncteur différentiel largeur en nombre de modules 4 profondeur dencastrement 51 mm nombre de pôles protégés 1 nombre de pôles total 2 degré de pollution 2 pôle neutre sectionné simultanément oui immunisé contre déclenchements intempestifs non type de tension ac tension assignée ue 250 v adapté à une installation encastrée oui type de courant différentiel ca calibrecourant nominal assigné in 60 a sensibilité courant de défaut nominal iδn 0.5 ma tenue au courant de choc 0.25 ka fréquence 50 hz indice de protection ip ip40 caractéristique de déclenchement typecourbe autre section de raccordement cable souple 1-16 mm² section de raccordement cable rigide 1-25 mm² pouvoir de coupure nominal selon en 61009-1 icn 2.4 ka avec dispositif de verrouillage oui pouvoir de coupure assigné selon en 61009 2.4 ka tension disolement assignée ui 4000 v commentaires
Electrical Circuit Breaker EDF 401004 Differential 500 mA Selective 2P 60
Outshell and installation dimensions
Electrical Circuit Breaker EDF 401004 Differential 500 mA Selective 2P 60
DDC BACO Adjustable circuit breaker.pdf
