| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NBSe/OEM |
| Certification: | CE |
| Model Number: | DZ30LE-32 |
| Model: | DZ30LE-32 | Rated Voltage: | 230V |
|---|---|---|---|
| Type: | Mini | Rated Current: | 6,10,16,20,25,32A |
| Pole: | 1P+N | Standard: | IEC/EN61009 |
| Function: | Leakage Protection | Mounting: | Din-rail Type |
| Product Name: | RCBO,Electrical RCCB/RCD/ELCB | Application: | Household,Terminal Distribution,Electrical Power,widely,Electricity Distribution Room |
| High Light: | 32a RCBO Breaker,18mm 32a rcbo,18mm RCBO Breaker |
||

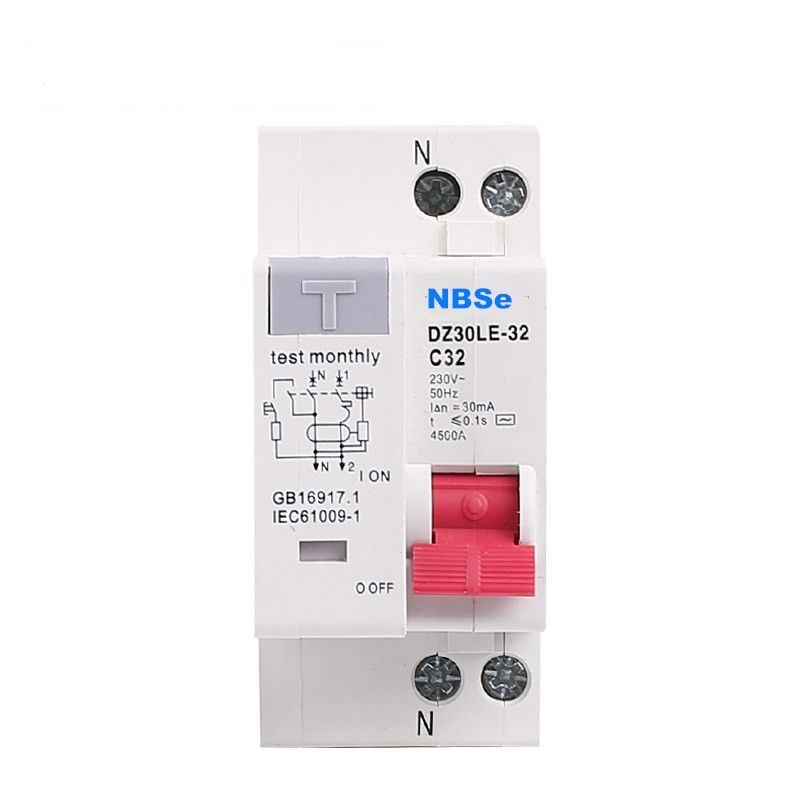

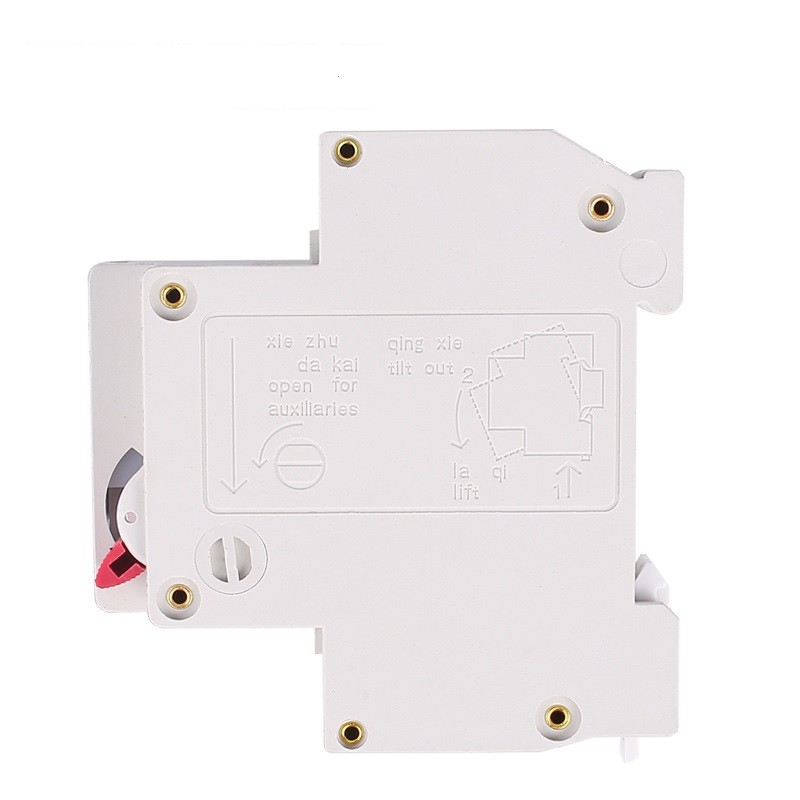

DZ30LE-32 1P+N 16A RCBO with short current Leakage protection RCCB+MCB
General description
Z30LE-32 (DPN Vigi) Leakage Protection Circuit Breaker(32A RCCB) is used for single-phase residential circuits of 50Hz or 60Hz, rated voltage of 230V, rated current 32A single-phase, as leakage protection, also can protect civil electrical circuit of overload and short-circuit, also can make and break electrical equipment and lighting circuit infrequently under normal circumstances infrequently, especially used for industrial and commercial lighting distribution system, when necessary, it can increase the function of over-voltage protection, overvoltage protection rating value Uvo = 280V. The product has a small size, high breaking capacity; Null and live line are cut off at the same time, and in the case of live line in reverse, still able to protect against leakage.
DZ30LE RCCB (32A RCCB) Leakage Protection Circuit Breaker meets standards of IEC61009-1 (1991), GB16917.1 (1997).
DZ30LE-32 1P+N 16A RCBO with short current Leakage protection RCCB+MCB
Main Technical Parameter
| 1)Provides protection against earth fault/leakage current, short-circuit,overload,and function of isolation. | |||||||||||
| 2)Contact position indication. | |||||||||||
| 3)Provides protection against indirect contact by human body. | |||||||||||
| 4)Provides complementary protection against direct contact by human body. | |||||||||||
| 5)Effectively protects electric equipment against insulating failure. | |||||||||||
| 6)Equipped with switched neutral and phase pole . | |||||||||||
| 7)Provides protection against over-voltage. | |||||||||||
| 8)Provides comprehensive protection to household and commercial distribution systems. | |||||||||||
| Technical Data | |||||||||||
| 9)Type: Electronic type | |||||||||||
| 10)Residual current characteristics: AC | |||||||||||
| 11)Pole No.: 1P+N | |||||||||||
| 12)Tripping curve: B,C,D | |||||||||||
| 13)Rated short-circuit capacity: 4.5KA | |||||||||||
| 14)Rated Current(A): ,10,16,20,25,32,40,63 | |||||||||||
| 15)Rated Voltage:230V AC | |||||||||||
| 16)Rated Frequency:50/60Hz | |||||||||||
| 17)Rated residual operating current(mA): 0.03,0.1,0.3 | |||||||||||
| 18)Tripping duration:instantaneous under or equal 0.1s | |||||||||||
| 19)Electro-mechanical: pillar terminal with clamp. | |||||||||||
| 20)Terminal Connection Height: H1=16mm ,H2=21mm | |||||||||||
| 21)Over-votage tripping: 280V±5% | |||||||||||
| 22)Connection capacity: Flexible conductor 10mm2 , Rigid conductor 16mm2 . | |||||||||||
| 23)Installation: On symmetrical DIN rail 35mm, Panel mounting | |||||||||||
| Accessories | |||||||||||
| 24) S2 Shunt Tripper | |||||||||||
| 25) U2+O2 Over-voltage and under-votage tripp |
The over-current protection property
| Ambient Temperature | Initial Status | Test Current | Expected Result | Expected Result | Note |
| Cold position | 1.13In | t ge 1h | Non-release | - | |
| 30plusmn2oC | Carried out immediately after previous test | 1.45In | t<1h | Release | - |
| Cold position | 2.55In | 1s < t < 60s | Release | Current smoothly rises to specified value within 5s | |
| -5~+40oC | Cold position | 5In | t ge 0.1s | Non-release | Type C |
| Cold position | 10In | t < 0.1s | Release | Type C |
DZ30LE-32 1P+N 16A RCBO with short current Leakage protection RCCB+MCB
This product complies with standards of GB16917.1. Filter equipment of RCD / ELCB can prevent instantaneous voltage (circuit garbling of lighting and other equipment) and instantaneous current (such as large capacitive load line) causing the malfunction trip.
