Fireproof Shell DDC 2P Differential RCBO Breaker

Basic Information
Place of Origin: CHINA
Brand Name: NBSE/OEM
Certification: CE, ISO9000
Model Number: DDC
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Export Carton
Delivery Time: 15-25days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30,000pcs per month
Detail Information
Type: Molded Case Poles: 2P
Rated Voltage: 220V/240V Rated Current: 10-15-20-25-30A
Leakage Operating: 300mA, 500mA Standard: NFC61450
Shell: Fire-proof Application: Household,Terminal Distribution,Electricity Distribution Room
High Light:

DDC automotive circuit breaker


2P electric leakage circuit breaker

Product Description

DDC 2P Differential RCBO Breaker Fireproof Shell With Anti Stealing Function,de branchement edf baco différentiel


1. Application


The DDC breaker is divided into 2 poles and 4 poles. It can be applied to the circuit breaker installed on the control panel of the primary equipment, and can also be applied to the control terminal of the shopping mall, base station and home power supply board.

Feature as below:

1)This product has a high level of safety protection.

2)Not affected by ambient temperature.

3)Multi-step adjustable of rated current.

4)Rated current digital display.

5)With anti-stealing function


2.Specification and Configuration


POLE: 2P, 4P
Ue: 230/400V
In: 5-15A(5, 10, 15)A;

10-30A(10, 20, 30)A;

10-30A(10, 15, 20, 25, 30)A;

30-60A(30, 45, 60)A;

60-90A(60, 75, 90)A
Breaking Capacity : 3KA

Residual current: 300mA, 500mA

caractéristiques techniques du produit disjoncteur différentiel largeur en nombre de modules 4 profondeur dencastrement 51 mm nombre de pôles protégés 1 nombre de pôles total 2 degré de pollution 2 pôle neutre sectionné simultanément oui immunisé contre déclenchements intempestifs non type de tension ac tension assignée ue 250 v adapté à une installation encastrée oui type de courant différentiel ca calibrecourant nominal assigné in 60 a sensibilité courant de défaut nominal iδn 0.5 ma tenue au courant de choc 0.25 ka fréquence 50 hz indice de protection ip ip40 caractéristique de déclenchement typecourbe autre section de raccordement cable souple 1-16 mm² section de raccordement cable rigide 1-25 mm² pouvoir de coupure nominal selon en 61009-1 icn 2.4 ka avec dispositif de verrouillage oui pouvoir de coupure assigné selon en 61009 2.4 ka tension disolement assignée ui 4000 v commentaires


3.Outshell and installation dimensions

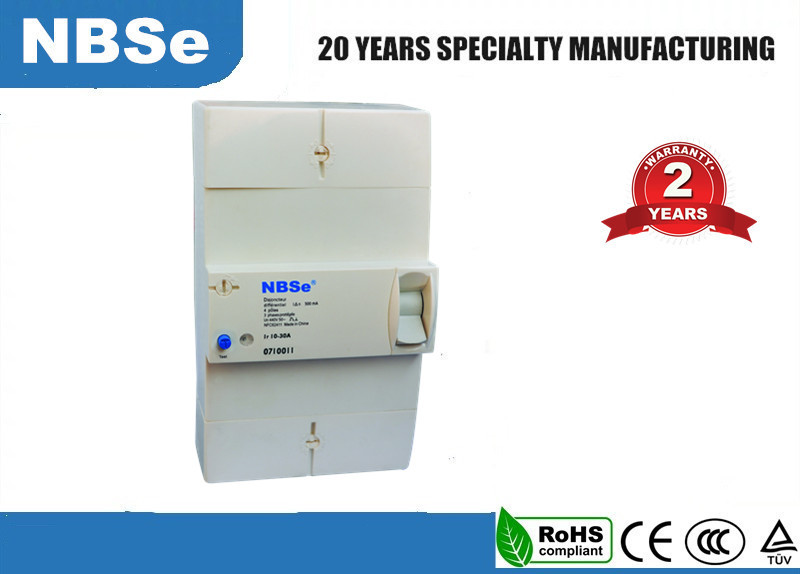

Fireproof Shell DDC 2P Differential RCBO Breaker 0

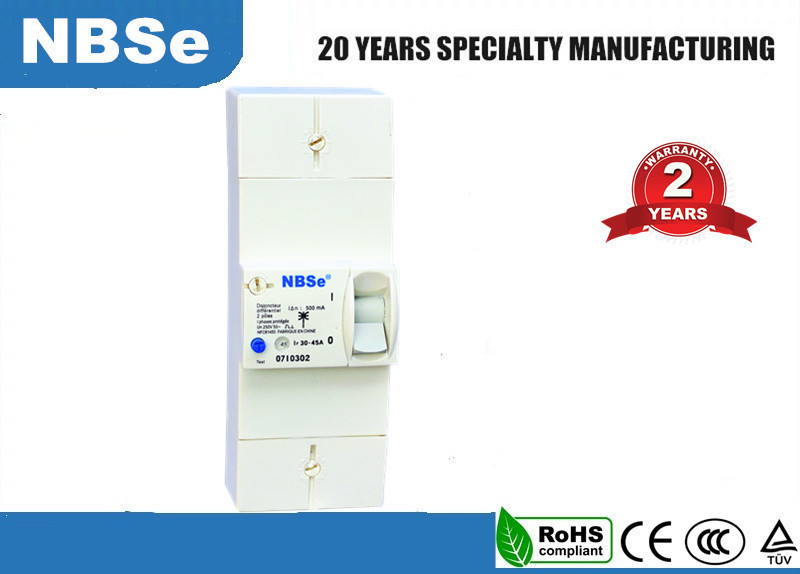

Fireproof Shell DDC 2P Differential RCBO Breaker 1

Fireproof Shell DDC 2P Differential RCBO Breaker 2

DDC BACO Adjustable circuit breaker.pdf
