|Poles Number:||1P 2P 3P 4P||Rated Frequency:||50/60Hz|
|Rated Voltage:||240V||Rated Current:||6A-63A|
|Leakage Action Current:||30mA,100mA,300mA||Standard:||IEC61008-1|
|Warranty:||2 YEARS||Breaking Capability:||6KA|
|Type:||Residual Current,Mini,A,Electro-manetic Type,2PRCD||Material:||High Standard Plastic Silver Copper,Silver Contact,Flame Resistant Plastic,IP20|
|Application:||Short-circuit Protection,Electrical Power,earth Leakage Protection||Curve Type:||B/C|
residual current device,
residual current operated circuit breaker

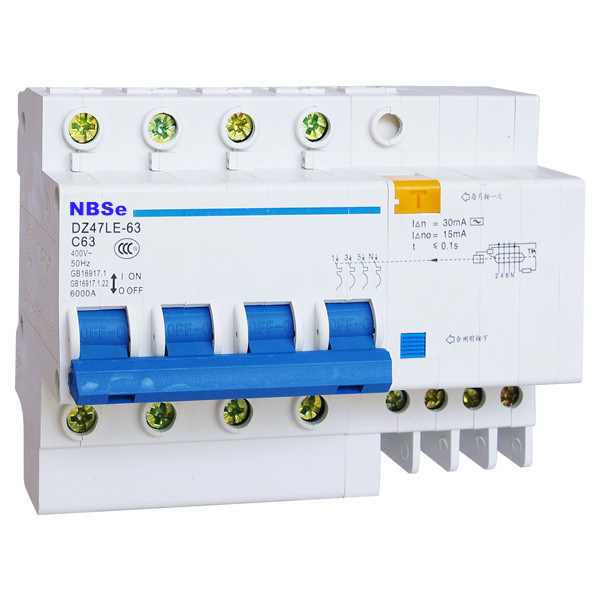

NBSe DZ47LE-32 DZ47LE-63 Combined Residual Current Device DPN 2P 3P TPN 4P 6A 10A 16A 25 32A 40A 50A 63A 30mA 100mA 300m
Electronic Type Rcbo
Residual current operated circuit breaker DZ47LE series residual current operated circuit breaker is applied to the circuit of AC 50Hz or 60Hz, rated voltage of single electrode two lines, two electrodes 230V, three electrodes four lines, four electrodes 400V, rated current up to 60A; when the human body has electric shock, or the electric leakage current exceeds the set value, residual current operated circuit breaker will quickly cut off the faulted power within a very short period of time failure to protect the personal safety and the safety of electrical equipments. The residual current operated circuit breaker has overload and short circuit protection function, which can be used to protect the overload and short circuit of the circuit or the motor, and can be used as a non frequent switching starting of the circuit under normal conditions.
Personnel and fire protection
Cable and line protection against overload and short-circuits
3. General rules for choosing RCBO:
a.Rated residual operating current
In ≤ 30 mA: additional protection in the case of direct contact In ≤300 mA: preventative fire protection in the case of ground fault currents
AC class - Tripping is ensured for sinusoidal, alternating currents, whether they be quickly applied or slowly increase.
C curve (5-10 In) protection and control of the circuits against overloads and short-circuits; protection for resistive and inductive loads with low inrush current.
D curve (10-14 In) protection and control of the circuits against overloads and short-circuits; protection for circuits which supply loads with high inrush current at the circuit closing (LV/LV transformers, breakdown lamps).
2. Technical Data
Q1: What's your product Range?
- Shell Unti-fire. nylon pa66 or not unti-fire.
- Parts, Copper or iron
- Point Sliver point or Copper point
Q2: Are you a manufacturer?
A. Yes, we are only produce the circuit breaker over 20 years from 1999.
Q3: Do you have stock products to sell?
A. No,we work on OEM orders, The means, material, quantity,packing solution,etc will depend on your requests.obviously, your logo can be printed on the products.
Q4. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q5. how's the delivery time ?
A. usually it will take about 30 days for 30000pcs
Q6. tell me the standard of package?
A. Normally are cartons, color box or white box
Q7. what kind of material of circuit breaker?
A. we have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the electrical life. Copper and silver is better and also higer price.
Q8. We want to know month capacity.
Q9. Where is your market?
A. Our products are popular in Western Europe, Middle-East, Afirca, South Asia ,South Ameirca countries and area. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q10. what kind of certificate you have ?
A. CE, CB,CCC,ISO9000.
Q11. Do you inspect the finished products
A.Yes.Each step of products will be inpected by QC department before shipping.
Q12. How are you ship the finished products?
- By Sea
- By plane
- By counties,TNT, DHL,FEDEX,UPS.etc.
