| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NBSe |
| Certification: | CE |
| Model Number: | TSM-S |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | Export carton |
| Delivery Time: | 10-15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20,000pcs per month |
| Place Of Origin:: | Zhejiang, China (Mainland) | Brand Name:: | NBSe |
|---|---|---|---|
| Protection Level:: | IP65 | Type: | Distribution Box |
| Body Material: | Fire-resistan ABS With PC Lid | Color:: | Gray/white |
| Mounting:: | Surfact Mount Type | Product Name: | Hot Selling Ip66 4 Way Weatherproof Abs Distribution Board |
| Rated Current: | Up To 100A | Product Fearture: | Modular Distribution Boxelectrical Distribution Box |
| High Light: | electrical distribution panel board,outdoor electrical distribution box |
||
NBSe The commonly used 3-4 way mcb metal power distribution block cabinet
Features
Compound structure, main compartment is of flameproof type connection compartment is of increased safety type.
Modular design, each circuit can be combined freely.
Built-in high breaking mini circuit breaker or molded case circuit breaker, can be controlled on-off via handle on enclosure.
With on indicating lamp.
With overload, short circuit protection, and leakage protection function can be made as per request.
Can be used for on-off in illumination circuit or power circuit or combination of illumination circuit and power circuit breaker.
Can be specially made as per request.
Steel pipe and cable wiring.
Advantages:
1. Fashionable design
2. Easy to open:can easily open the cover and easy installation.
3. Convenient installation: When install the Circuit breaker, can put the din rail support panel hung outside the flush boxes, not limit to the narrow space, make the installation more easy.
4. surface mounting type
6. Different ways 4-36 are available for choice.
Specification:

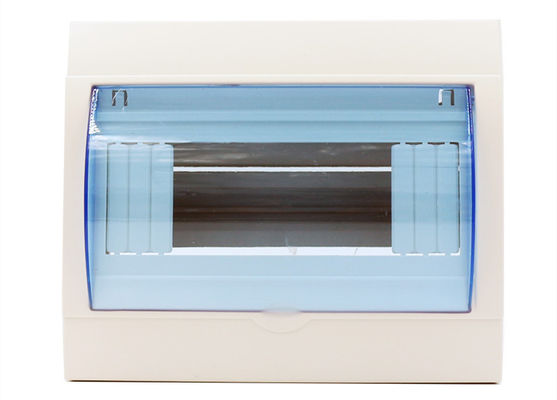

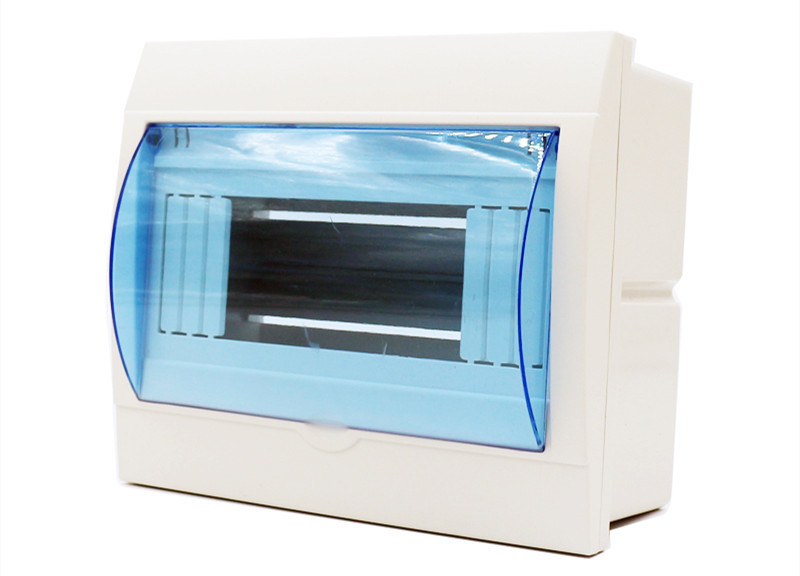

New Merlin TSM-S Surface Type Distribution Box(Electrical Distribution Box,Plastic Enclosure)
1. easy installation
2. Plast
Distribution Box
Type Distribution Box(Electrical Distribution Box,Plastic Enclosure)
Technical Parameter
| Model | Dimension (mm) | |
| Flush | Surface | |
| 4 ways | 130*140*80 | 140*160*80 |
| 7 ways | 195*190*80 | 210*210*80 |
| 10 ways | 248*190*80 | 255*210*80 |
| 13 ways | 305*190*80 | 322*210*80 |
| 15 ways | 340*190*80 | 360*210*80 |
| 18 ways | 393*190*80 | 416*210*80 |
| 20 ways | 430*210*80 | 450*230*80 |
| 26 ways | 298*350*80 | 325*375*80 |
| 30 ways | 340*350*80 | 360*375*80 |
| 36 ways | 390*350*80 | 415*375*80 |
Features
n Design of super-large and clear luminous bars, soft and elegant outline
n Humanized circuitry symbols, printed display of control circuit breaker, clear and elegant
