| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NBSE/OEM |
| Certification: | CE,CCC |
| Model Number: | N30LE |
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Export Carton |
| Delivery Time: | 10-20days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30,000pcs per month |
| Rated Frequency: | 50/60Hz | Rated Voltage: | 240V/415V |
|---|---|---|---|
| Rated Current: | 6A-30A | Leakage Action Current: | 30mA,100mA,300mA |
| Standard: | IEC61008-1 | Warranty: | 2 YEARS |
| Breaking Capability: | 6KA | Material: | Copper,High Standard Plastic Silver Copper,Silver Contact |
| Application: | Short-circuit Protection,earth Leakage Protection | Printing: | Standard Or Customized |
| Protection Degree: | IP 20 | ||
| High Light: | rcbo circuit breaker,residual current switch |
||

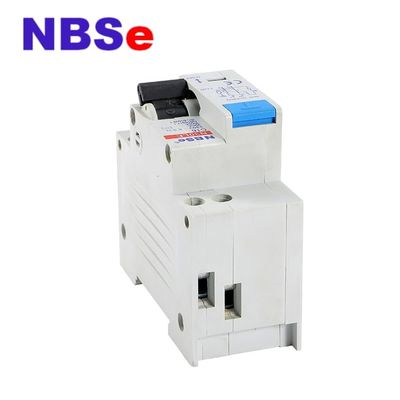

NBSe N30LE Series Residual Current Breaker With Overload Protection, rcbo circuit breaker
Application
N30LE-32 is used in the single phase circuit of AC 50Hz/60Hz, rated voltage 230V, used as electron shock protection. It can protect circuit form overload and short circuit. This product has advantages of small volume, high breaking capacity, live and zero wire are cut off at the same time, also protecting person from electric shock when the live wire connected opposite. It conforms with the standards of IEC61009.
Main Technical Parameter
| Type | N30LE-32 |
| Pole | 1P+N |
| Rated current (A) | 6,10,16,20,25,32 |
| Rated voltage(V) | 230 |
| Rated residual action current In(A) | 0.03 |
| Rated residual non-action current Ino(A) | 0.015 |
| Rated residual making/breaking capacity Im(A) | 500 |
| Type of instantaneous release | C |
| Rated making/breaking capacity Im(A) | 4500 |
Applicable conducting wire:
| Rated current(A) | Norminal cross section of wire mm2 |
| In ≤ 6 | 1 |
| 6< In ≤ 13 | 1.5 |
| 13 < In ≤ 20 | 2.5 |
| 20 < In ≤ 25 | 4 |
| 25 < In ≤ 32 | 6 |
Residual current breaking time
| In (A) | In (A) | Breaking time(s) when equals to rating following | ||||
| In | 2In | 5In | 5,10,20,50,100,200,500a(A) | Itb | ||
| 6-32 | 0.03 | 0.1 | 0.06 | 0.04 | 0.04 | 0.04 |
The over-current protection property
| Ambient Temperature | Initial Status | Test Current | Expected Result | Expected Result | Note |
| Cold position | 1.13In | t ≥ 1h | Non-release | - | |
| 30±2oC | Carried out immediately after previous test | 1.45In | t<1h | Release | - |
| Cold position | 2.55In | 1s < t < 60s | Release | Current smoothly rises to specified value within 5s | |
| -5~+40oC | Cold position | 5In | t ≥ 0.1s | Non-release | Type C |
| Cold position | 10In | t < 0.1s | Release | Type C |
Dimension
FAQ:
Q1: What's your product Range?
A.
- Shell Unti-fire. nylon pa66 or not unti-fire.
- Parts, Copper or iron
- Point Sliver point or Copper point
Q2: Are you a manufacturer?
A. Yes, we are only produce the circuit breaker over 20 years from 1999.
Q3: Do you have stock products to sell?
A. No,we work on OEM orders, The means, material, quantity,packing solution,etc will depend on your requests.obviously, your logo can be printed on the products.
Q4. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q5. how's the delivery time ?
A. usually it will take about 30 days for 30000pcs
Q6. tell me the standard of package?
A. Normally are cartons, color box or white box
Q7. what kind of material of circuit breaker?
A. we have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the electrical life. Copper and silver is better and also higer price.
Q8. We want to know month capacity.
A. 400,000pcs/month
Q9. Where is your market?
A. Our products are popular in Western Europe, Middle-East, Afirca, South Asia ,South Ameirca countries and area. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q10. what kind of certificate you have ?
A. CE, CB,CCC,ISO9000.
Q11. Do you inspect the finished products
A. Yes.Each step of products will be inpected by QC department before shipping.
Q12. How are you ship the finished products?
- By Sea
- By plane
- By counties,TNT, DHL,FEDEX,UPS.etc.
