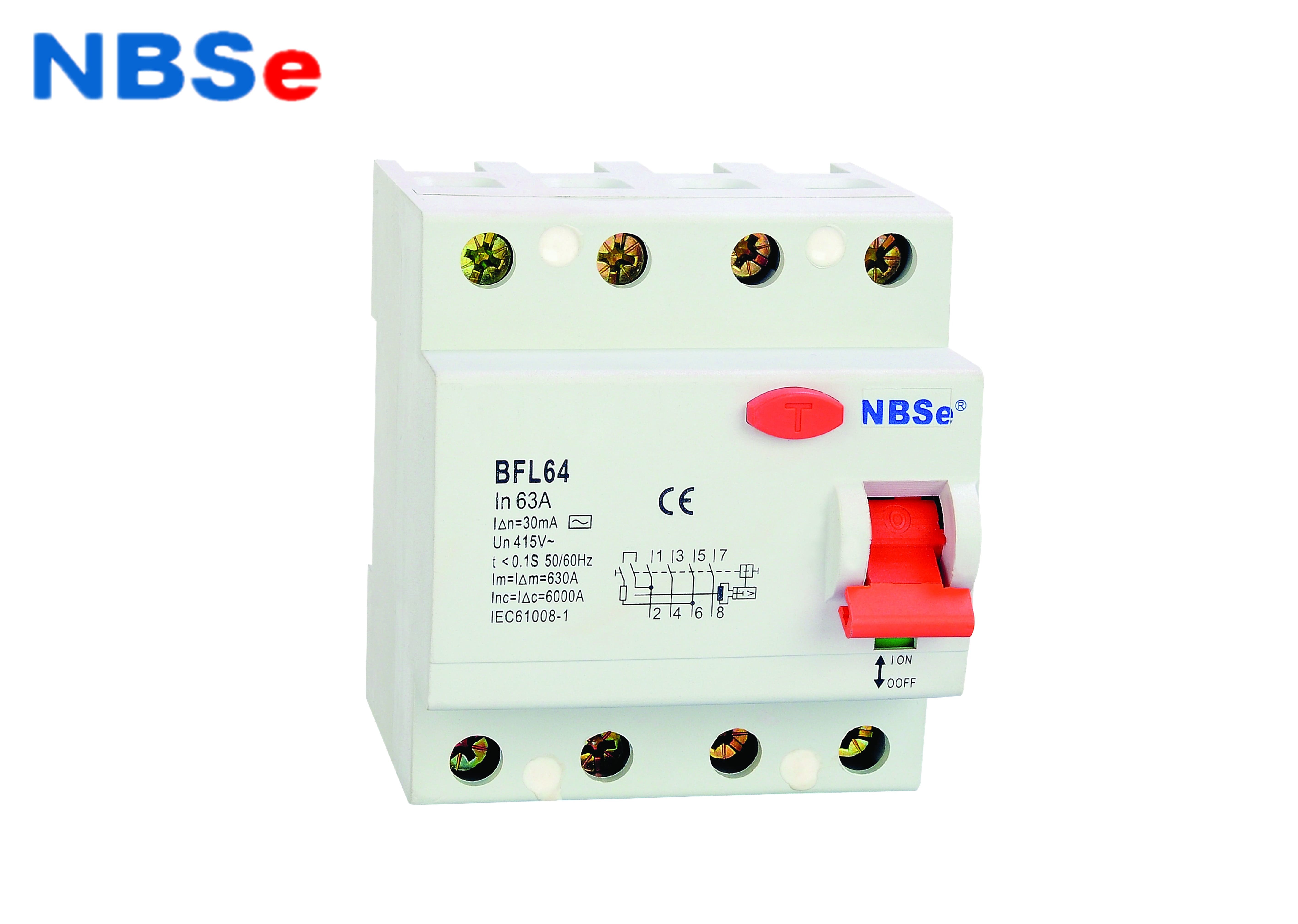

NBSe BFL Series Residual Current Circuit Breaker Electromagnetic Type RCD Protected

Basic Information
Place of Origin: CHINA
Brand Name: NBSE/OEM
Certification: CE,CB,CCC,RoHS,WEEE
Model Number: NBSL1-100
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Export Carton
Delivery Time: 10-20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30,000pcs per month
Detail Information
Poles Number: 1P+N,3P+N Rated Frequency: 50/60Hz
Rated Voltage: 240V/415V Rated Current: 100A
Leakage Action Current: 30mA,100mA,300mA Standard: IEC61008-1
Warranty: 2 YEARS Breaking Capability: 6KA
Type: Residual Current,Electro-manetic Type
High Light:

residual current device

,

differential switch circuit breaker


Product Description

NBSe BFL Series 2P 100A Residual Current Circuit Breaker,rcd protected circuits



1. APPLICATION



BFL series 2-pole differential protection switch, electromagnetic, for protection of people against insulation / derivation problems in electrical installations or elements. For use in domestic, tertiary and industrial sectors.
Made of fire resistant plastic material and high impact capacity.
Class of use "AC" and "A" (Immunized), and can be used in any installation and are especially recommended in the case of presence of distorted intensities due to the presence of harmonics and voltage peaks, that is why it is recommended, apart from the usual applications, their use in machinery and industrial electrical panels.
This type of differential is of electromagnetic operation, without auxiliary power supply, which allows not to lose the safety function in case of voltage supply variations or loss of the neutral conductor, only with the derivation in the active phase the differential shot. Being electromechanical, it provides a wide range of operating voltage (typical between 6 and 415V), which implies a high degree of immunity to variations in the input voltage, and likewise, the safety function is not lost before the power failure in the neutral.



2. TECHNICAL PARAMETER

- Manufacturer: NBSe Electric
- Type: BFL
- Type of operation: Electromagnetic.
- Operating voltage (Un): 230 Vac.
- Number of poles: 2.
- Calibres: 25-40-63 A.
- Sensitivity (IΔn): 30 and 300 mA.
- Cutting power (Icn): 6000 A.
- Intensity work / closure: 500 A. (In = 25 A, 40 A) or 10In (In = 63 A).
- Residual current connection power: 0.5IΔn ~ 1IΔn.
- Margin residual current disconnection: 0.5IΔn.
- Class and employment: Class A and AC.
- Electrical and mechanical life: ≥ 4000 operations.
- Direction time <0.1 sec.
- Temperature of work: -5ºC ~ 40ºC.
- Degree of humidity: must not exceed 50% at 40ºC / 90% at 25ºC
- Maximum installation length: 2000 m. above sea level.
- Normative: CE, IEC61008-1.
- Type of terminal: clamp tighten by screw.
- Tightening torque: 3 Nm.
- Degree of protection: IP-20.
- Weight: 260 gr.
- Dimensions in its individual packaging: 10x50x90 cm.



3. OPERATION PRINCIPLE FIG.

NBSe BFL Series Residual Current Circuit Breaker Electromagnetic Type RCD Protected 0






FAQ:
Q1: What's your product Range?
A.
- Shell Unti-fire. nylon pa66 or not unti-fire.
- Parts, Copper or iron
- Point Sliver point or Copper point

Q2: Are you a manufacturer?
A. Yes, we are only produce the circuit breaker over 20 years from 1999.

Q3: Do you have stock products to sell?
A. No,we work on OEM orders, The means, material, quantity,packing solution,etc will depend on your requests.obviously, your logo can be printed on the products.

Q4. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q5. how's the delivery time ?
A. usually it will take about 30 days for 30000pcs

Q6. tell me the standard of package?
A. Normally are cartons, color box or white box

Q7. what kind of material of circuit breaker?
A. we have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the electrical life. Copper and silver is better and also higer price.
Q8. We want to know month capacity.
A. 400,000pcs/month
Q9. Where is your market?
A. Our products are popular in Western Europe, Middle-East, Afirca, South Asia ,South Ameirca countries and area. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q10. what kind of certificate you have ?
A. CE, CB,CCC,ISO9000.

Q11. Do you inspect the finished products
A.Yes.Each step of products will be inpected by QC department before shipping.

Q12. How are you ship the finished products?
- By Sea
- By plane
- By counties,TNT, DHL,FEDEX,UPS.etc.
