|Place of Origin:||CHINA|
|Minimum Order Quantity:||100PCS|
|Packaging Details:||Export Carton|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30,000pcs per month|
|Poles Number:||2P||Rated Frequency:||50/60Hz|
|Rated Voltage:||240V/415V||Rated Current:||100A|
|Leakage Action Current:||30mA,100mA,300mA||Standard:||IEC61008-1|
|Warranty:||2 YEARS||Breaking Capability:||6KA/10KA|
|Type:||Residual Current,Mini,A,Electro-manetic Type||Product Name:||Residual Current Circuit Breaker,RCCB Circuit Breaker|
|Application:||Short-circuit Protection,Electrical Power,earth Leakage Protection||Printing:||Standard Or Customized|
residual current operated circuit breaker,
differential switch circuit breaker

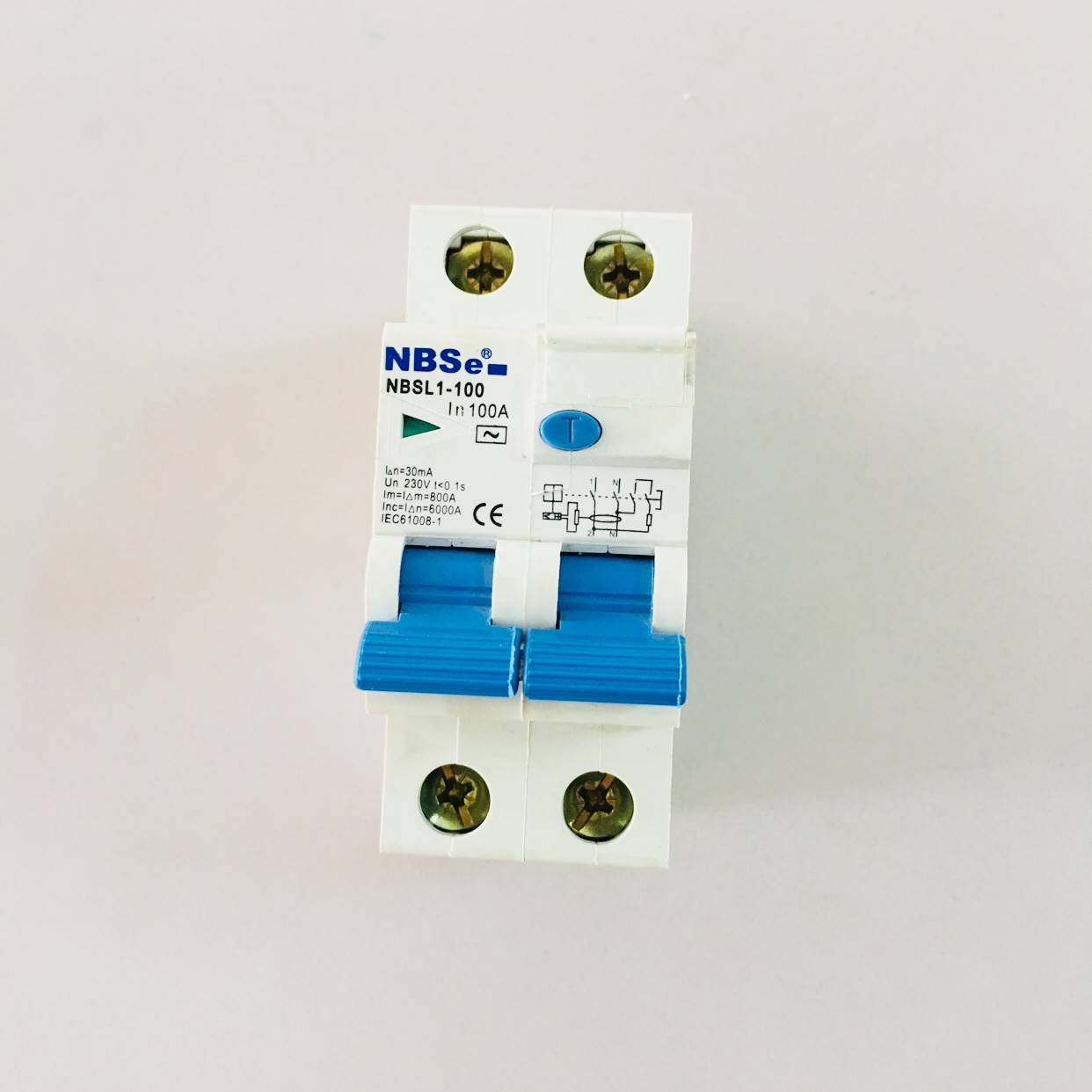

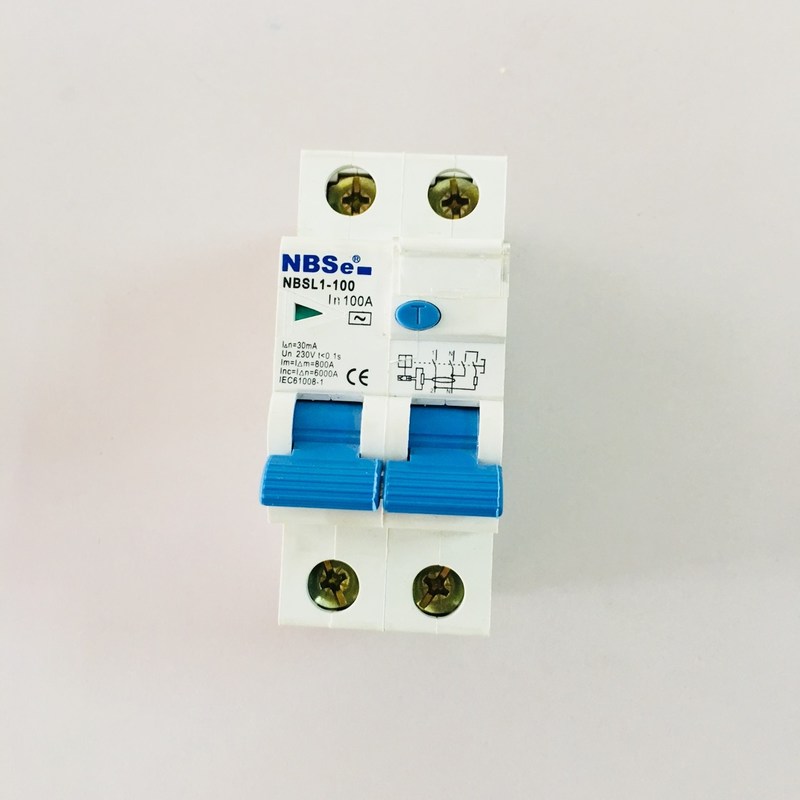

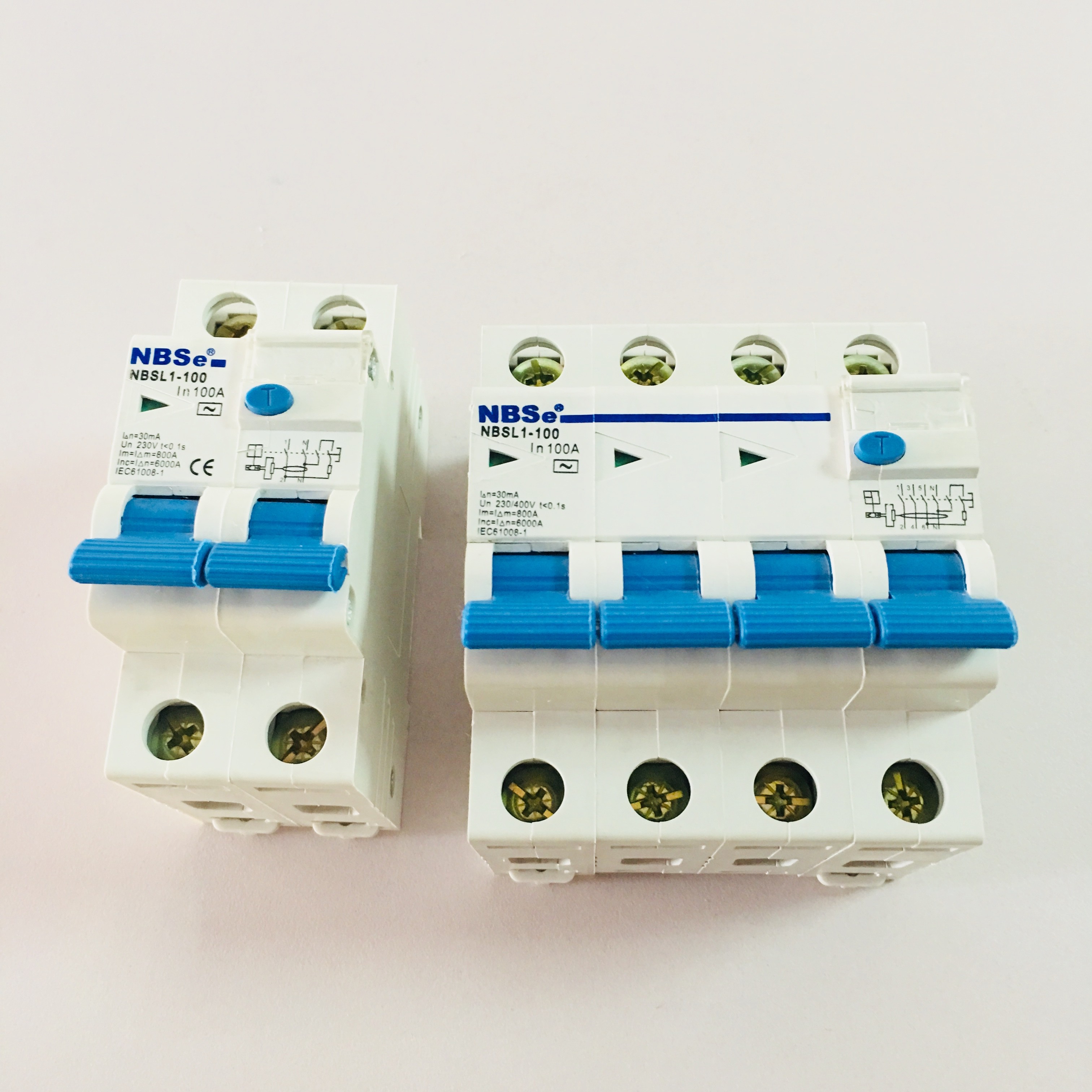

NBSe NBSL1-100 Series Residual Current Circuit Breaker,rcd residual current device
NBSL1-100 series residual current circuit breakers are applied to the lines with AC 50/60Hz,rated voltage of230V(1P+N) or 400V(3P+N),and rated current of 100A.In case of electric shock or electric leakage current exceeds the specified value, the residual current circuit breaker can switch off the fault circuit in a very short time, protecting the safety of person and electric equipment.
Can be used in the industrial, commercial, high-rise buildings, civil residences and other places.
2. TECHNICAL PARAMETER
|Rated Operating voltage(Ue)||230V(1P+N)/400V(3P+N)|
|Characteristic||A type, AC type, S type|
|Rated Insulation voltage(Ui)||500V|
|Rated residual current (IΔn)||10,30,100,300mA|
|Rated residual switching on and||800A|
|Rated residual short-circuit current||6000A|
|Rated short-circuit current limit(Inc)||6000A|
|Rated switching on and breaking capaity(Im)||800A|
|Maximun breaking time(IΔm)||0.3s|
|Rated impulse withstand voltage(Uimp)||6kV|
|Mechanical life(times)||＞10,000 times|
|Comply with Standard||IEC 61008|
|Certificate||CE, CB, RoHS,WEEE|
|Humidity||40℃ humidity notexceed 50% 20℃ humidity not exceed 90%|
(Condensation on the product due to
|Working Temperature||-5℃~+40℃ and its average over aperiod of 24h does not exceed|
|Magnetic field||No more than 5 times the geomagnetic field|
|Mounting and Wiring|
|Shock and vibration||Should be installed in the case of no obvious impact vibration|
|Terminal connection types||type cable,type U bus, TH 35mm Din-rail|
|Wiring terminal connection conductor||1.5～25 mm²|
|Wiring terminal copper size||25 mm²|
UsingTH35-7.5 profile installation, the title of
|Wiring incoming mode|
upper and lower incoming is possible for ELM type,
3. OPERATION PRINCIPLE FIG.
4. DIMENSION DIAGRAM
5. WORKING PRINCIPLE
